Workstation 8 mm Steel Worktop- Welding Worktable

Workstation 8 mm Steel Worktop- For Welding

Examples of use

• • Metalworking

  • Metal fabrication

Width: 1200, 1500 , 1800 , 2000 mm

Depth: 750 mm, 1000 mm

4 versions :

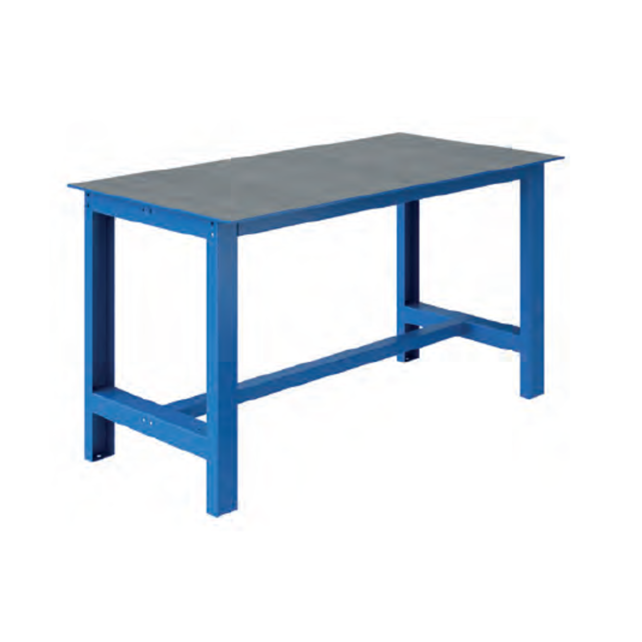

1. Fixed Height Height: 840 mm (For the Fixed Height Workbench)

2. Mechanically height adjustable version 780 mm -1080 mm MECH HEIGHT ADJ

3. Version adjustable in height by crank 790 mm -1090 mm HGT ADJ CRANK

4. Electrically height adjustable version HEIGHT ADJ. 730 mm - 1130 mm

The maximum admissible load uniformly distributed is 1500kg for the SI Fixed Height Workbench
The maximum admissible load uniformly distributed is 1000kg for the mechanical Adjustable in Height

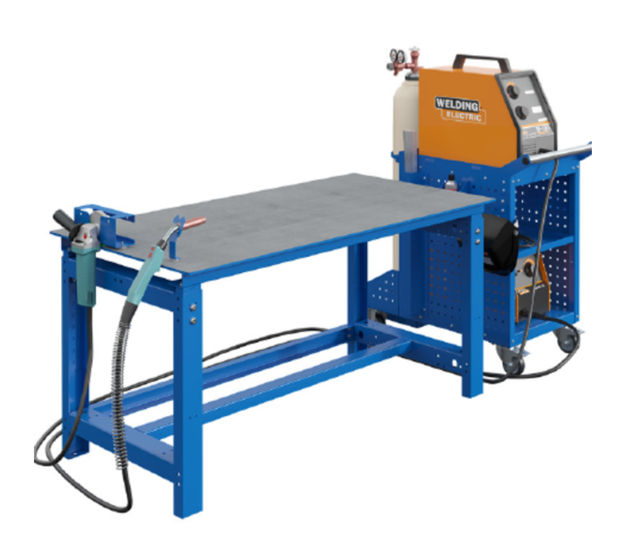

Accessories :

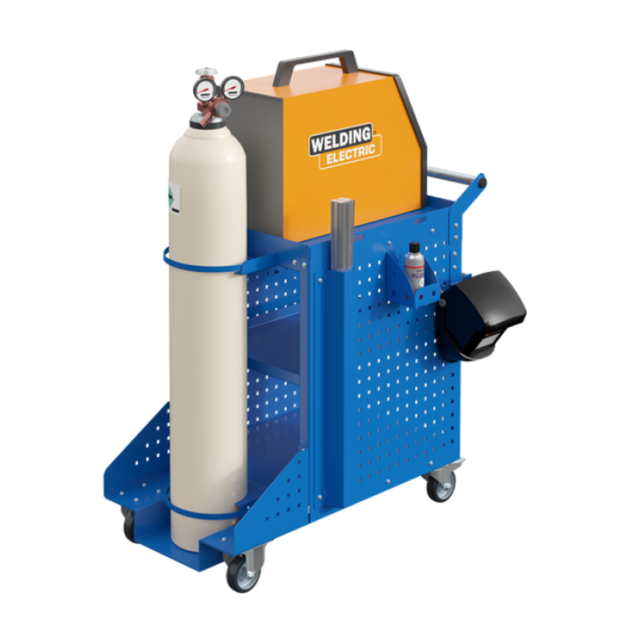

WELDING TROLLEY

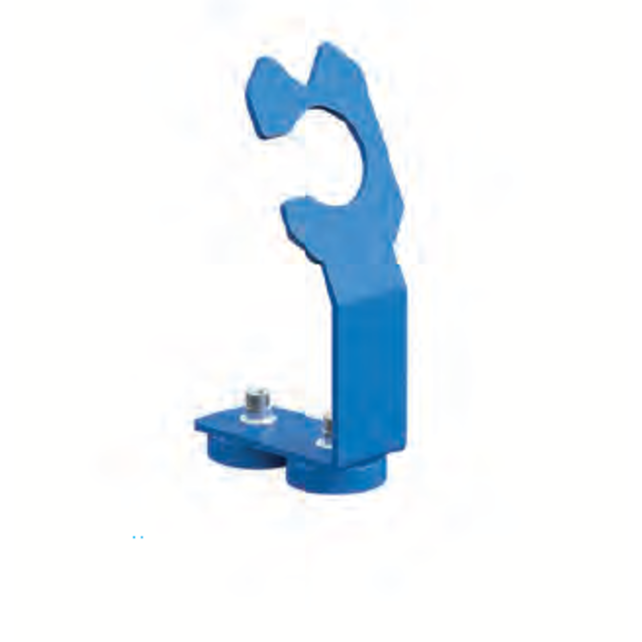

WELDING TORCH SUPPORT

GRINDER SUPPORT

Trader involved

Sheet metal worker / Welder / Structural metalworker / Assembler / Industrial pipe fitter / Brazer/ Welder/brazer / Shielded metal arc welder / Oxy-fuel welder / Gas metal arc welder / Electric arc welder/ Flame welder / Metal Active Gas (MAG) welder / Tungsten Inert Gas (TIG) welder / Metal Inert Gas (MIG) welder / Flux cored wire welder / Plasma and micro plasma welder

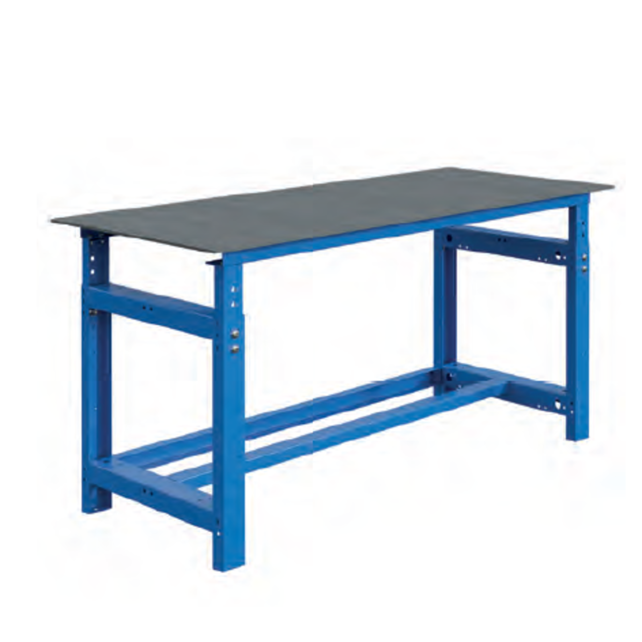

Workbench description:

Workbench is foreseen with a notch rail for mechanical height adjustment in steps of 40mm and clamping in place with screws and bolts. The setting stroke ranges from 740 to
1020 mm for the frame excluding the worktop thickness

• The frame consists of a structure of tubular steel thickness 20/10 and formed sheet steel thickness 25/10.

• The legs are made from 40 x 40 section welded tube, the horizontal cross-members formed into a U section 40 x 60 x 40 mm.

• The framework is finished in epoxy powder paint

• Color of the frame : black or bleu or light grey

Certification

The worktops are PEFC certified
The height adjustable frame can bear up to 1000Kgs
In compliance with NF XPD 65762

                                                                                                       Made in France
