Workshop FLUXO TROLLEY, STRUCTURE ONLY

Workshop FLUXO TROLLEY, STRUCTURE ONLY

The FLUXO trolley is designed with the principle of optimal modularity, starting with a structure that can accommodate various equipment. The combinations of equipment on the structure are modular and can be modified at any time for reconfiguration of the trolley.

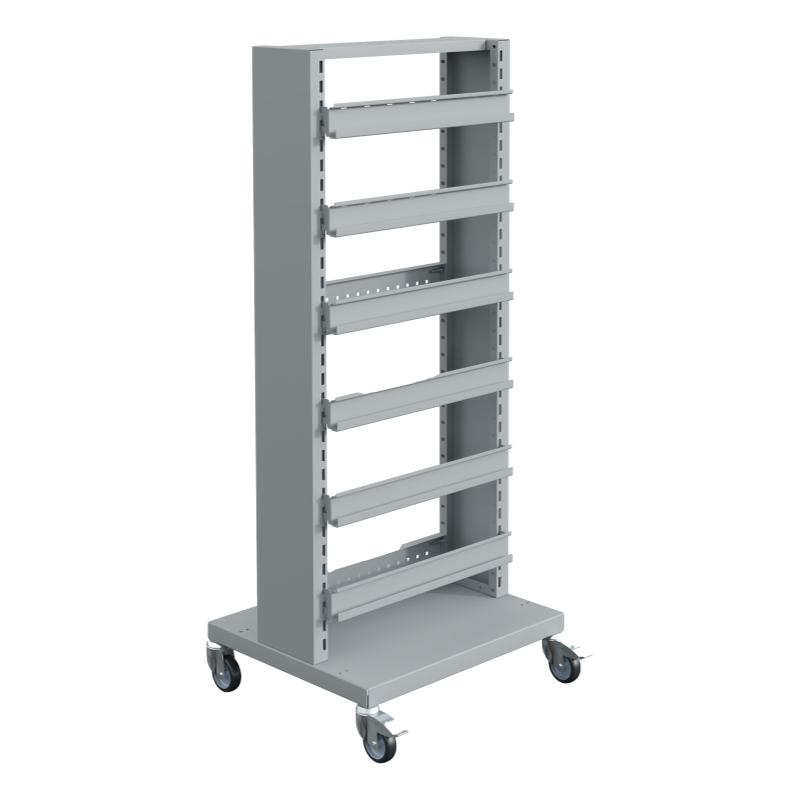

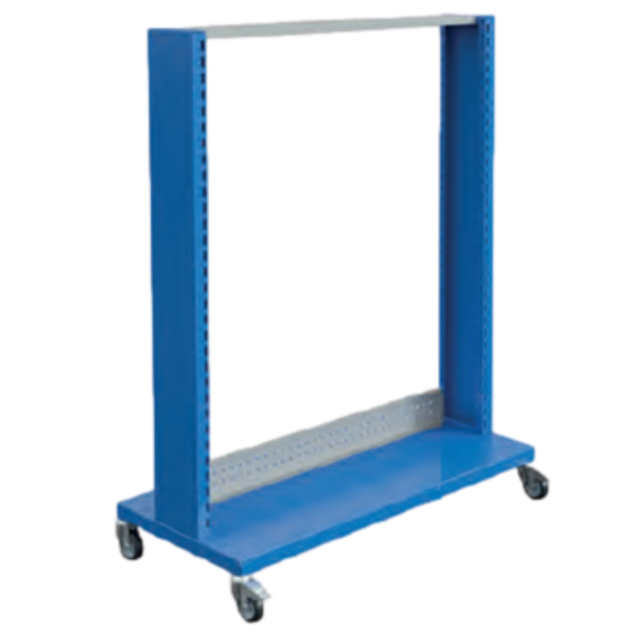

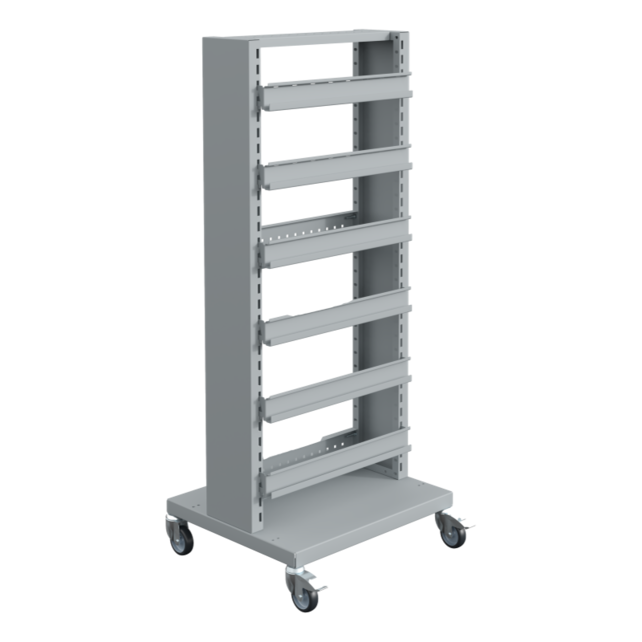

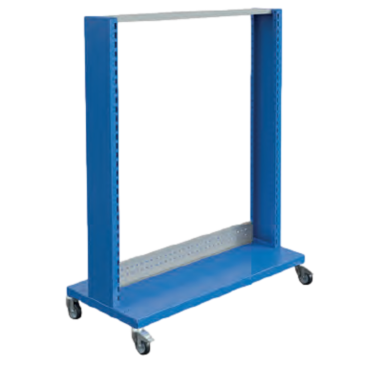

Structure only: the base is made from 25/10th thick folded sheet steel, with two uprights made from 12/10th thick folded sheet steel featuring 10x16mm perforations on the inner side and 30x10mm perforations on the front and rear faces, spaced at a 50mm pitch. The cross-member, available in light grey RAL 7035 only, is made from 12/10th thick folded sheet steel. The entire structure is assembled using screws. Equipped with 4 swivel castors, 2 of which with brake, diameter 100mm.Maximum load capacity: 200kg.
Finished with fine-textured structured epoxy powder paint, ovenpolymerised
at 180°C.

Option Color :

Industrial Blue 5015

Light Grey 7035

Dark Grey 7016

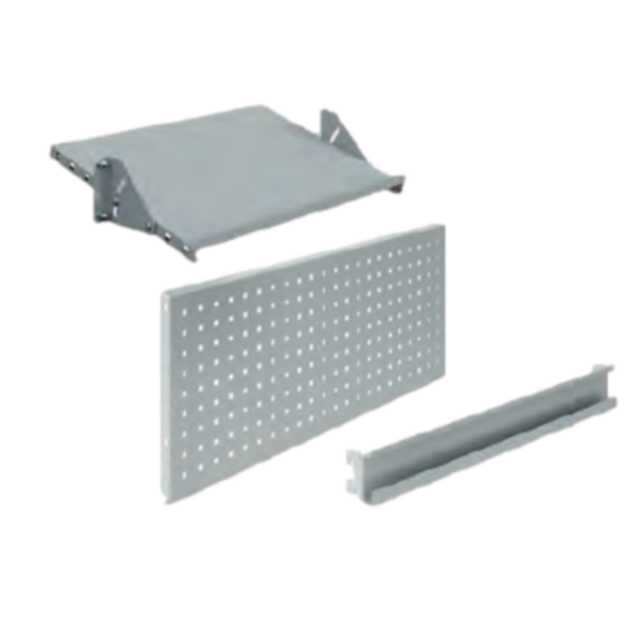

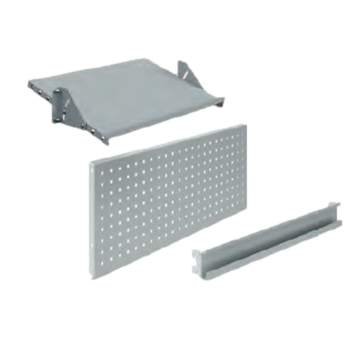

Option ACCESSORIES FOR FLUXO TROLLEY

Tilt and depth-adjustable shelf

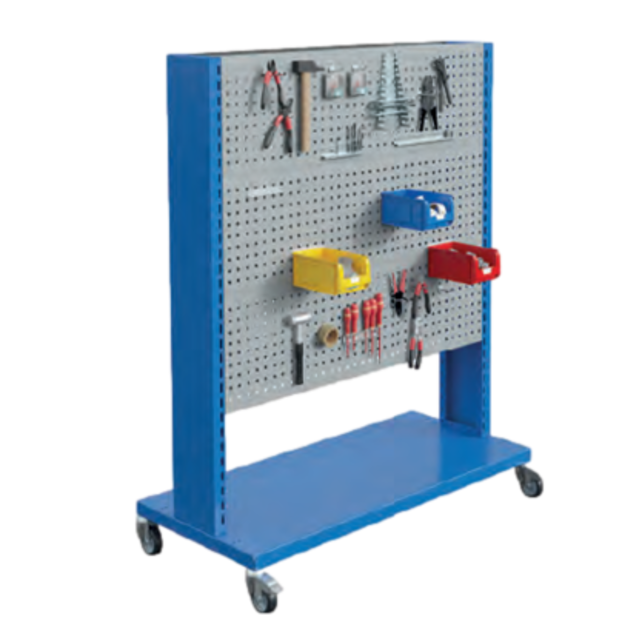

Perforated panel

Grab container support rail

Not all configurations are available online. However, a lot is possible on request.

Made in France
