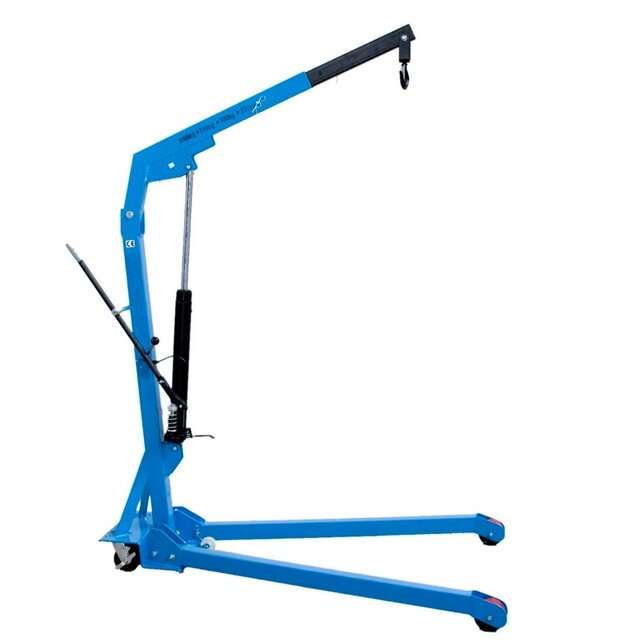

Workshop Crane Hydraulic Crane Lifting Up To 500Kg On Wheels

Workshop Crane Hydraulic Crane Lifting Up To 500Kg On Wheels

• Unique technology of quick lifting by double action pump
• Larger capacity than normal shop cranes at 3 position.
• Chrome plated lifting piston-rod and pump piston-rod.
• Relief valve to prevent overload.
• Forged heavy duty swivel hook.
• 25% overload testing before delivery.

Description

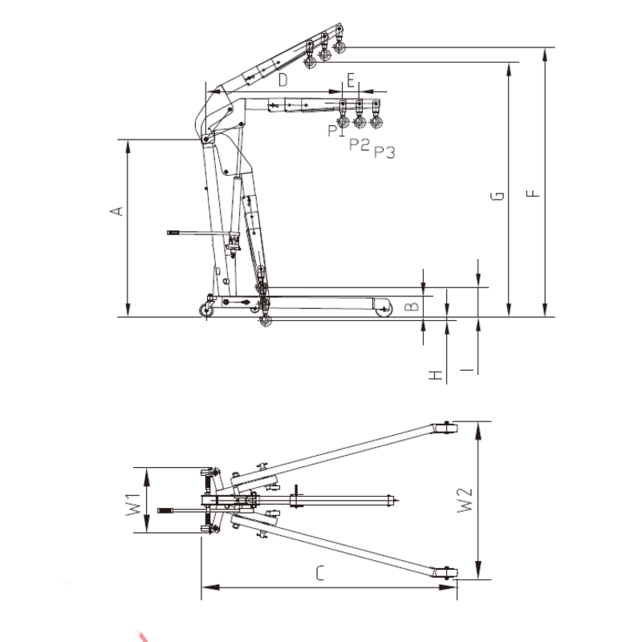

Rated lifting capacity P1/P2/P3 (Kg) : 500/ 425/ 350

A(mm) : 1354

B(mm) : 165

C(mm) : 1582

D(mm) : 897

E(mm) : 102

F(mm) : 2080

G(mm) : 1920

H(mm) : 130

I(mm) : 330

W1 (mm) : 470

W2(mm) : 960

Net Weight (Kg) : 75

Packing size (cm) : 156x50x65

Yellow RAL1028
