Workbench SI-Model 1000 Kg , ESD worktop 30 mm Mechanically Height Adjustable

Workbench SI-Model 1000 Kg , ESD worktop 30 mm Mechanically Height Adjustable

Depth: 750mm (1000mm on request)

The version of the SI workbench is foreseen with a notch rail for mechanical height adjustment in steps of 40mm and clamping in place with screws and bolts.

The ESD furniture we offer complies with the protected environment standard IEC 61340-5-1.

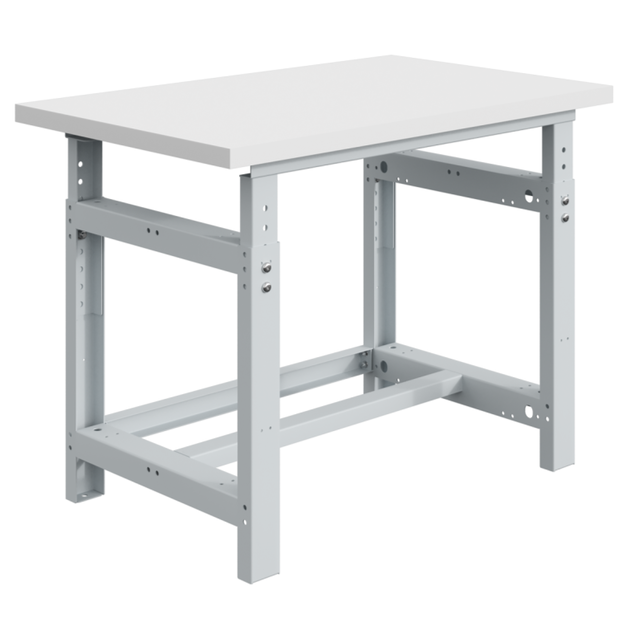

SI workbench with 30 mm laminated ESD worktop, straight edges, mechanically height adjustable from 770 to 1050 mm with load capacity up to 1000Kg

High-quality ergonomic design,

Create a safe and healthy workplace in an instant. Prevent health complaints due to incorrect work posture and accidents. Ergonomic workplaces help to achieve more efficiency and productivity.

Workplaces with attention to high-quality ergonomics that meet the highest requirements. Modern design and particularly robust. Sustainably produced in France.

Choice :  Frame Color ESD Antistatic RAL 7035 ESD

Light grey RAL7035

Additional info

Worktops: ESD worktops are constructed from laminated panels infused with carbon to facilitate the circulation and discharge of static electricity.
Painting: A specialized, semi-conductive paint (RAL 7035, other colors available upon request) also infused with carbon, ensures the discharge of static electricity.
Connection Elements: Electrical braiding or grounding kits for equipment or personnel are employed to complete the discharge process. Specific jacks or castors are utilized to ground the furniture and/or seats.
Isolation Elements: Certain components, however, require insulation. Insulating foam kits are employed to achieve this by interrupting the flow of electrostatic current.

• ESD ANTISTATIC laminate 30 mm thick

Heat resistant up to 180 ° C, scratch resistant, wear resistant, fire resistance

Surface resistance with grounding: 1 × 104 to 9 × 105 Ohm Surface resistance: 1 × 105 to 9 × 106 Ohm / Cross-sectional resistance: 1 × 105 to 9 × 106 Ohm / Meets NF standard

EN 61340 S-1 / Electrostatic connection is located underneath the earth basin to dissipate static electricity

Common applications: Electronics, electromechanics, IT, metrology

 OPTIONS:

Suspended drawer units and floor-based cabinets Drawer unit color: Light grey RAL 7035

Dimensions drawer cabinets with drawers

• 1 drawer H150: 46 x 60 x 22 cm

• 2 drawers H150: 46 x 60 x 37 cm

• 3 drawers H150: 46 x 60 x 52 cm

• 1 drawer H75 + 4 drawers H150

ESD Kit

The SI-model work tables or work benches can also be equipped with a galvanized shelf, which serves as an extension for storing tools, footstool, etc.

Not all dimensions, table top options and frame colors are available online. However, a lot is possible on request.

Made in France
