Flexible Fluid Storage WinBag from 100 to 350 cubic meter

Flexible and temporary storage system of fluids

WinBag from 100 to 350 cubic meter

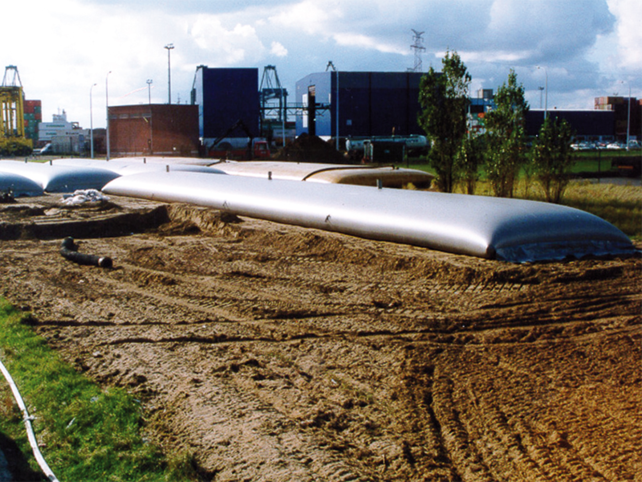

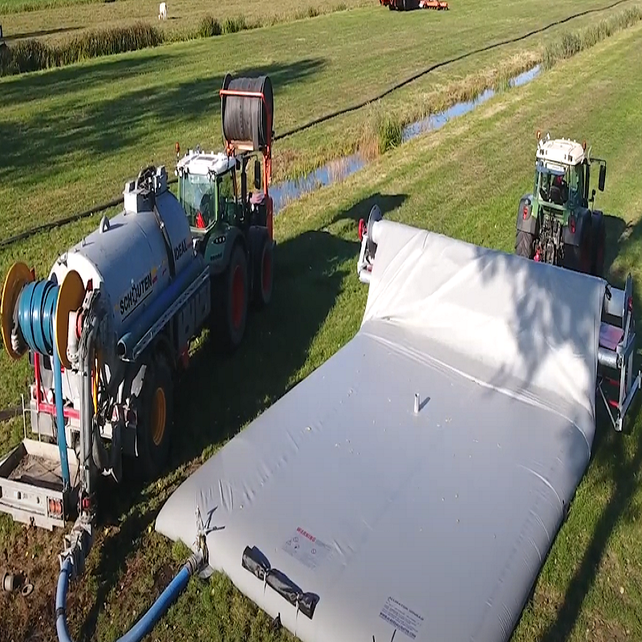

Foldable, flexible and storage facility for mixed slurry or non-aggressive liquids that you need It enables the quick installation and removal of 100 m³ to 350 m³ liquid storage.

Descriptions:

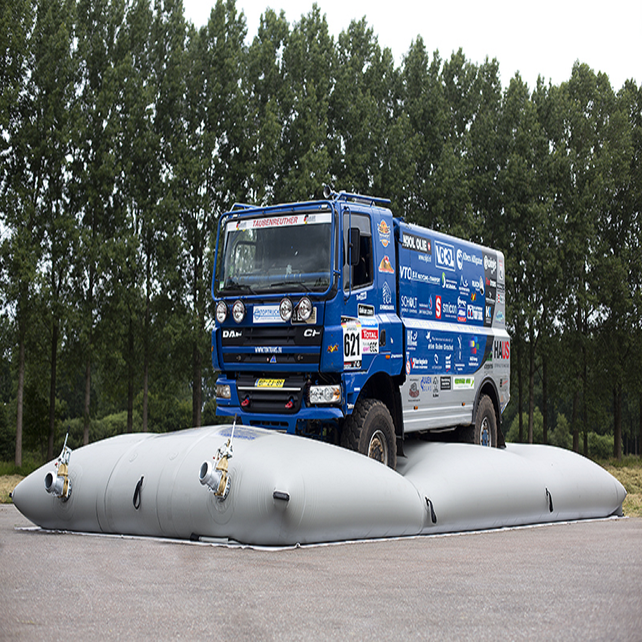

• Strong product consist of double coated polyester fabric, very strong material with a high pulling resistance.

• It is high frequency welded

• Can be used on any flat surface.

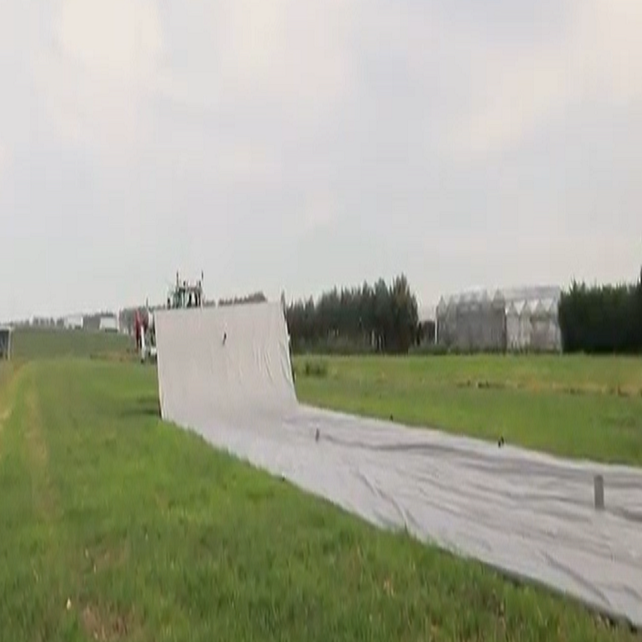

• Can be fully emptied by simply rolling it up

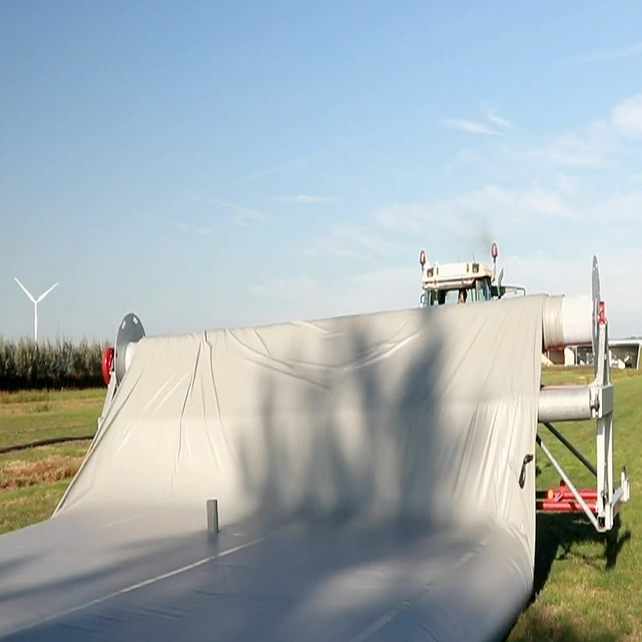

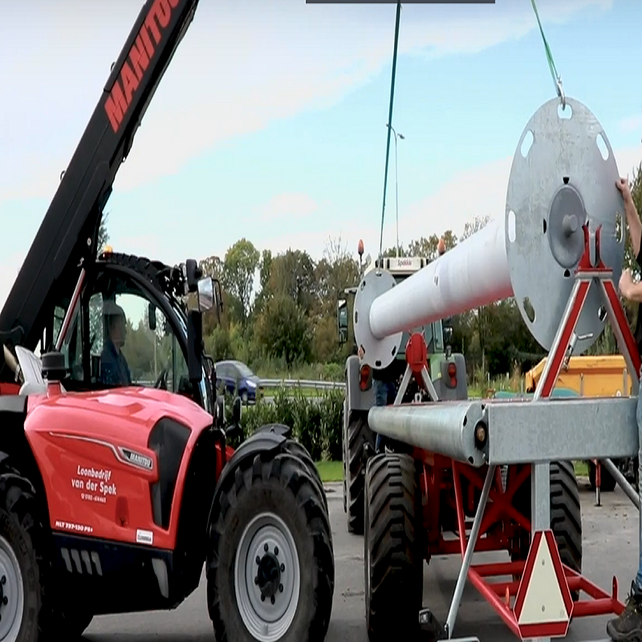

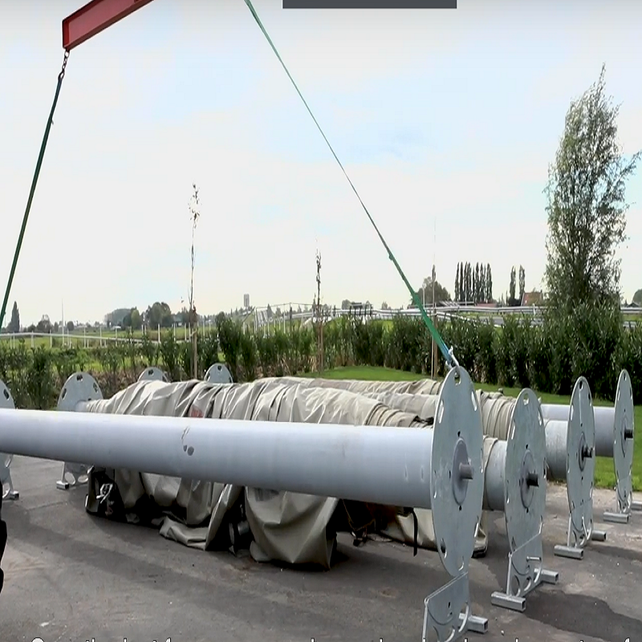

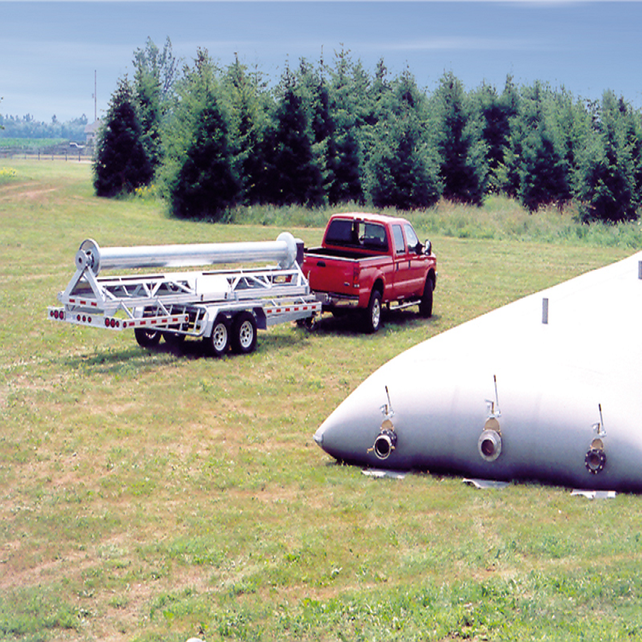

• Can easily be move around with a WINSYSTEM -roll up system.

• Easy to handle and to clean up

• Available with various connections.

• Has been awarded quality certificate and warranty certificate.

Specifications:

• Made of two-sided PVC coated polyester fabric,

  (1100 gr/m², 0,9 mm., 4200 N/50 mm.) material is certified by KIWA (K 5111).

• All seams are high frequency welded. Production certified by KIWA (K 5114).

• Employees are VCA certified

• Capacity 100 – 350 m3 Max. filling height 1,25 m. (for fluids 1000 kg/m3)

• Equipped with 7 or 9 reeling belts.

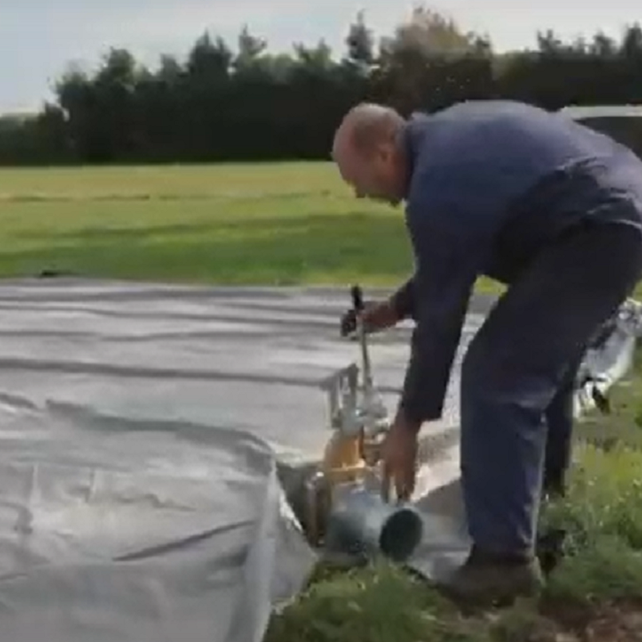

• 2 x 6” connectors with gate valves and 6” Perrot KKV parts..

• Venting pipes on top (total number depending on size of Winbag)

Available sizes:

Options:

• Protection belt

• valves or tabs in almost any size

• Multiple valves and tabs

• Repair set

The WinBag is delivered with:

• Two 6” Perrot KKV connections. Almost every other connection is possible on request.

• Ventilation point on top

• English Manual of the tank

If you choose to purchase the WinBag we can provide you with reliable advice on installation, use, emptying, cleaning and rolling up of the WinBag after use.

(quotation upon request)

KIWA CERTIFICATES

Made in the EU
