Traffic barrier COLUMN PROTECTOR

Collision Protection COLUMN PROTECTION  DELTA 1050x1050x1216mm

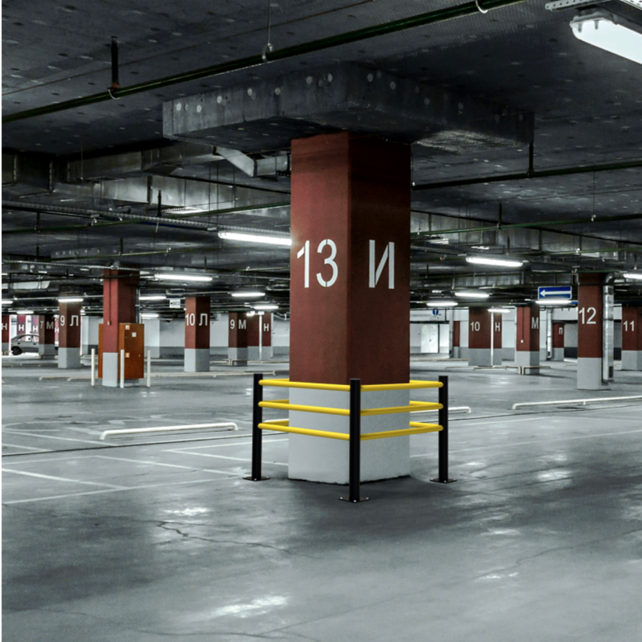

Protect columns easily, quickly and cost-effectively.

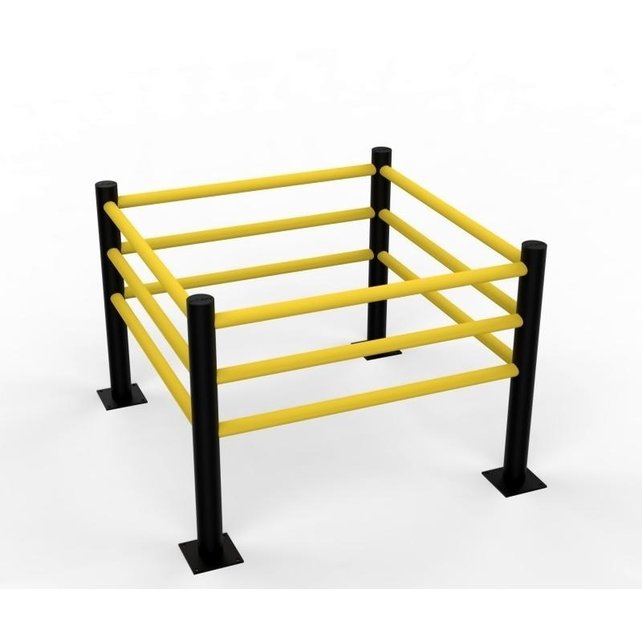

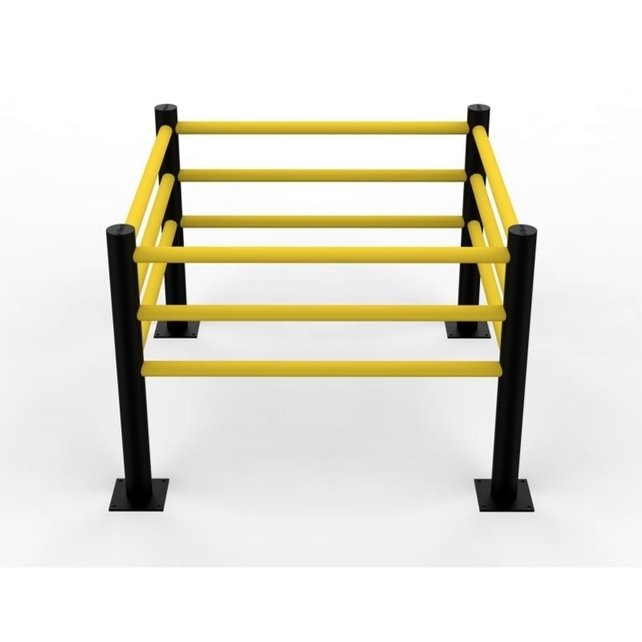

Collision protection COLUMN PROTECTION d-flexx with 3 crash barriers, modular, height 1200 mm, made of special flexible material,

post Ø 110 mm and base plate 225 x 225 mm.

Possible types of column protection DELTA:

SBDFFS-C2-600: (W) 1050x1050x1216mm

SBDFFS-C4-1305: (W) 1755 x (L) 1755 x (H) 1216 mm

Including mounting material: Concrete screw anchors M10 x 70 mm

• Material Polyethylene

• Total length (mm) 1050

• Overall width (mm) 1050

• Overall height (mm) 1216

• Net weight (kg) 18.5

• Length without base plate (mm) 935

• Width without base plate (mm) 935

• Color yellow - black

• Foot plate length (mm) 225

• Foot plate width (mm) 225

• Foot plate height (mm) 10

• Foot plate color black

• Application area indoors and outdoors

• Installation site paved ground

• Mounting bolts

• Number of mounting holes 16

• Tested to withstand force (Joule) 2,500 J

• Vehicle weight equivalent (kg) 2,000 kg

• Vehicle equivalent speed (km/h) 5.7 km/h

• Equivalent impact angle 90°

• Deformation under maximum force (mm) 250

• Chemical resistance high ISO/TR 10358

• Temperature range -10° to +50°

• CO2 / m³ 18.5 kg

• Recyclability 100%

• Warranty 5 years

Protect columns easily, quickly and cost-effectively. Innovative and economical protection of columns with the flexible plastic impact protectors from d-flexx. Thanks to the modular system, a tailor-made solution can always be delivered
through individual cuttings. Fast delivery within 1-2 days. Easy installation.

• Customization option

Do you have any questions or are you interested in a quote? We are happy to offer you support. You can email us at [email protected] or reach us at 0543554679. In order to provide you with the best support, we ask that you send drawings / photos / information about your project.
