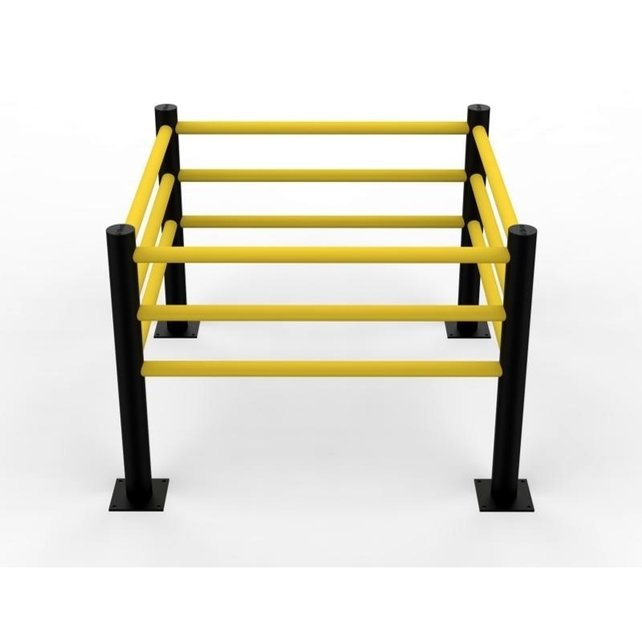

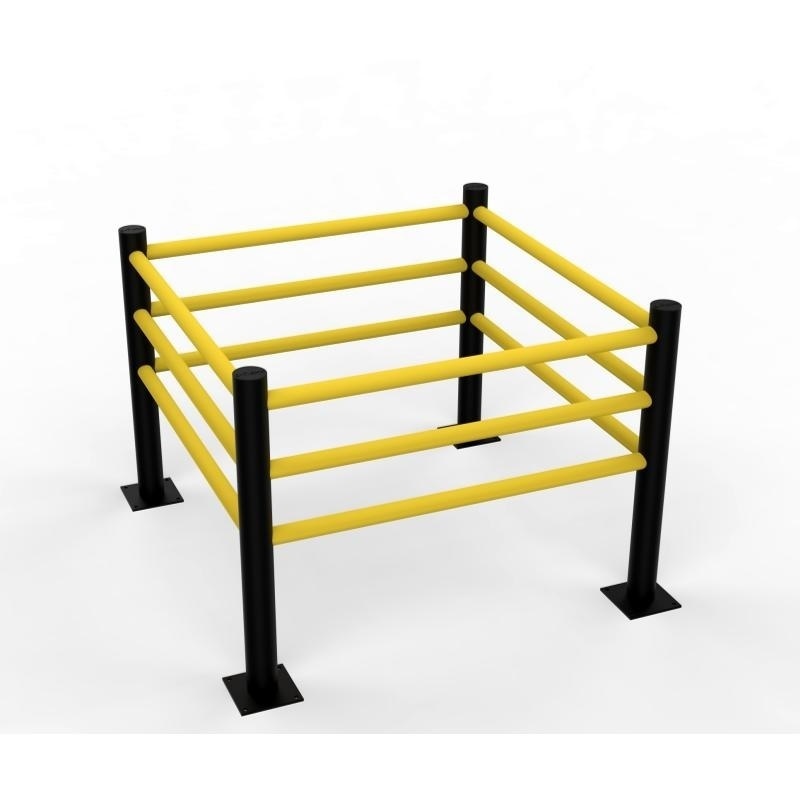

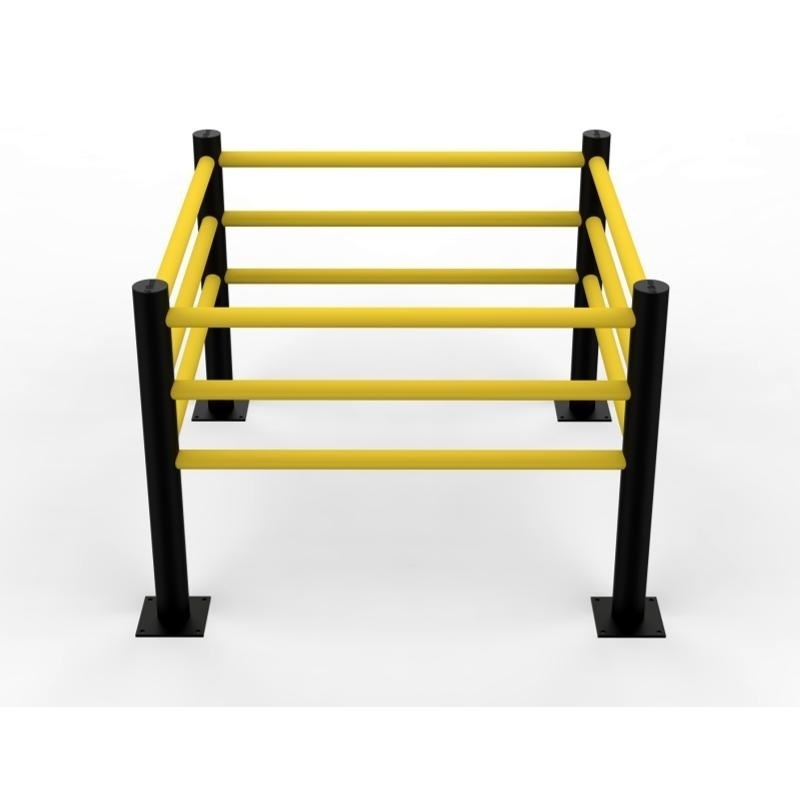

Collision Protection COLUMN PROTECTION 1050x1050x1216mm

Including mounting material: Concrete screw anchors M10 x 70 mm

• Including mounting material: Concrete screw anchors M10 x 70 mm

  • Material Polyethylene

  • Total length (mm) 1050

  • Overall width (mm) 1050

  • Overall height (mm) 1216

  • Net weight (kg) 18.5

  • Length without base plate (mm) 935

  • Width without base plate (mm) 935

  • Color yellow - black

  • Foot plate length (mm) 225

  • Foot plate width (mm) 225

  • Foot plate height (mm) 10

  • Foot plate color black

  • Application area indoors and outdoors

  • Installation site paved ground

  • Mounting bolts

  • Number of mounting holes 16

  • Tested to withstand force (Joule) 2,500 J

  • Vehicle weight equivalent (kg) 2,000 kg

  • Vehicle equivalent speed (km/h) 5.7 km/h

  • Equivalent impact angle 90°

  • Deformation under maximum force (mm) 250

  • Chemical resistance high ISO/TR 10358

  • Temperature range -10° to +50°

  • CO2 / m³ 18.5 kg

  • Recyclability 100%

  • Warranty 5 years

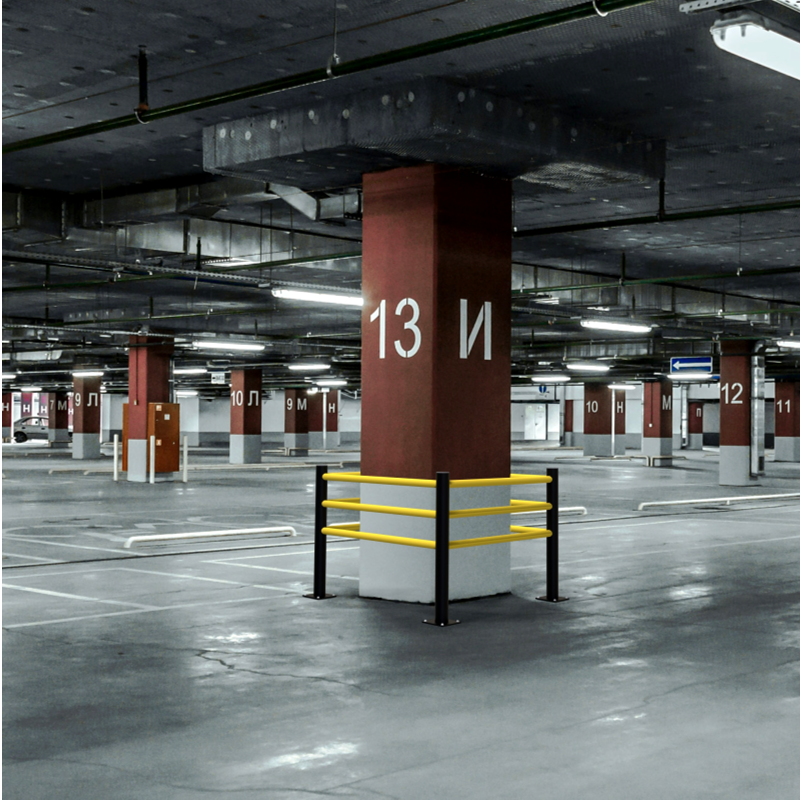

Protect columns easily, quickly and cost-effectively. Innovative and economical protection of columns with the flexible plastic impact protectors from d-flexx. Thanks to the modular system, a tailor-made solution can always be delivered
through individual cuttings. Fast delivery within 1-2 days. Easy installation.

• Customization option

Do you have any questions or are you interested in a quote? We are happy to offer you support. You can email us at [email protected] or reach us at 0543554679. In order to provide you with the best support, we ask that you send drawings / photos / information about your project.
