Bollard Heavy duty Traffic barrier ø 200mm from Polyethylene

Traffic barrier bollard made of heavy duty material

The Bollards "Bravo" are available in height of 516 mm, 760 mm and 1200 mm.

Easy, fast and cost effective. "Bravo" absorbs the impact energy. The processed special material does not damage the bollard and the vehicle.

• Material: Polyethylene

• Width (mm): 225

• Depth/Length (mm): 225

• Diameter (mm): 200

• Width without foot plate (mm): 225

• Depth without foot plate (mm): 225

• Colour: yellow - black

• Foot plate width (mm): 225

• Foot plate depth (mm): 225

• Foot plate height (mm): 10

• Foot plate colour: black

• Area of application: indoor and outdoor use

• Mounting location: paved ground

• Mounting: bolting

• Delivery is: pre-assembled

• Number of mounting holes: 4

• Fixing included: Concrete screw anchors M12 x 80 mm

• Tested to withstand force (Joule): 2.000 J

• Vehicle weight equivalent (kg): 2.000 kg

• Vehicle equivalent speed (km/h): 5,1 km/h

• Equivalent angle of impact: 90°

• Deformation under maximal force (mm): 250

• Chemical Resistance: high-ISO/TR 10358

• Temperature Range: -10° up to +50°

• CO2 / m³: 18,5 kg

• Recyclability: 100%

• Warranty: 5 years

• Made in Germany

Easy, fast and cost effective. "Bravo" absorbs the impact energy. The processed special material does not damage the bollard and the vehicle.

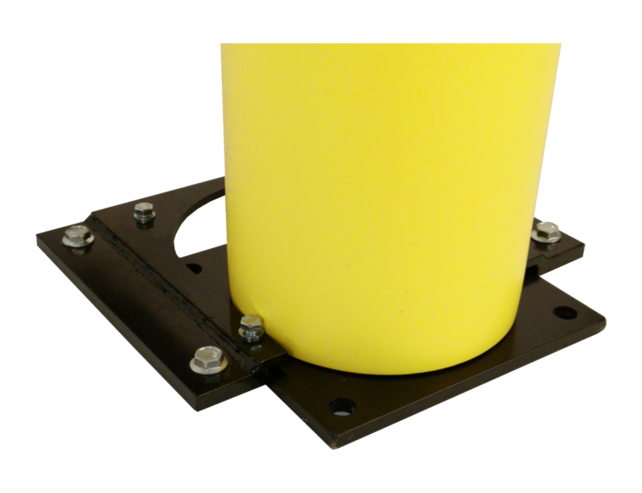

Optional: Steel adapter for ground plate of diameter 200 mm post, black, 330 x 240 mm, height 21 mm, for taking in a foot plate of 225 x 225 mm for temporary removal of the bollard

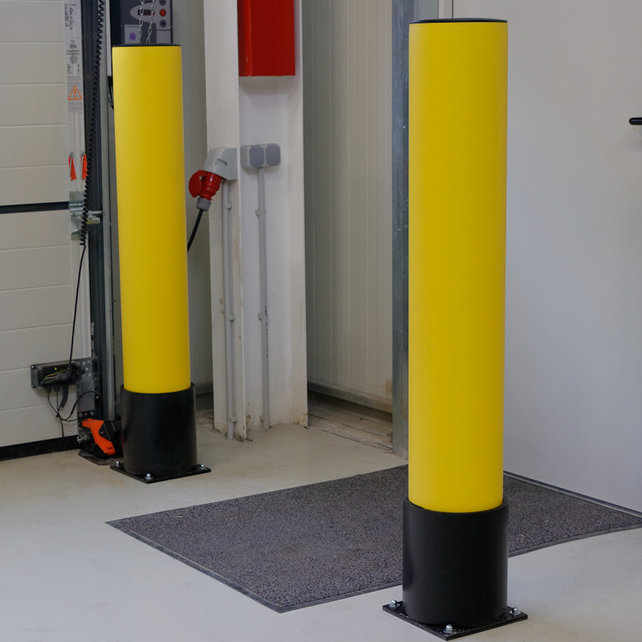

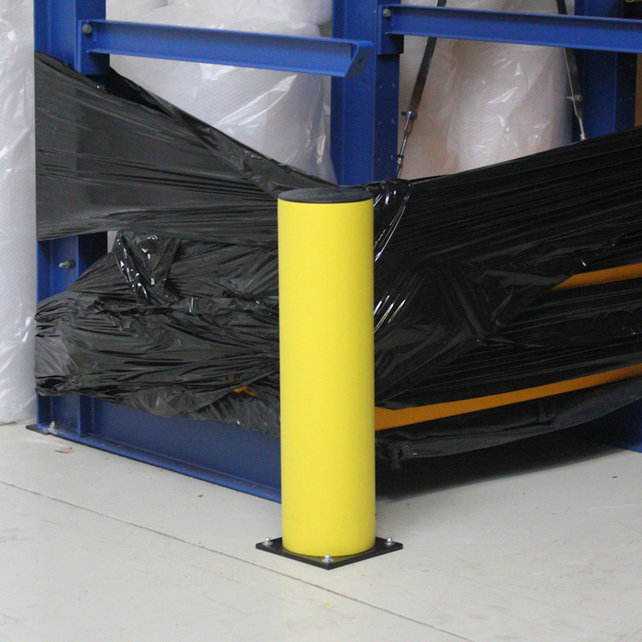

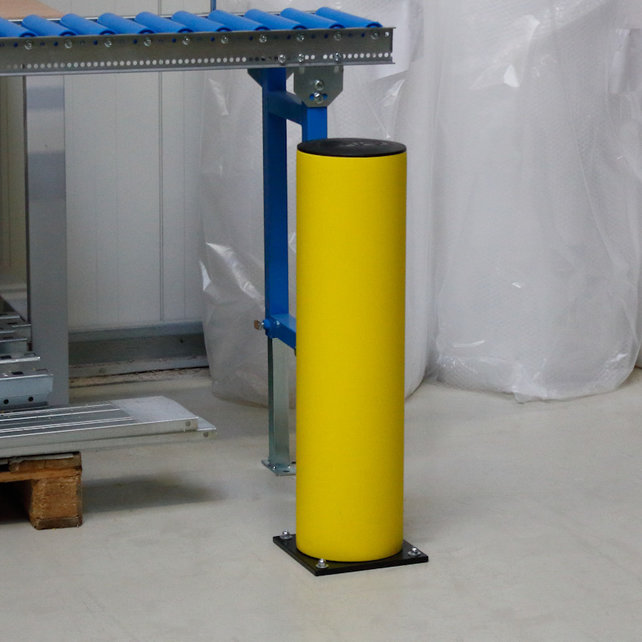

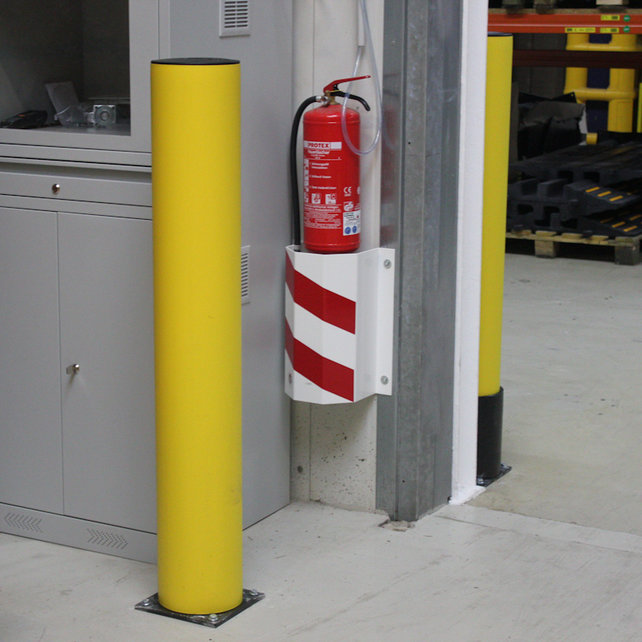

Due to its robustness and high visibility, the bollard is ideal for being installed in car parks, entrances and for separation or pedestrian areas.

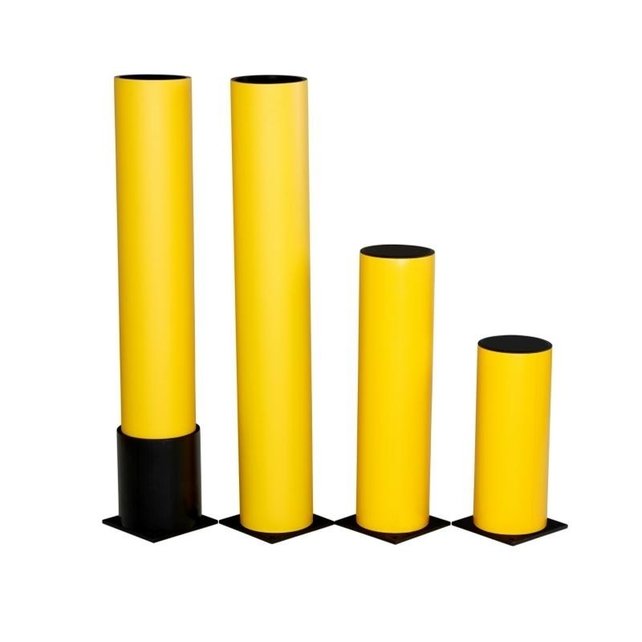

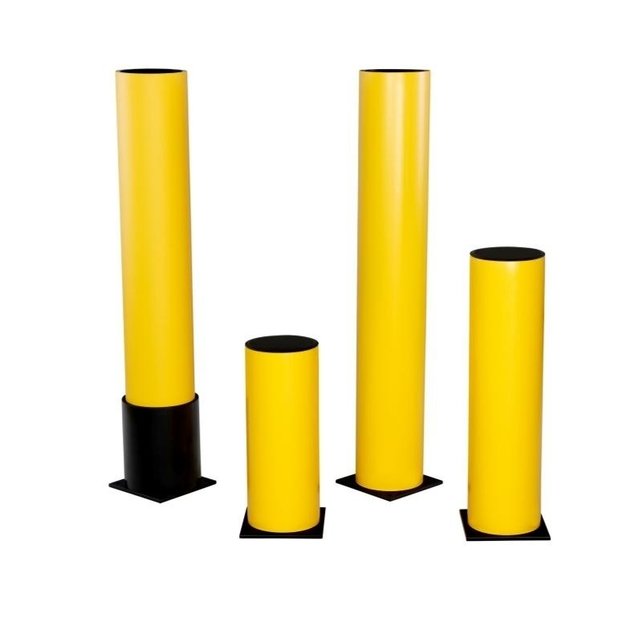

Products BRAVO (including anchors and fixing material):

SBDFBO50-40: height 500 mm, diameter 200 mm, base plate 225 x 225 mm

SBDFBO50-20: height 750 mm, diameter 200 mm, base plate 225 x 225 mm

SBDFBO50-10: height 1200 mm, diameter 200 mm, base plate 225 x 225 mm

SBDFBO50-30: height 1200 mm, diameter 225 mm, base plate 225 x 225 mm, with moveable cuff

Innovative and economic bollard made of the flexible impact protectors by d-flexx. Easy installation, fixing material included.
