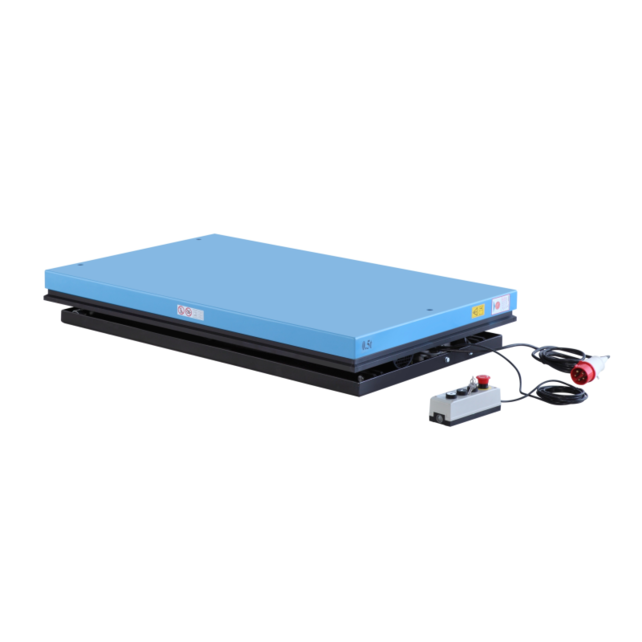

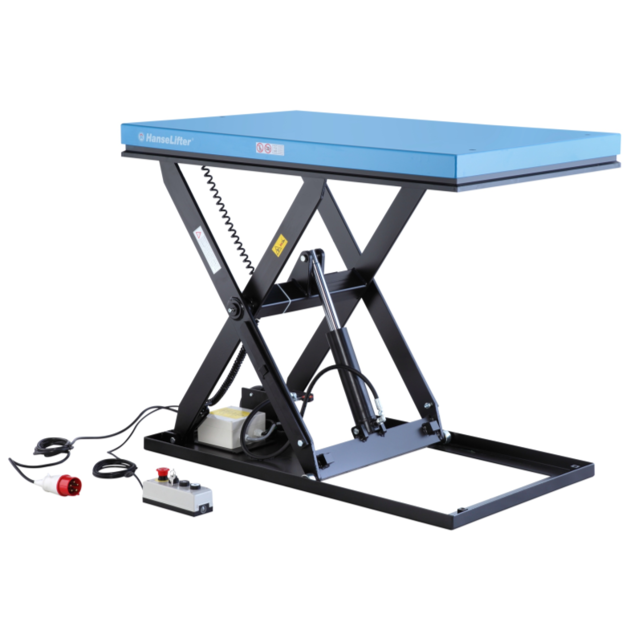

Stationary Lifting Table 4000 Kg -Electric Platform 2000 mm x1200 mm
AED 23,095.00 AED
Salesbridges
Stationary Lifting Table 4000 Kg -Electric Platform 2000 mm x1200 mm
AED 23,095.00
Excl. tax
AED 24,249.75
Incl. tax
Electric Platform 2000x1200 mm, Stroke range: 240-1050 mm, Lifting Load up to 4000 Kg, All-round platform protection, External control panel.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Product description
Stationary Lifting Table 4000 Kg -Electric Platform 2000 mm x1200 mm
Feature:
- Maintenance free pivot bushings.
- Large safety clearance between the scissors to avoid injuries.
- Lift cylinder with internal drainage.
- Safety valve to ensure safety in case of a hose burst.
- Moveable limit switch for adjusting full raised stop.
- 4 end-stops, incl. 4 loops which can be used e.g. when lifting total lift table into a pit.
- Low-noise power pack with built-in overload valve.
- Cable for 3-phase 380V/16Ah*.
- Approves to EN1570-1.
Technical specifications | Lift table
SBHW1004 |
|
---|---|---|
Load capacity | kg | 4000 |
Lifting height | mm | 240-1050 |
Stroke length | mm | 810 |
Platform size (LxW) | mm | 2000x1200 |
Base frame size (LxW) | mm | 1600x930 |
Lifting time to max height | s | 20-25 |
lift motor | kW | 380V / 50HZ 2,2kW |
3-Phase (380V/16Amp) |
||
own weight | kg | 405 |
Product information
Brand | Salesbridges |
Article code | SBHW4002 |
SKU | SBHW4002 |
EAN | 9504876632620 |
