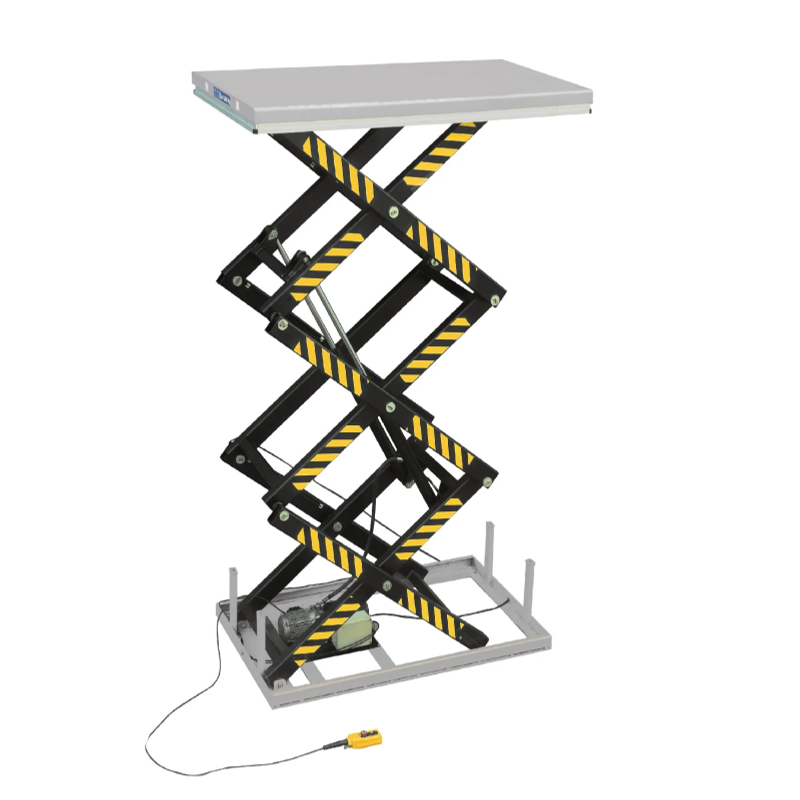

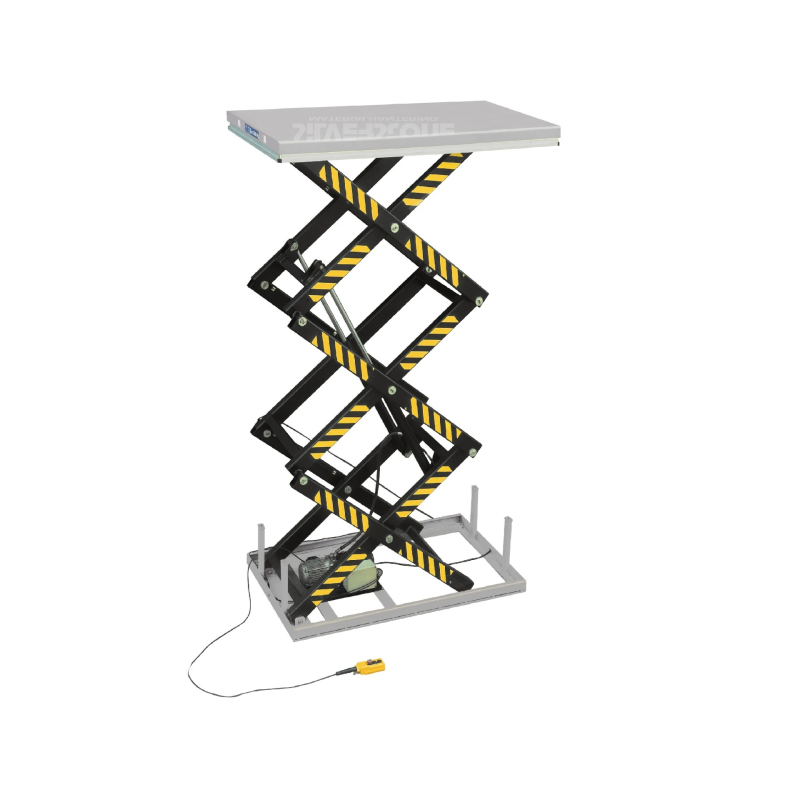

Stationary Electrical Lifting Table, Up to1000kg, Triple Scissor m Lift Height

Stationary Electrical Lifting Table, Up to1000kg, Triple Scissor m Lift Height

Tables for high lifts and long goods. Table should be fixed into floor with bolted joints. Maintenance free pivot bushings. Large safety clearance between the scissors to avoid injuries. Lift cylinder with internal drainage. Safety valve to ensure safety in case of a hose burst. Low-noise power pack with built-in overload valve. Safety switch in top position. Moveable limit switch for adjusting full raised stop. 4 end-stops, incl. 4 loops which can be used e.g. when lifting total lift table into a pit. Low-noise power pack with built in overload valve. Cable for 3-phase connection 380V/16 Ah. Approves to EN1570-1.

• 3-Phase (380V/16Amp)
• Type Triple scissor
• Capacity (kg) 1000
• Stroke length 2530 mm
• Table area (LxW) 1700x1000 mm
• Base frame size (LxW) 1660x1000 mm
• Weight (kg) 450
• Lifting time to max height 45-50 s
• Lift motor (kW) 380V / 50HZ 2,2kW
• Lifting height 470-3000 mm
