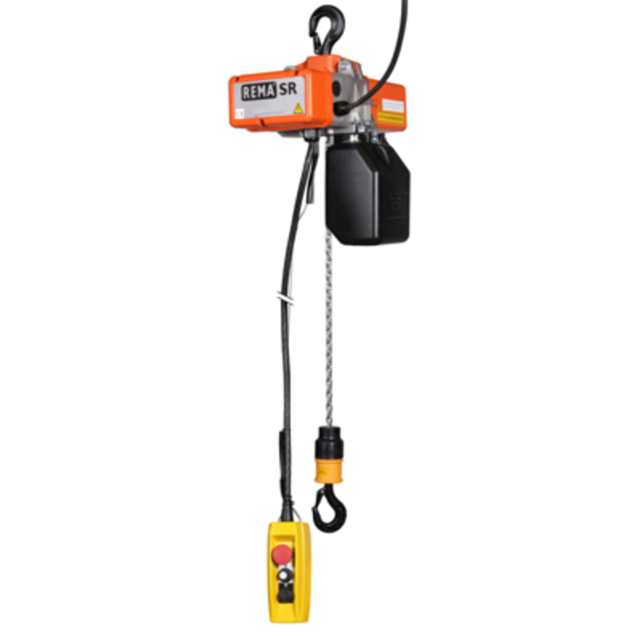

SR 400 V Direct Controlled Electric Chain Hoist

SR 400 V Direct Controlled Electric Chain Hoist

Properties

• 4 V, 3 phase 5 Hz, Isolation class F - direct control.
• Attractive appearance, low constructional height.
• Very high duty cycle thanks to an air-cooled hoisting motor used.
• Easy repair & maintenance due to modular design.
• The patented slip-type clutch unit meets all the safety requirements, thus loads will not fall even clutch malfunction or overload.
• Brake holds loads at any desired height.

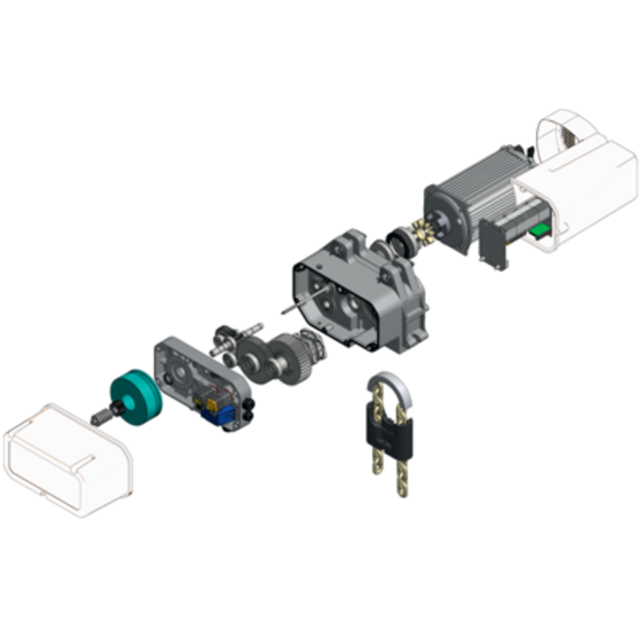

• As a result of modular design, the motor, the encapsulated drive, the brake and the drive motor can be replaced independently.
• Easy converting from single chain to double chain due to patented chain end locking.
• Zinc-plated load chain.
• DAT grade 8 complies with EN 818/7.

Standard delivery

• 3 m lifting height (max distance between top and bottom hook).
• Control height of 1,8 meter.
• 1 m power cable.
• Chain container.
• Trolley not included.

Option

• Higher lifting and control heights.
• Chain containers of larger capacity.
• Other operating voltages and frequencies are available.
• Push or electric trolley.

• Marking: According to standard, CE-marked
• Standard: EN 12100, EN 14492, EN 818-7
