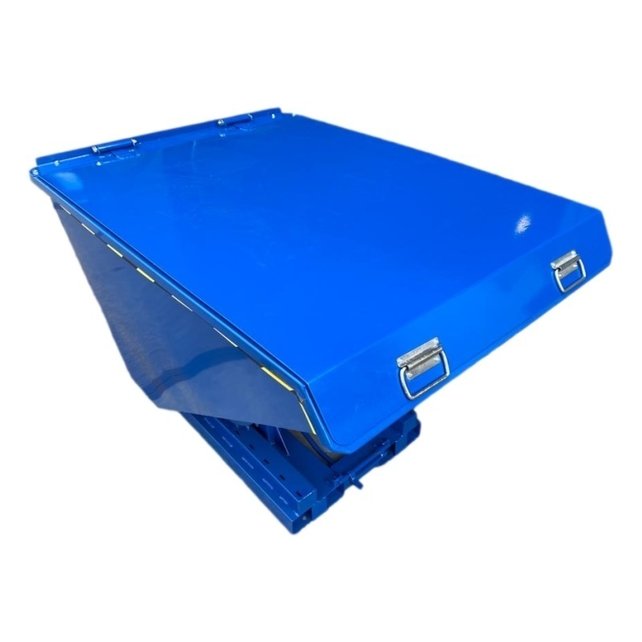

Self dumping hopper 600L(21.1 cu ft) Skip Container for forklift MC-Model

Self dumping hopper for forklift

Chip Container Automatic 600L Tipper Container with Rollover System

• Length: 1580 mm

• Width: 980 mm

• Height: 995 mm

• Without wheels

• Options wheels: nylon or PU wheels, Ø 160 mm, not mounted (select in dropbox)

• Option: mounting wheels

• Weight: 93 kg

• Payload: 1600 kg

• Volume: 600 L

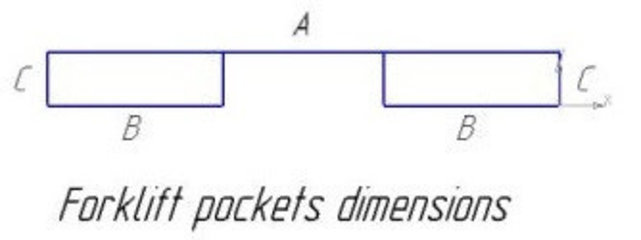

• Dimensions of lift pockets: (A) 260 mm x (B) 229 mm x (C) 62 mm

• Material: steel

• Finishing: powdercoating

• Color: RAL5010

• Features: roll over system, automatic and manual release mechanism

• Container steel plate: 3 mm

• Base frame steel plate: 6 mm

• Excellent center load gravity

Other RAL-colors available upon request.

Chip Container SBTCMC600L. Suitable for forklift.

Option Wheel set  :

- 2 fixed (front) & 2 swivel + brake (back) Heavy duty Elastic grey rubber 125mm diam. load capacity 400kg/wheel.

- 2 fixed (front) & 2 swivel + brake (back) Heavy duty   Polyamide White neylon 150mm diam. 800Kg/wheel.

- 2 fixed (front) & 2 swivel + brake (back) Heavy duty 160mm 600kg/wheel. Bruin PU for indoor use (concrete floor) No noise, smooth rolling.

SBTCMC series

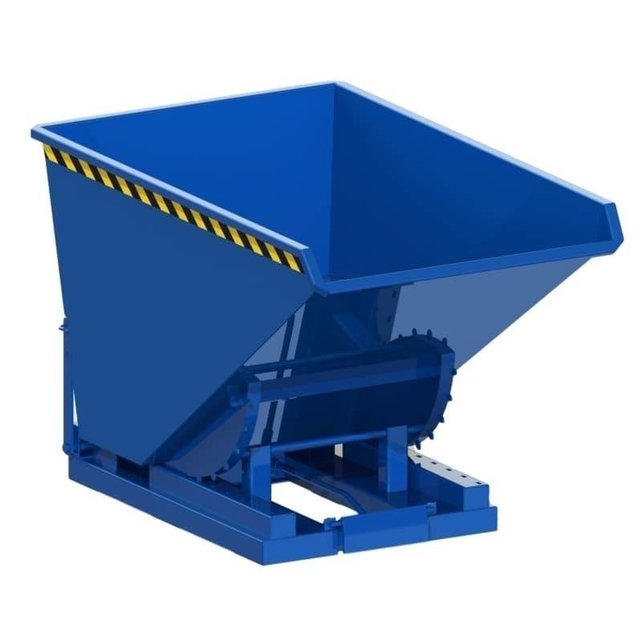

This Automatic Tipping Container is the ultimate solution for collecting and transporting all kinds of bulk goods. The SBTCMC Series Chip Container is equipped with an automatic tipper and a rear manual handle for tipping, which can be operated by a pull cord from the driver's seat of a forklift. Ensures easy and controlled emptying. Very efficient, time-saving and safe.

The SBTCMC series is characterized by its safety, versatility and high load and carrying capacity. Thanks to the use of high-grade steel sheets and excellent finishing, these tilting bins are very durable and robust.

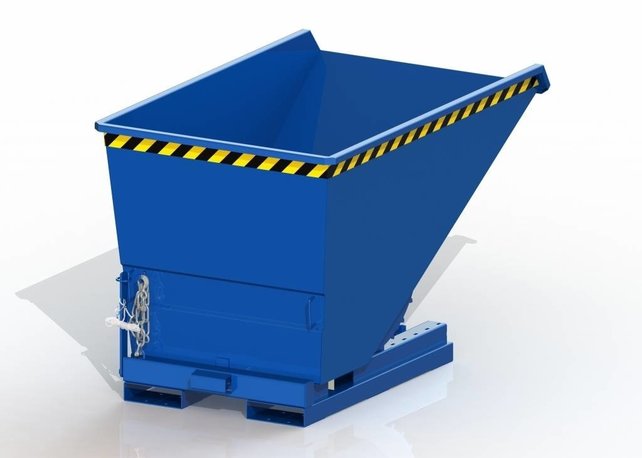

For extra safety, the tipping container can be secured with a safety chain on the forklift. Add a security chain and cable set to your order.

Finished with powder coating in standard color RAL5010.

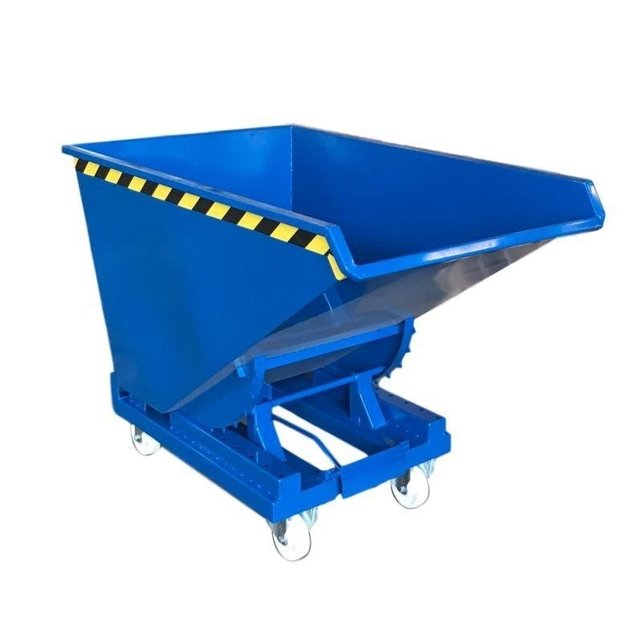

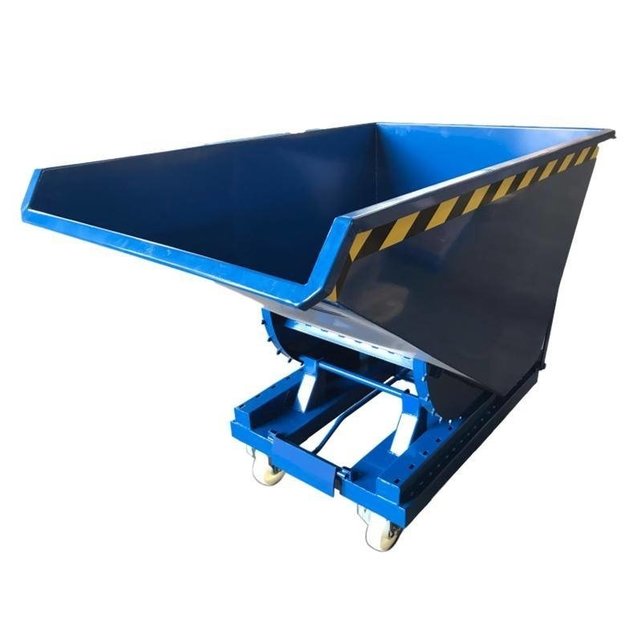

The containers can be ordered with wheels. The wheels are delivered not mounted as a set, including mounting material. You have the choice between polyamide or PU wheels. We can also mount the wheels for you before delivery. Please tick ​​'mounting wheels' for this option.

Applications of bin: wood, metal, aluminum, stainless steel, plastic, glass, sand, stone ...
