Scaffolding steel handrail post with platform protection
AED 0.00 AED
Salesbridges
Scaffolding steel handrail post with platform protection
Price on request
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Product description

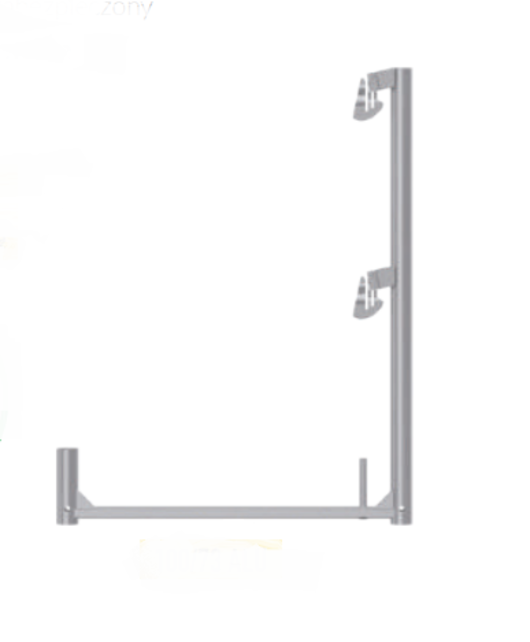

Handrail post with platform protection is an element used to mount the railing on the top scaffolding tier (except extreme fields), which is assumed directly on the frame pins. It consists of a stand and sockets, which are connected by a crossbar. The stand has pockets with wedges for assembly the handrail, and the crossbar - the enabling pin setting up a curb.

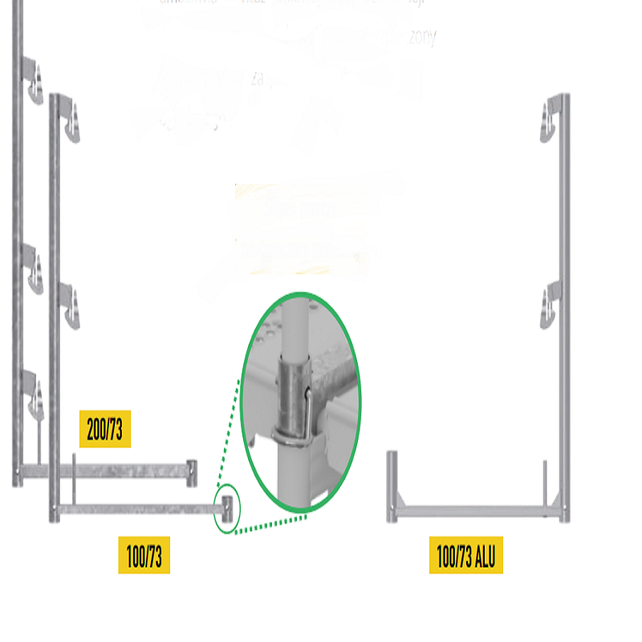

Version 200/73 and 200/109 additionally enables the installation of a steel protective grating.
The steel version of the post is secured anti-corrosion by galvanizing fire.
Description: 100/73 version steel galvanized
SYSTEM HEIGHT : 1000 mm
SYSTEM WIDTH : 732 mm
OVERALL HEIGHT : 1000 mm
OVERALL WIDTH : 780 mm
SCALES : 5.5 Kg
GALVANIZED
Description: 100/73 version Aluminum
SYSTEM HEIGHT : 1000 mm
SYSTEM WIDTH : 732 mm
OVERALL HEIGHT : 1000 mm
OVERALL WIDTH : 780 mm
SCALES : 2.3 Kg
Aluminum
Product information
| Brand | Salesbridges |
| Article code | SBSCT2409100 |
| SKU | SBSCT2409100 |
| EAN | 9501485389525 |
