Scaffolding steel galvanized diagonal brace 307x200 cm

Galvanized diagonal brace 307x200 cm

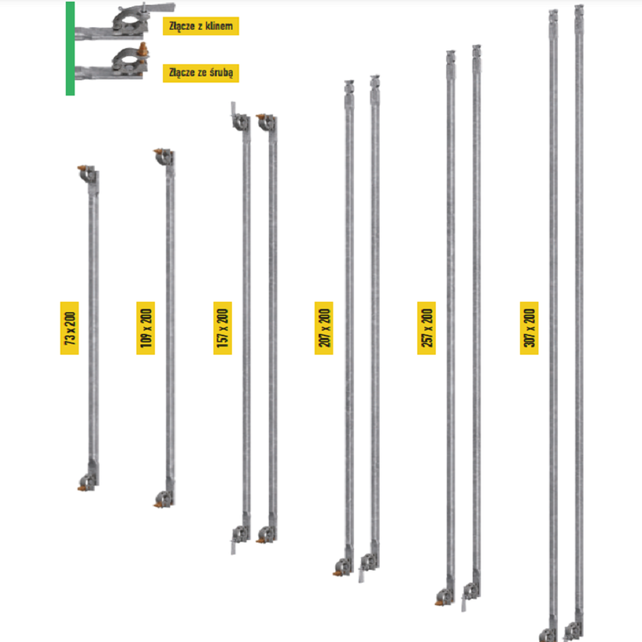

The longitudinal vertical brace is made of a pipe, flattened at both ends. One of them (stepped), mounted in the brace opening, is individually shaped for each system bay length from 3.07 m to 2.07 m and standard height, 2.0 m.

At the other end there is an articulated half-coupler with a wedge or a screw that is mounted to the stand of the adjacent frame.

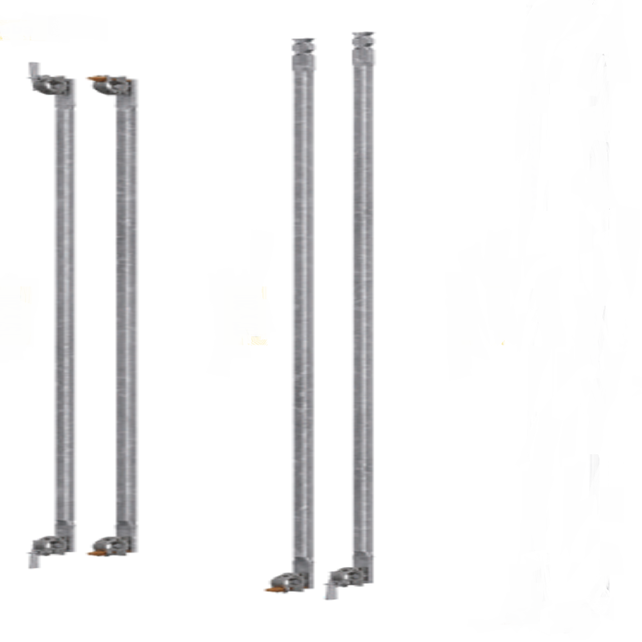

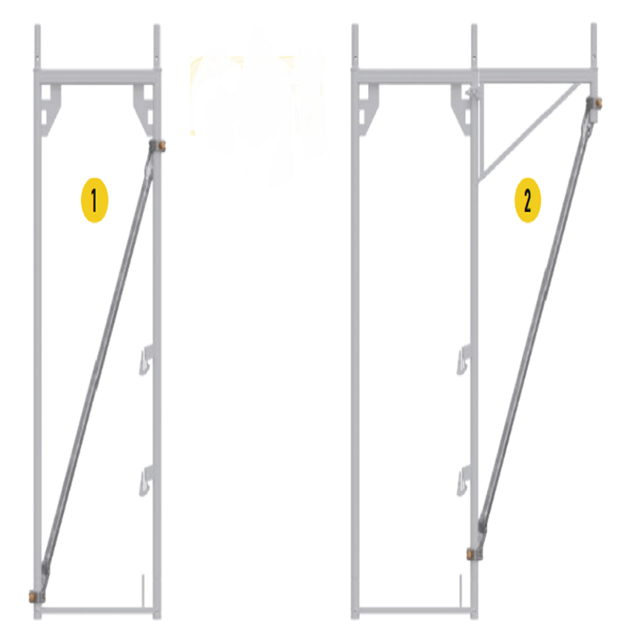

For a field length of 1.57 m and a height of 2.0 m, there are bracings at both ends articulated half couplings with wedge or bolt. It also has the same design vertical transverse brace that can be installed across the frame, additionally stiffening, e.g. in the verticals of the scaffolding where the beams are mounted, as well as as console support 0.73 m or 1.09 m (as a brace).

Coupling with wedge

Coupling with screw

Description:

OVERALL LENGTH : 3643 mm
WEIGHT (WITH WEDGE) : 8.4 Kg
WEIGHT (WITH SCREW) : 8.2 Kg
PIPE DIAMETER : 42.4 mm
GALVANIZED
