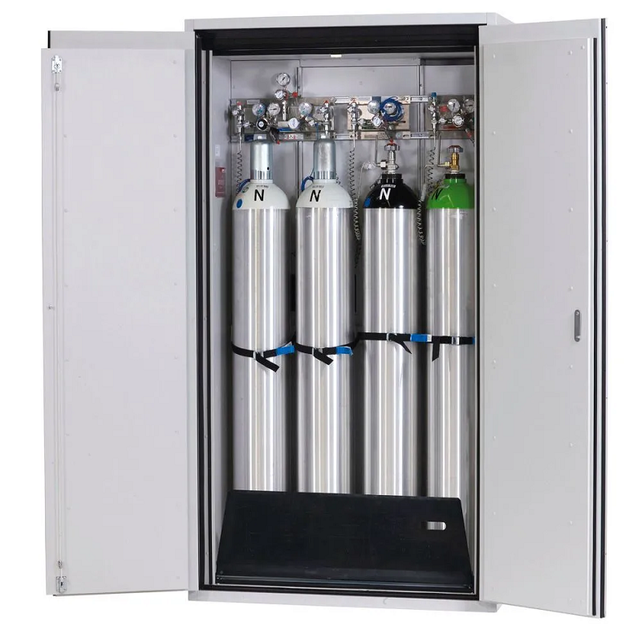

Safety storage for gas cylinders Type G90 W 1200 Interior installation

Safety storage for 4 gas cylinders Type G90 Width 1200 mm

Optimal fire protection and highest safety for gas cylinders. Compliance, with the maximum temperature rise on the surface of cylinder valves: 50 K . Type G90 cabinets with GS validation.

PRODUCT DESCRIPTION

• For the fireproof storage of gas cylinders in work areas

• Model approved according to standard EN 14470-2

• Optimal fire protection and highest safety for gas cylinders

• Compliance, in accordance with standard EN 14470-2, with the maximum temperature rise on the surface of cylinder valves: 50 K Type G90 cabinets with GS validation.

• Connection of an extraction system (NW 75) on the top of the cabinet

• Height-adjustable feet to compensate for any unevenness in the floor

• Possible pipe passages in the roof of the cabinet

• Complete set, including fixing rails for taps, bottle supports and retaining straps (tap fittings and bottles not included)

• Convenient and safe bottle loading thanks to the folding ramp made of embossed sheet steel

• Large interior height for quick and easy installation in the cabinet

• With standard earthing kit

• 90 minute fire resistance

• Suitable for storing 4 gas bottles of 50 liters

• 2 hinged doors, lockable

• High quality epoxy coating RAL 7035 (light grey)

TECHNICAL DATA

• Place of installation : Interior

• Duration of fire protection : 90 minutes

• Storage capacity : 50 liter gas cylinders: 4

• Exterior width (mm) :1198

• External depth (mm) : 615

• External height (mm) : 2050

• Inside width (mm) : 1045

• Interior depth (mm) : 400

• Internal height (mm) : 1858

• Version of doors : 2 leaves

• Weight (kg) : 627 .122

5 years warranty
