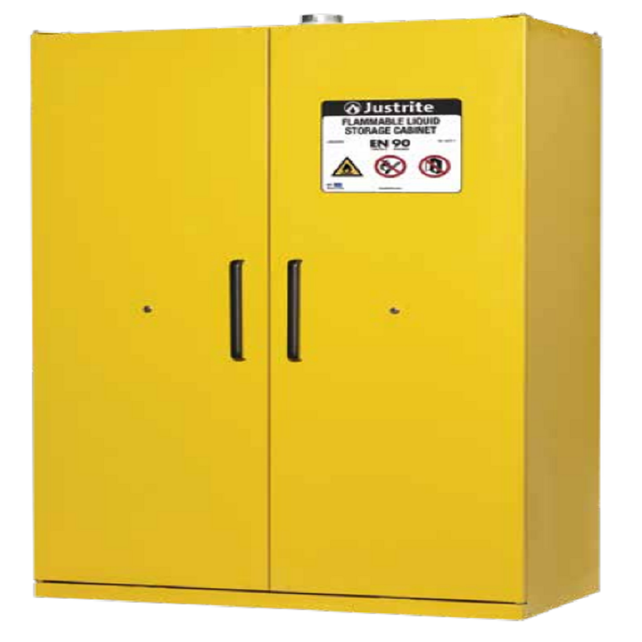

Safety Cabinets 90 Minutes 207 x 120 cm safety cabinet for flammable liquids

 Safety Cabinets 90 Minutes 207 x 120 cm safety cabinet for flammable liquids

Extreme fire resistance for high risk environments, Store flammables with 90 minutes of protection. Under fire condition, intumescent strips expand and hermetically seal all gaps to reduce the heat entering the cabinet, providing 90-minutes of content protection and extended evacuation time.

• Manufactured from 1-1.5mmsteel and rock -wool fiber high-density and calcium sulfate panels. The cabinet body has a rugged acid-resistant epoxy coated exterior that provides excellent corrosion resistance.

• 47degrees Acid-resistant epoxy coating provides excellent corrosion resistance

• Storage capacity of 45 gal (220l) of flammable liquids

• Dimensions, 1200 x 2070mm

• weight: 365Kg

• Number of door :2

• Hybrid-close door action ,Automatic door closure when the temperature exceeds 122°F (50°C).

• Vent butterfly valve closes securely at 158°F (70°C) in the event of a fire. Vents include flame arresters and caps for FM approval.

• MFC panels inside, resistant to acid and corrosive vapors

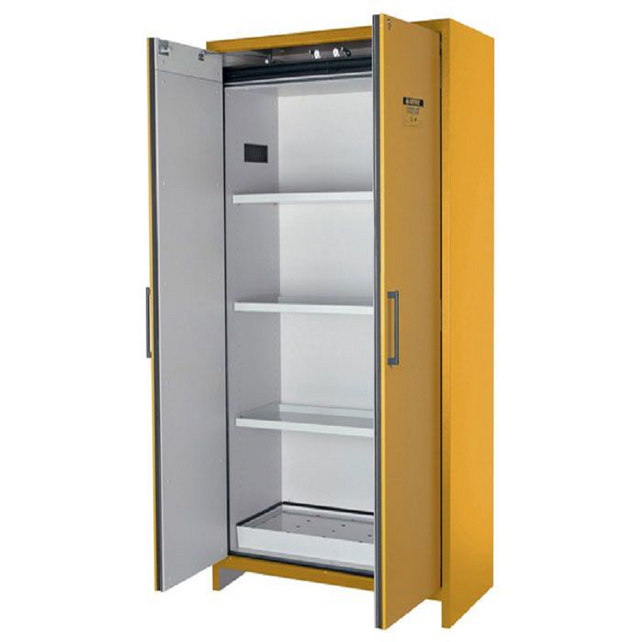

• Number of shelves :3

• color: yellow

• Independent fire test ,FM Approval

• OSHA Compliance

• Complies with NFPA Code 30



Constructed using multiple layers of fire-resistant gypsum and mineral fiber insulation, the cabinet body has a rugged powder coated steel exterior that provides excellent corrosion resistance. Under fire conditions, intumescent strips expand and hermetically seal all gaps to reduce heat entering the cabinet, providing 90 minutes of content protection and extended evacuation time. Hybrid style doors open or close manually and include a damper that adjusts the force needed to move the doors. In the event of a fire, the built-in fusible link system releases to allow automatic closure of doors at 122°F (50°C).

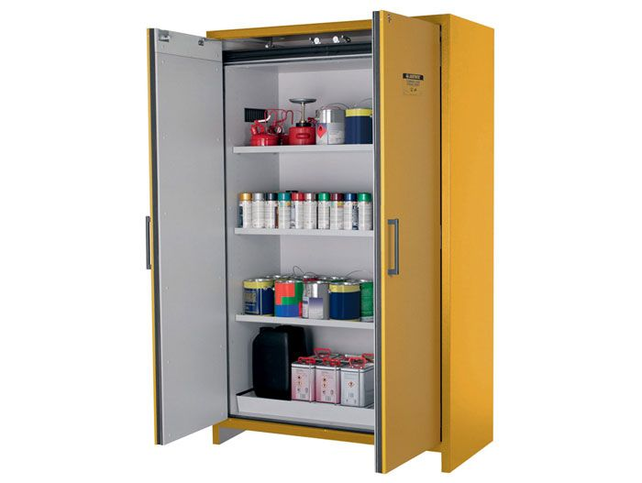

Powder-coat finish steel shelves adjust on 1-1/4-inch (32-mm) increments and have a load capacity of 165-lbs (75-kgs). Shelves with 1-inch (30-mm) high ledge prevent small containers from easily sliding off. Removable bottom sump with detachable perforated insert features a 3-sided lip seal to ensure leaks or spills from shelves are captured at the bottom of the 3-inch (76-mm) sump, keeping containers stored in the sump clean and dry.

Reflective tri-lingual warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight. Independent cylinder locks on each door include a locking state indicator (red/green). Cabinets also feature adjustable leveling feet, an integrated transport base for easy repositioning (base cover optional), and mandatory air vents per EN 14470-1. Vent butterfly valve closes securely at 158°F (70°C) in the event of a fire. Vents include flame arresters and caps for FM approval.

Independently fire tested and approved by FM Approvals, and tested and GS certified by MPA Dresden, the cabinets are EN 14470-1 / EN 14727 compliant and meet NFPA 30, NFPA 1, and OSHA standards.

Read More

Most cabinets are FM approved and all come with a ten-year warranty.
