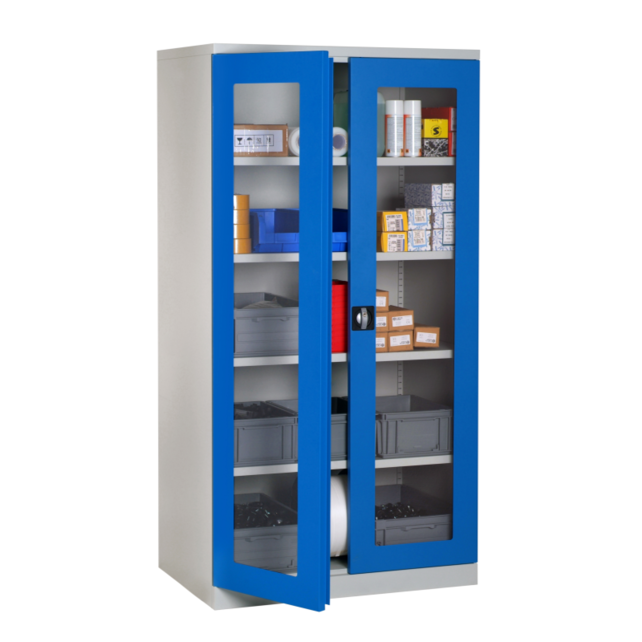

Cupboard with transparent doors, storage workshop cabinet W1000xD500xH1950 mm

Cupboard with transparent doors, storage workshop cabinet - Height 1950mm

The casing element of the transparent door cabinets is made of spotwelded folded sheet steel.
They are foreseen with a welded omega-form stiffener which provides greater rigidity and conceals the closing mechanism. They are incorporated in the top and bottom strips of the cabinet casing and are mounted on concealed steel hinge pins which cannot be unhinged in the closed position for greater security.

These hinge pins enable door opening to an angle of 240°.

Closing is achieved with a built-in, 2-point handle/lock system.

An opening with width 300mm and height 700mm for the short cabinet and 1640mm on the tall cabinet provides an adequate view of the cabinet contents.

The opening is closed with a 2mm and 3mm thick clear acrylic glass panel crimped into a reinforcement frame which is riveted inside the door and invisible from the exterior.

The shelves are made of spot-weld assembled, folded sheet steel. They are foreseen with a welded omega-form stiffener which provides greater rigidity and allow a evenly distributed load of 150kg per shelf. They are height adjustable in step of 25mm and secured with galvanised steel latches.

The shelves are perforated every 150mm in order to incorporate vertical dividers with a depth of 500mm.

It is possible to add optional shelves

The useful dimensions of the shelves are: W996 x D440.

All elements are finished with epoxy powder paint, oven polymerised at
180°C.

The transparent door cabinets are available in 2 heights: 1000mm (2 shelves) and 1950mm (4 shelves); depth 500mm. The entire 1000mm width of the cabinet may be used.

Attention: The short cabinets are not stackable!

Compliant with standard NF D65 763
