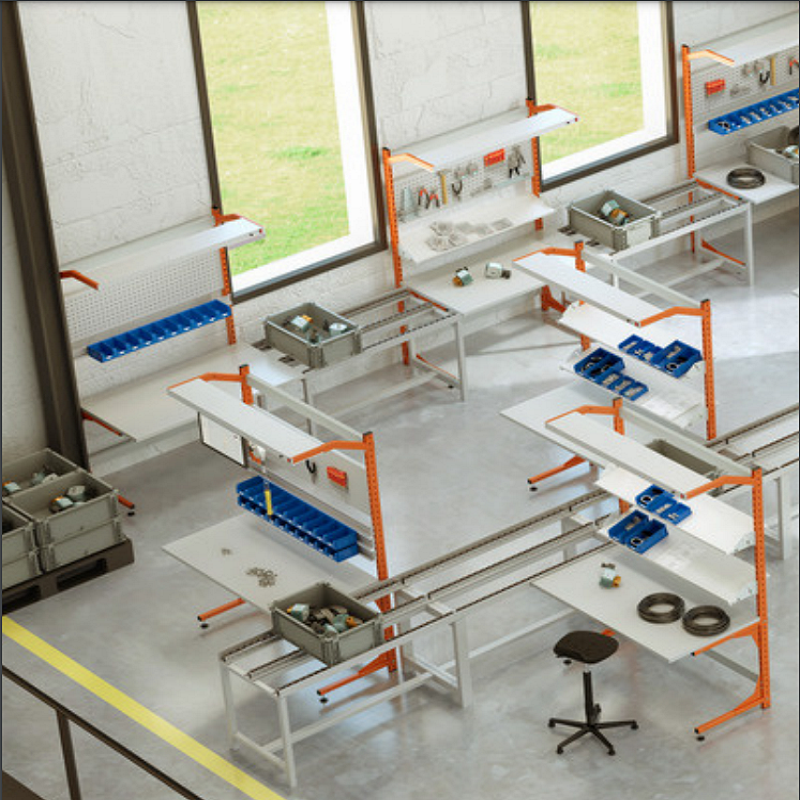

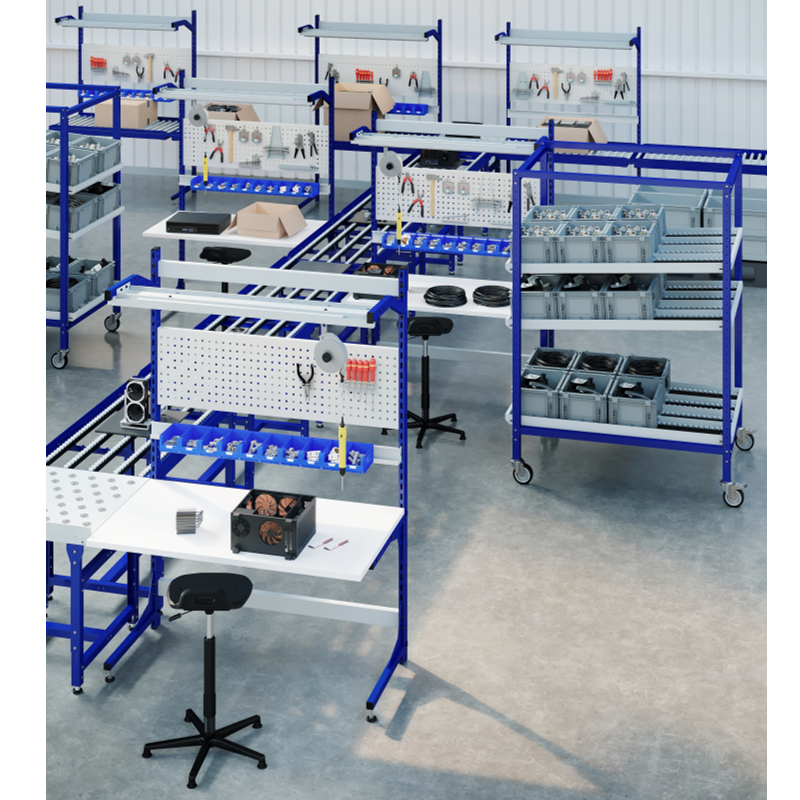

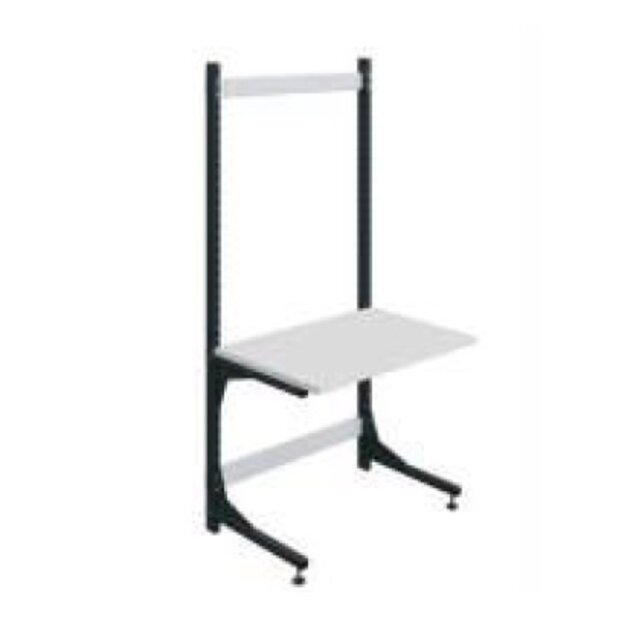

Production line workstation conveyor workbench 150 kg with worktop

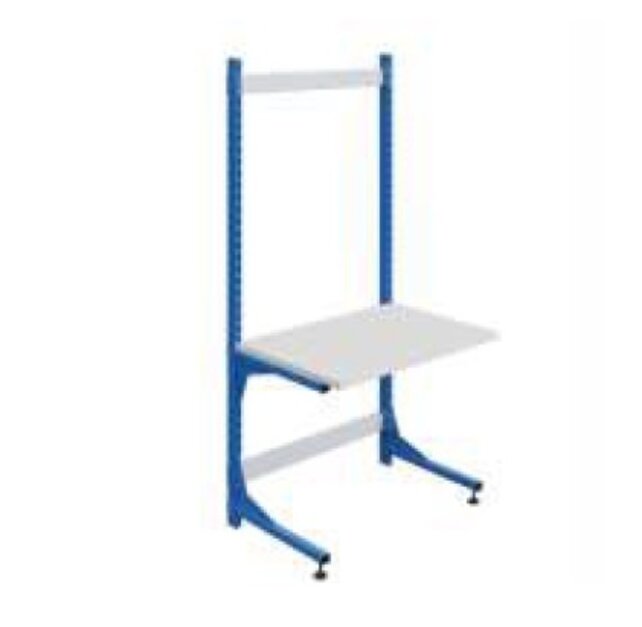

CHARACTERISTICS OF THE WORKSTATION METAL STRUCTURE

The vertical uprights measure 1950mm in height and are constructed from 60x30mm steel tubes with a thickness of 20/10th, perforated on all four sides. The 60mm wide sides feature 10x10mm square perforations spaced at intervals of 50mm. The front and rear faces, 30mm wide, are punctured with 30x10mm perforations at a pitch

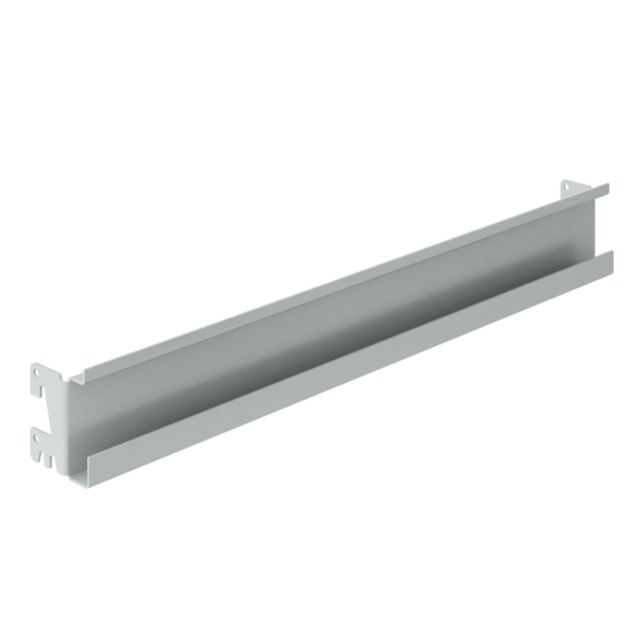

of 50mm. These perforations facilitate the attachment of modular accessories such as shelves, rails, or lighting supports.
The horizontal bases are composed of 35x35mm tubes with a thickness of 20/10th. They are equipped with height adjustment cylinders in the front part, offering a 30mm stroke to compensate for variations in ground surface levels.
The worktop support arms are made of 35x35mm section steel tubes.
They are height-adjustable across the entire height of the uprights.

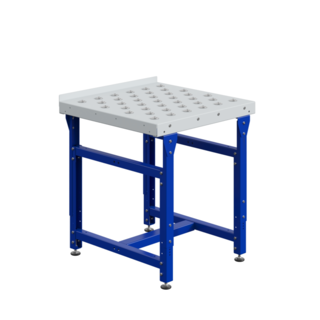

The work surface options include 40mm RESITOP laminate, 28mm melamine worktop, or gravity roller / roller track tops (see characteristics below).
Load capacity per workstation: 150kg.

In compliance with standard XPD 65762

Made in France
