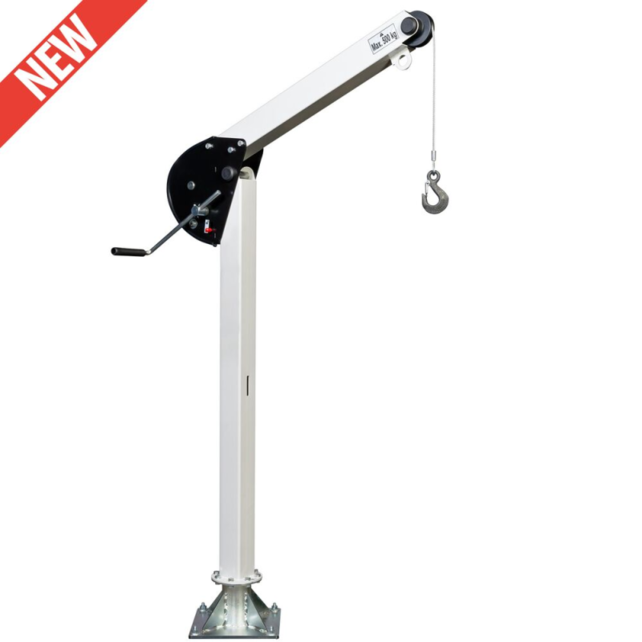

Portable Swivel Davit Stainless Steel Lift Up To 500 Kg

Portable Swivel Davit Up to 500 Kg  SBSD500

Optional Portable Swivel Davit Up to 500 Kg zinc-plated finish  (6 - 8 micron) (EV)

Designed for hoisting goods on location.

One person can move the lifting davit to the desired location.

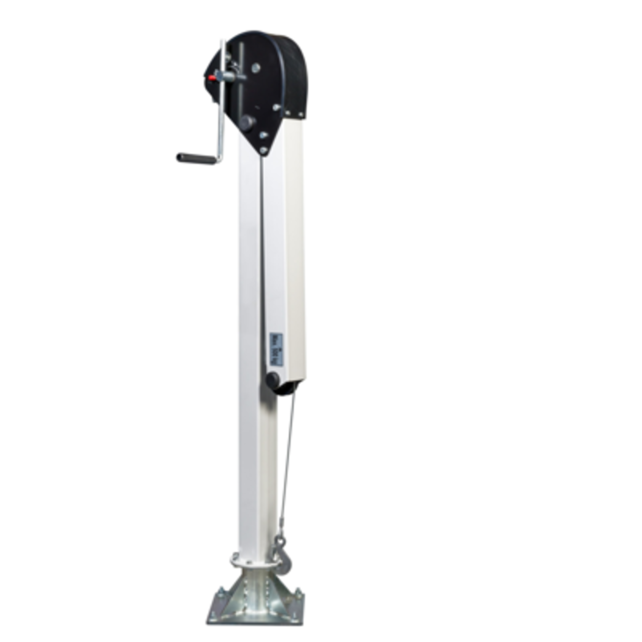

Ready for use within 5 seconds by means of the folding system of the boom.

Construction steel finished option:

• stainless steel grade SAE 316 (SST316)
• ATEX certified (EX)

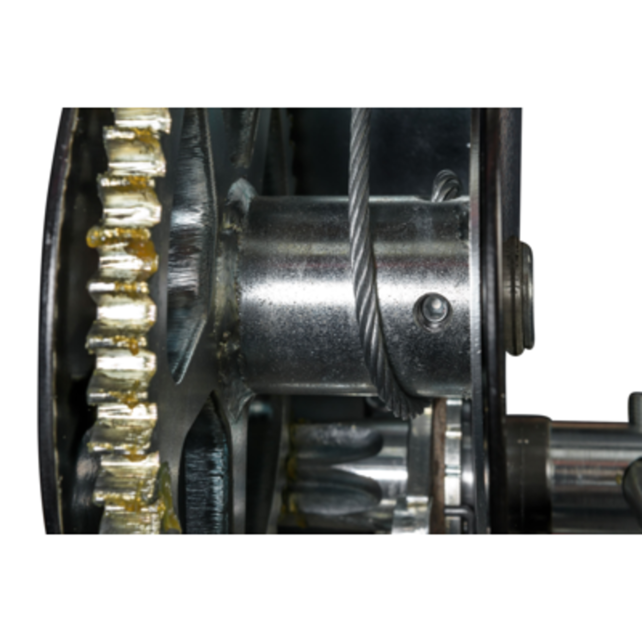

The winch consists of a drum winch with a gear transmission with a self-braking capacity. This self-braking capacity ensures a hold of the load at any required height during hoisting and lowering.

The crank is adjustable in length and removable.

Description :

• Cable diameter: 5 mm
• Min. breaking force of cable : 15 KN
• Max. Cable storage calculated per cable compartment : 13 m
• Hoisting height per crank rev. : 20 mm
• Lift/crank turn: 20 mm
• Hoisting load first layer: 500 Kg
• Rope Length: 13 m
• Force on the handle: 10 Kg


• Hoisting load last layer: 268 Kg
• Weight: 30 Kg
• Temperature range: -20°C up to +40°C
• Finish: Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M

Marking: According to standard, CE-marked
Standard: EN 13157
Safety factor: 4:1
