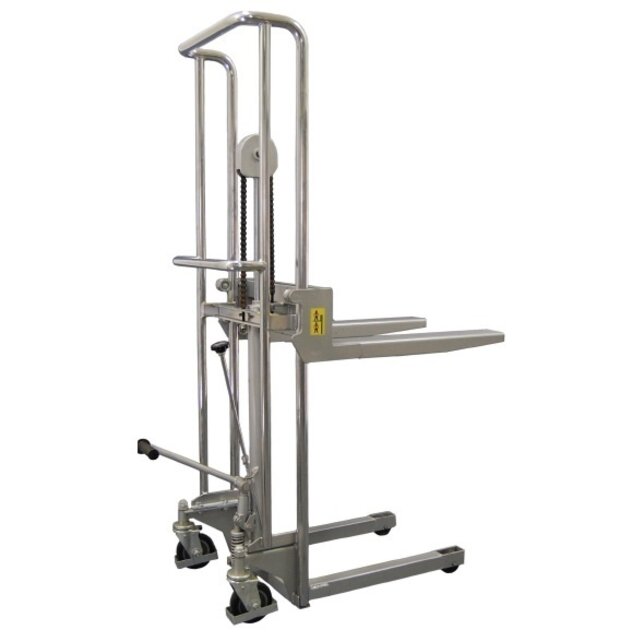

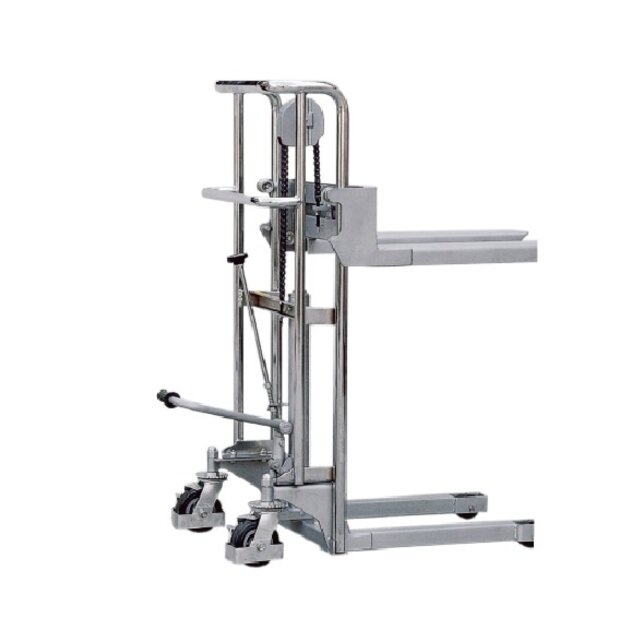

Salesbridges Manual Material Stacker 400Kg
Manual Material Stacker 400Kg
AED 7,865.00 AED
Salesbridges

Manual Material Stacker 400Kg

AED 7,865.00 Excl. tax
AED 8,258.25 Incl. tax

Manual stacker with load up to 400 Kg, 3 models available with different heights: 85-850mm, 80-1200mm, 80-1500mm. Supplied with metal sheet platform size 650x580mm

In stock
2-3 weeks
Quantity
- +
Product description

ST400-series | Manual 400 kg

3 models with different lifting height


The hydraulic stacker is equipped with both fixed forks and a lose, chromed platform for multipurpose use. You can handle half size pallets and/or use it as a mobile lifting table. Manual stacker with foldable foot pump lever for lifting and manual turning knob for lowering.
The electric stacker is equipped with large battery 74Ah/12V, builtin charger, electric motor (DC) and pump for heavy duty usage and increased ergonomics. Overload valve, maintenance free bushings and RS bearings. Footbrakes on the rear wheels and polyurethane wheels.


• PLATFORM SIZE: L650 X B580 MM
• MEASUREMENT BETWEEN SUPPORT LEGS: 370 MM



Part Number   SBST400850 SBST4001200 SBST4001500 SBST4001500E (Electric)
Type Foot Pump  Foot Pump  Foot Pump Electrical
Capacity (Kg) 400 400 400 400
Load center (Kg) 300 300 300 300
Lifting height, min-max 85-850 80-1200 80-1500 80-1500
Lifting speed 12 mm/stroke 12 mm/stroke 12 mm/stroke 60 mm/stroke
Fork width, total/fork (mm) 650/100 650/100 650/100 650/100
Fork length (mm) 650 650 650 650
Steering wheel / Loading wheel (mm) 125x35/75x20 125x35/75x20 125x35/75x20 125x35/75x20
Fork wheel (mm) Ø150 Ø150 Ø150 Ø150
Turning radius (mm) 850 850 850 850
Dimensions (LxWxH) (mm) 1050x580x1060 1050x580x1300 1050x580x1720 1100x580x1720
Platform (LxW) (mm) 650x580 650x580 650x580 650x580
Inner measure between
supporting legs (mm)
370 370 370 370
Inner measure between forks (mm) 350 350 350 350
Measure from floor to upper
part of supporting leg (mm)
75 75 75 75
Lift motor (W) - - - 700
Battery - - - 12/74
Weight (Kg) 75 98 110 145









Product information
Brand Salesbridges
Article code SBST400850
SKU SBST400850
EAN 9507825917458
