ESD workbench for electronic adjustable height

Workstation for electronic industry with 30mm thick laminated ESD anti-static worktop With adjustable height.

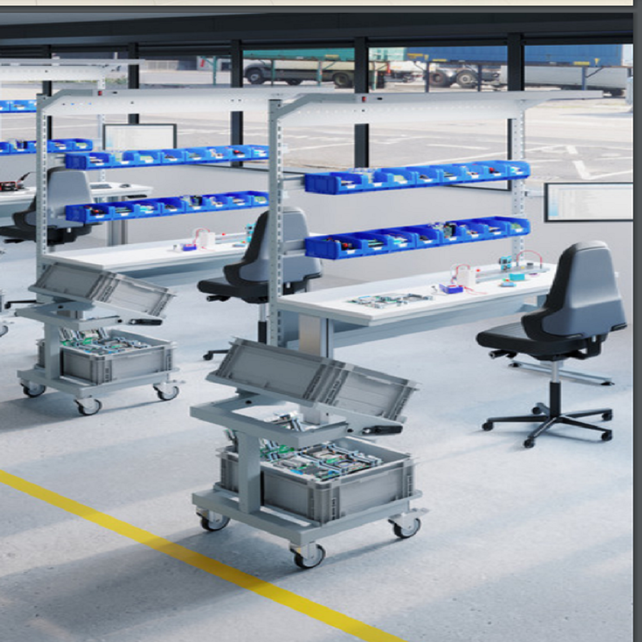

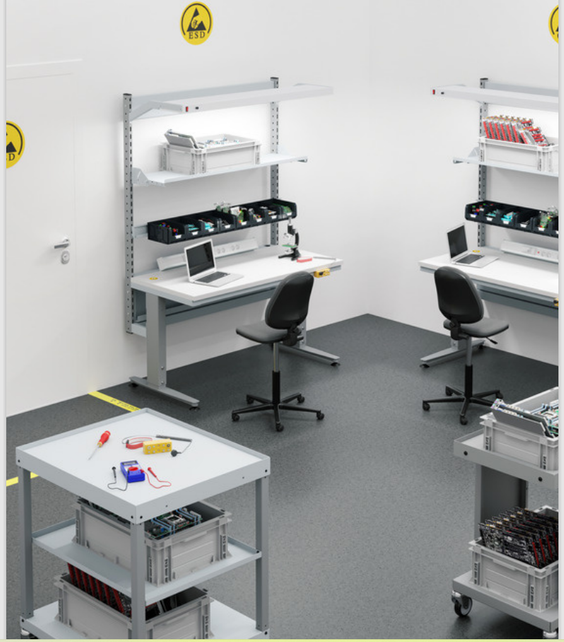

The electronics industry is particularly concerned by the risk of undesirable leakage current which could damage electronic equipment such as integrated circuits. ESD Workstations is designed for the electronics industry. The primary criteria for use in the electronics industry is the removal

of any electrostatic charge that the assembly components may attract and which can cause harmful electrostatic discharges both to the operator and the components themselves.

The workstation environment must be taken into account and allow for the discharging of electrostatic charges from the workstation to the ground.

Specification of the workbench:

Comes in 2 versions :

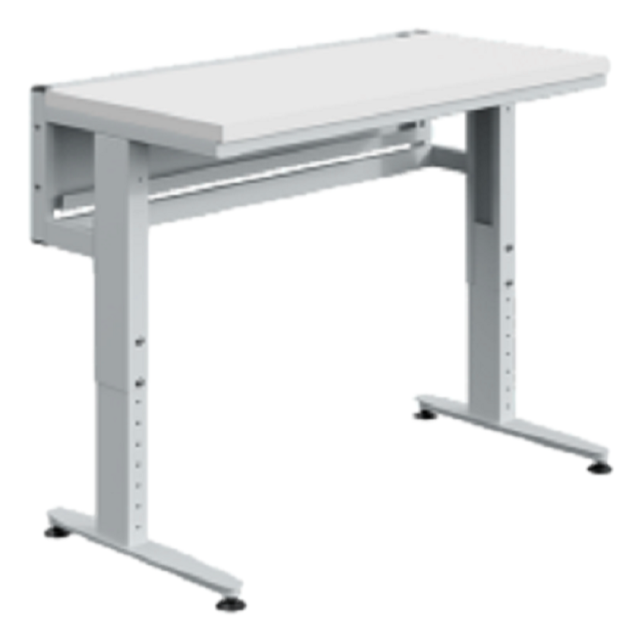

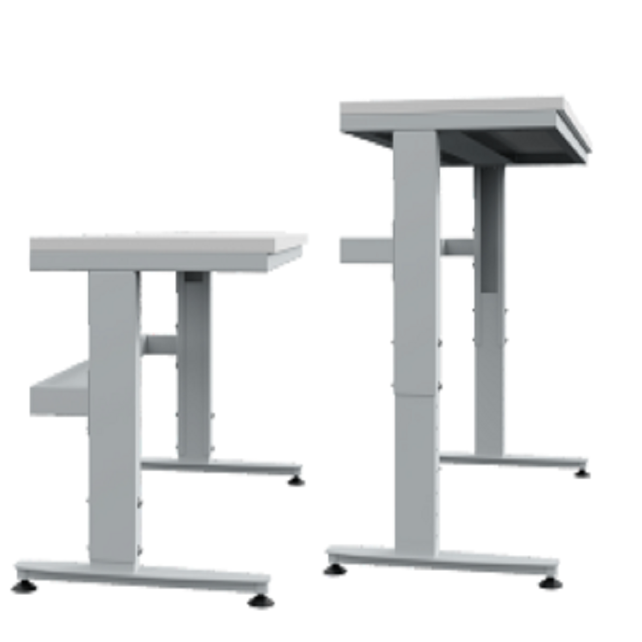

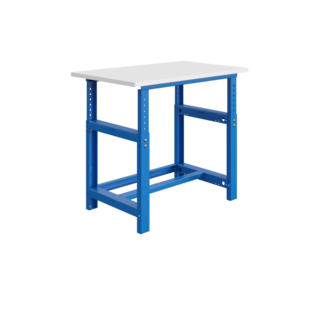

• Adjustable with adjustable brackets (Height adjustment is carried out in 50 mm increments from 723 to 1073 mm (measured under the worktop)

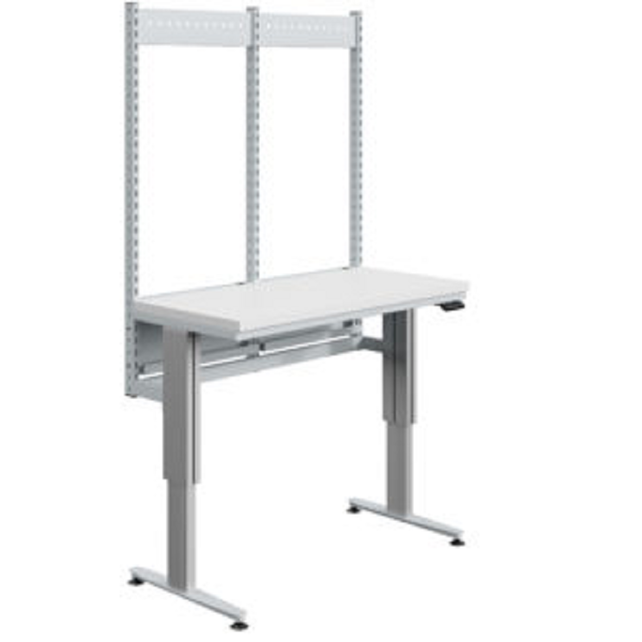

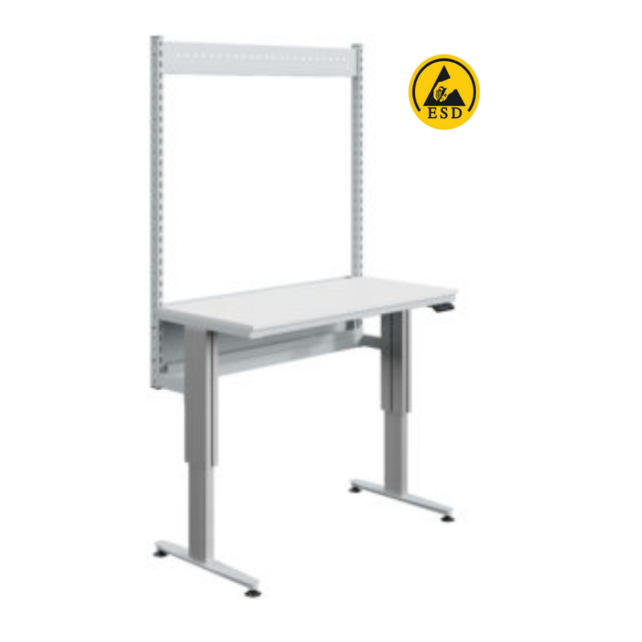

• Electrical adjustment from 723 to 1123 mm

4 different frames :

• Beam

• Beam and back panel

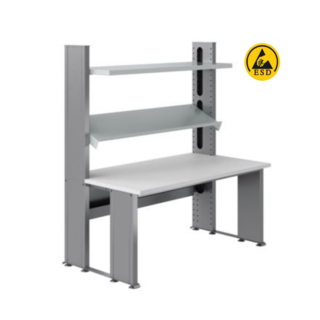

• Beam and back uprights for superstructure

• Beam, back panel and back uprights for superstructure

Dimensions :

• Workstation with 30mm thick ESD anti-static laminated worktop

• 2 depths : 650 mm or 750 mm ;

• 4 lengths : 695, 925, 1360 or 1820 mm

• Load capacity : 300 Kg

THE PROTECTION MEANS

Protection against unwanted effects of the electro-static discharges is made possible by earthing each element at the workplaces.

It is key to do it for the whole area environment: floor, furniture, users. An ESD area (isolated) has to be created, where electronics
components are manipulated.

This area is the warranty that no electrical charge remains present.

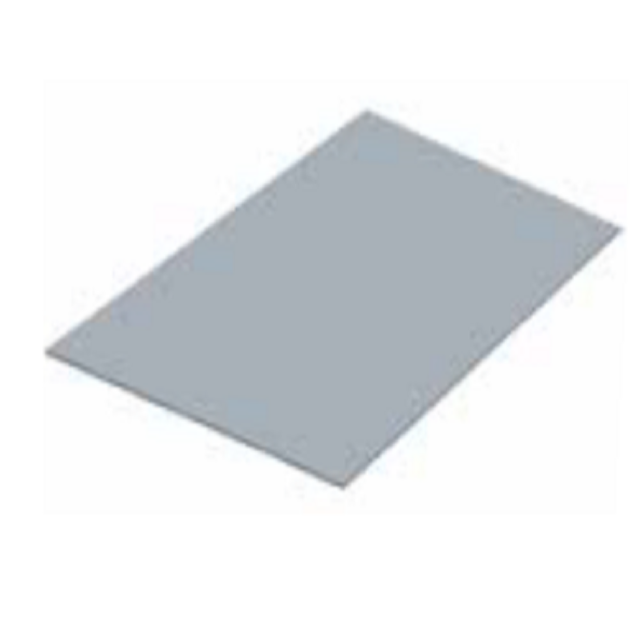

• Worktops: ESD worktops are made of laminate charged in carbone which allows the circulation and the evacuation of the electrostatic current.

• Coating: a specific semiconducting paint RAL 7035 (other colors on request) charged in carbone allows the electrostatic current’s evacuation too.

• Connecting elements : Electrical braids or earthing kits for elements or users complete the evacuation action. Specific actuator or castors allow the earth connection of either furniture or seats.

• Insulation elements : On the contrary, some elements need to be insulated. Insulating foam kits make it possible by cutting off the flow of electrostatic current.

Accessories:

• ESD insulating foam isolation kit for raised shelf and for inclined ramp

• ESD electro-static protection kit

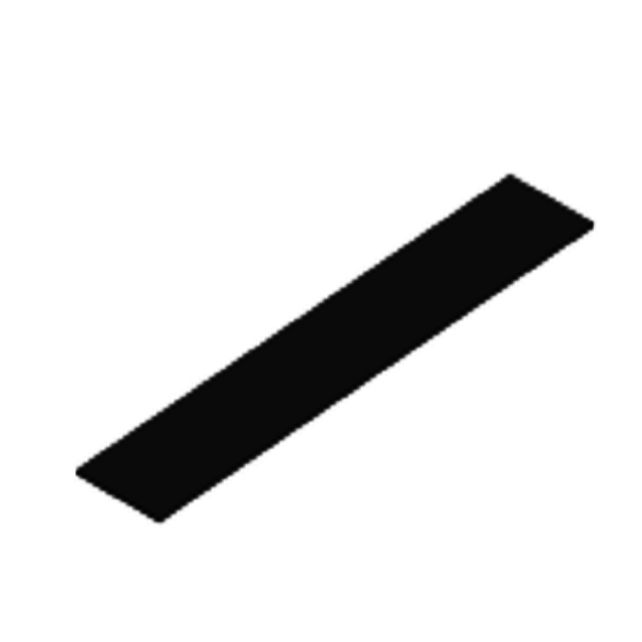

• ESD antistatic mat for trays and shelves for worktop, for reclining shelves

THE ESD PROTECTION AREA

Depending on the sensitivity of the components used, the ESD zone may present different levels of protection.

Level 1

• Simple ESD mat on tray

• Operators connected to the ESD mat by discharge wristband

• Grounded Mat-Wristband Set

Level 2

• ESD tray connected to the structure.

• Operator connected to the ESD mat by bracelet discharge.

• Structure connected to the ground

Level 3

• ESD tray connected to the structure.

• Operator connected to the ESD mat by bracelet discharge.

• Structure and seat installed on floor mats ESD.

• Structure connected to the ground.

Level 4

• ESD slat connected to the structure.

• Operator connected to the ESD mat by bracelet discharge.

• Structure and seat installed on the treated floor ESD.

• Grounded ESD treated floor.

• Structure connected to the ground.

Trades involved

Electrical engineering technician Power station manager Electrical engineer Wiring technician Electronics and electrical monitor Electronics and electrical assembler Coil electrician Robotics technician Automation technician Electrician Electronics assembly picker Electrical cabinet wirer Electrical and electronic inspector/operator

The worktops are certified PEFC

The proposed ESD furniture compile with IEC 61340-5-1 relative to the protected areas.

Not all dimensions, table top options and frame colors are available online. However, a lot is possible on request.

Made in France
