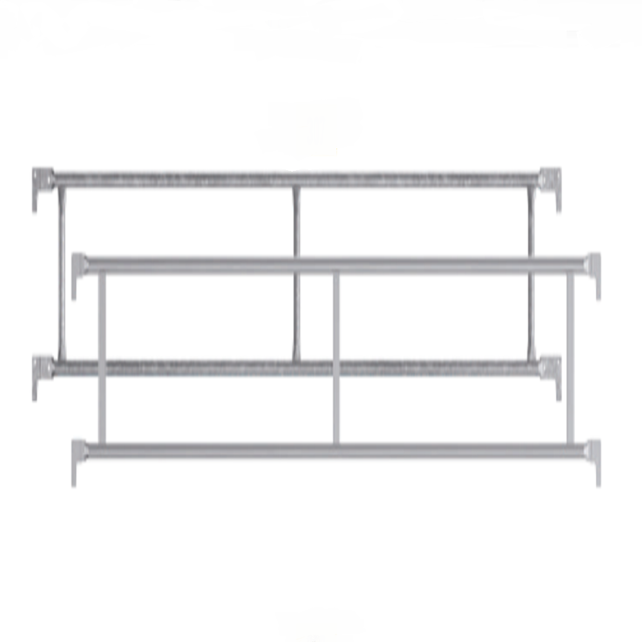

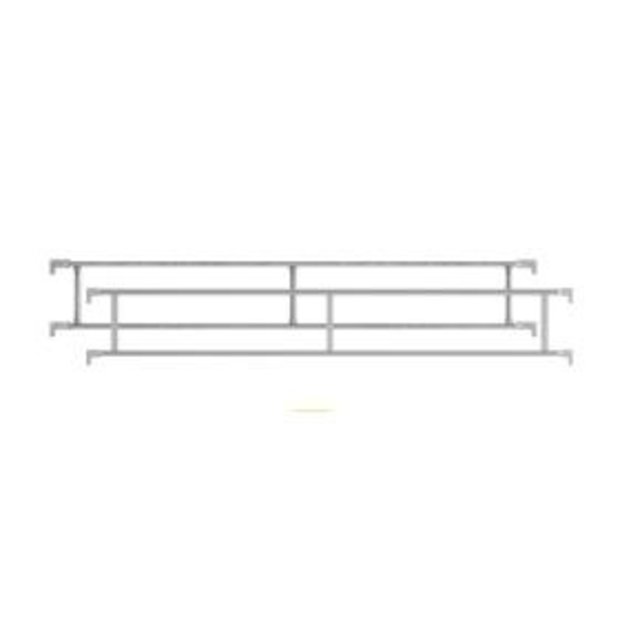

Scaffolding steel galvanized guard rail 307

Scaffolding steel galvanized Guard rail 307

The handrails are elements horizontally attached to the scaffolding frame stands on the platform side on the appropriate one heights, preventing people from falling off the platform.

Description:

• Made of steel

• Galvanized

• Pipes flattened at both ends,

• SYSTEM LENGTH : 307.2 cm

• OVERALL LENGTH : 310.5cm

• HEIGHT :54.5 cm

• WEIGHT (STEEL VERSION) :13.1 Kg

Option: Aluminum scaffolding guard rail 307

• Pipes flattened at both ends

• SYSTEM LENGTH : 307.2 cm

• OVERALL LENGTH : 310.5cm

• HEIGHT :54.5 cm

• WEIGHT (ALUMINUM VERSION) : 4.9Kg

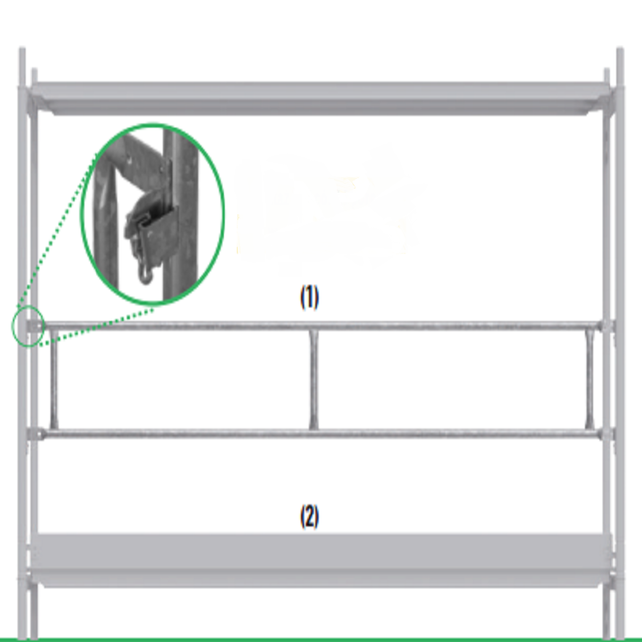

The double handrail, both in steel and aluminum, consists of two handrails single - pipes flattened at both ends, where the plates are then welded during assembly, it is placed in pockets with wedges, among others frames, handrail posts, posts handrail with protection of the platform and front frames, and the whole is connected to a vertical frame bars.
It acts as both the main railing and the intermediate railing, acting together with the curb complete railing

(railing = main and intermediate railing (double railing (1)) + curb (2)).
