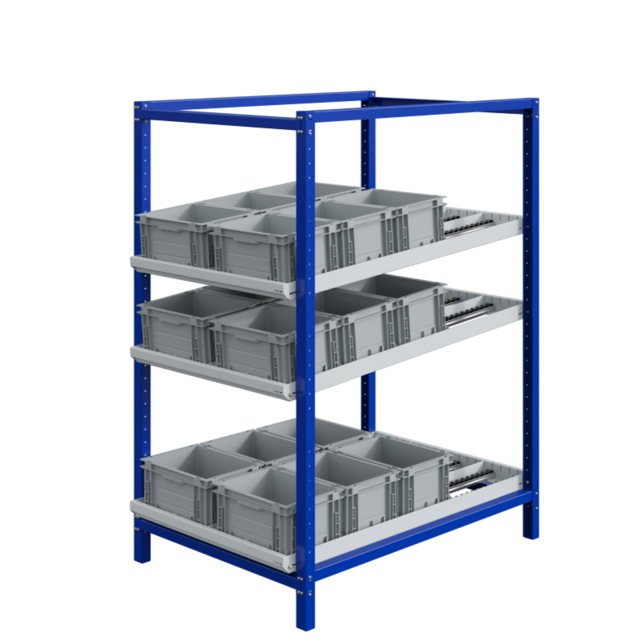

Fifo Rack with roller Track 3 levels D1360xH1800mm

Fifo Rack with Roller Track 3 levels D1360xH1800mm

The FIFO Rack consists of four uprights made of 25/10th sheet steel, four crossmembers made of 25/10th sheet steel, four crossbars made
of 25/10th sheet steel, and three levels made of 20/10th sheet steel equipped with 30mm diameter roller track rails or painted 12/10th
steel sliding plates.
The FIFO Rack can be entirely disassembled. They are equipped with three tops, either with roller track rails and longitudinal separators or
with a sliding plate. The top inclination ranges from 0 to 12° in steps of 2°. There is the possibility of adding tops, roller track rails with a pitch
of 45mm, or dividers with a pitch of 45mm.

Load capacity per rack: 300kg.
Load capacity per top: 100kg.

Tops are height adjustable!

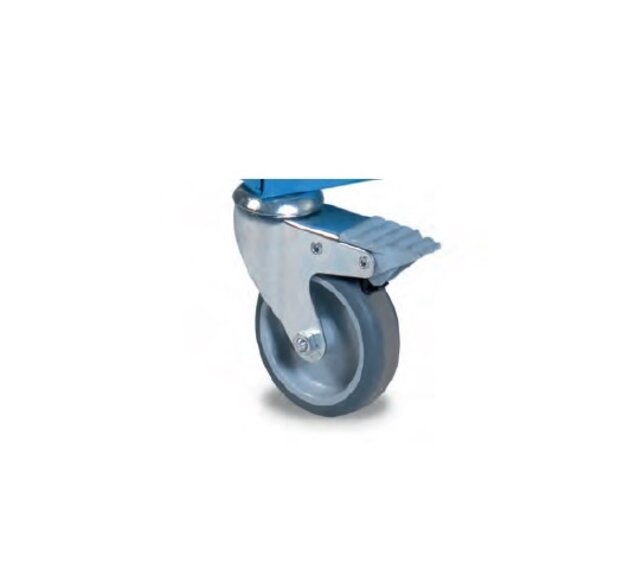

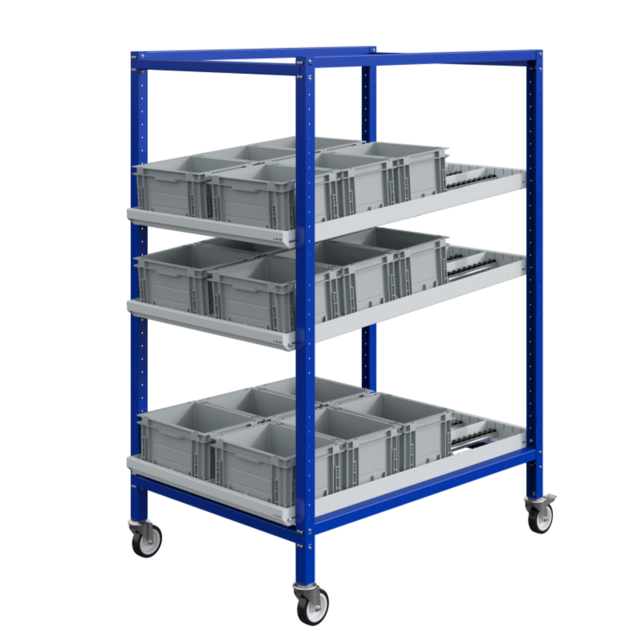

The rack can be equipped with 125mm diameter castors with rubber tyres, two of which have brakes, or height adjustment cylinders.
Upon request, racks are available as a lateral following model. The metallic structure is finished with a fine-textured structured epoxy
powder paint, oven-polymerised at 180°C.

Dimensions:

• Width : 975, 1410 mm

• Depth: 1360 mm

• Height: 1800mm

Optional:

• Wheels 2 swivel with brakes + 2 fixed

• Additional Roller track top D1360mm

• Additional Metal top

• Additional Roller Trail rail for tops

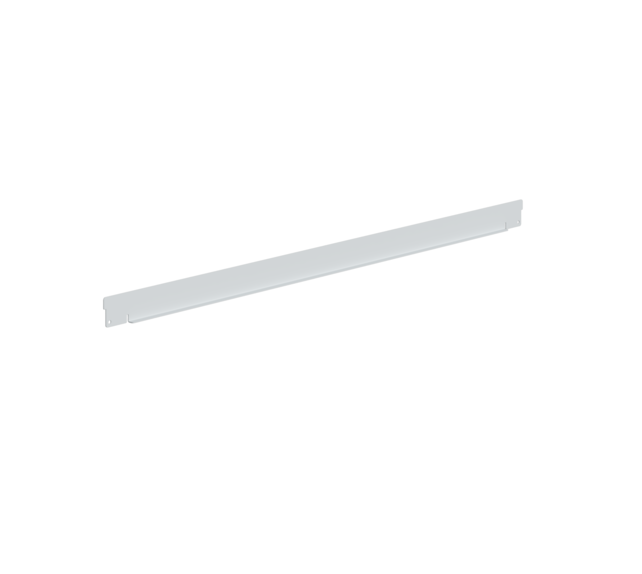

• Additional Divider for roller track tops

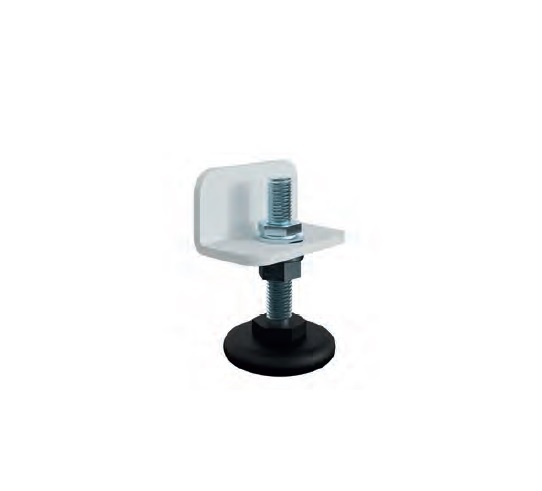

• Kit of 4 height-setting jacks of 30mm

Made in France
