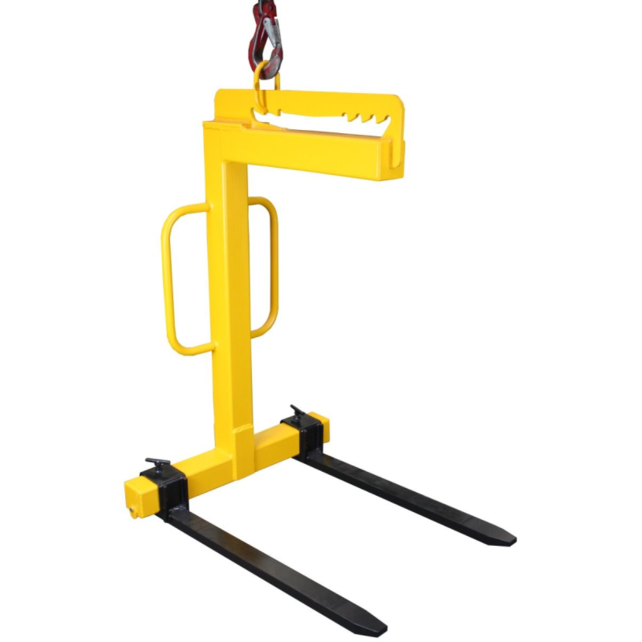

Extendable Height Pallet Hook for a Truck-Mounted Crane

Pallet Hook Loader Crane - Extendable in Height - Mounted Crane

Forks Adjustable in width The forks are easy to move by turning the screws mounted on top of the fork holder.

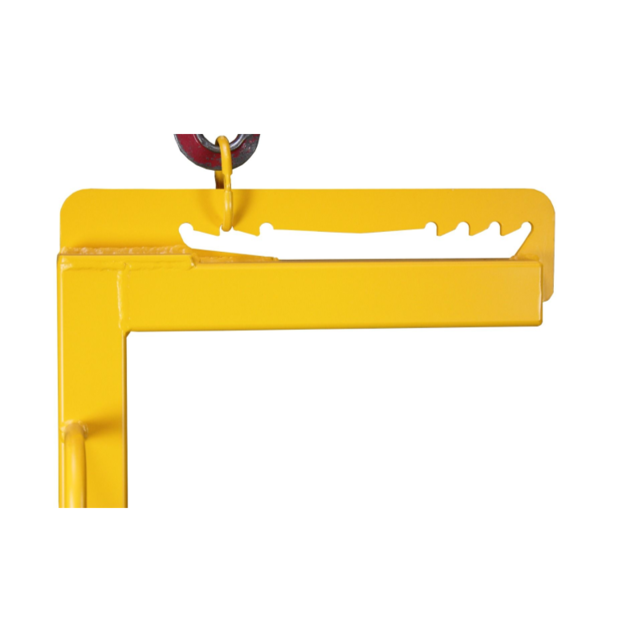

The SBCFEXT pallet hook is adjustable in height. The maximum useful height of the SBCFEXT is 1700 mm. The height is adjustable in steps of 125 mm. It is easily adjusted by removing the retaining clip and pin from the frame and raising or lowering the upper part of the frame to the desired height before reinstalling the pin and retaining clip.

The balance control is manually adjustable by means of a top link.

• Adjustable forks Width : 400-1000mm

• Height = 1200-1700mm

• Load Capacity of 1500Kg, 2000Kg, 2,500 Kg and 3,000 kg

• Finish: Painted yellow

• Standard: NEN-EN 13155

With a safety factor of 4:1 and compliance with the latest standards and CE directive, you are assured of a safe and high-quality product.

Please note that the load must not exceed the fork length.
