Stationary lifting table 1200x800mm 500kg Lift min max 190-900mm

Electric Scissor Lift Table – 1200x800 mm – 500 kg – 190–900 mm Lift

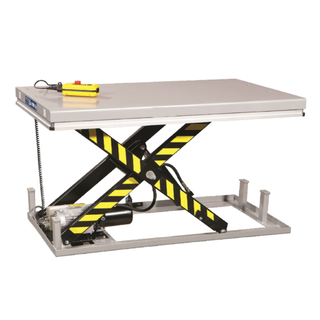

The SBHTHW502Y electric scissor lift table is a powerful and reliable solution for lifting heavy loads with ease. Designed for industrial and workshop use, this stationary lift table offers a spacious 1200x800 mm platform, a lifting capacity of 500 kg, and a lifting range of 190–900 mm.

Built with safety and efficiency in mind, the SBHTHW502Y includes maintenance-free pivot bushings, a low-noise power pack with overload protection, and a safety valve to prevent unintentional lowering in the event of a hose failure. The large safety clearance between the scissors reduces the risk of injury during use. This model is fully compliant with EN1570-1 safety standards.

Key Features:

• Load Capacity: 500 kg
• Table Size: 1200 x 800 mm
• Lifting Height: 190–900 mm
• Base Frame: 1180 x 680 mm
• Lift Time: 15–20 seconds
• Power Supply: 3-Phase, 380V / 16Ah
• Motor Power: 1.1 kW (50 Hz)
• Construction: Stationary single-scissor design
• Weight: 122 kg
• Safety Features:
  • Hose burst protection
  • Internal drainage lift cylinder
  • Built-in overload valve
  • Large safety clearance between scissors
  • Conforms to EN1570-1

This electric scissor lift table is ideal for assembly lines, packing stations, or any workspace that requires ergonomic lifting and positioning of heavy materials.
