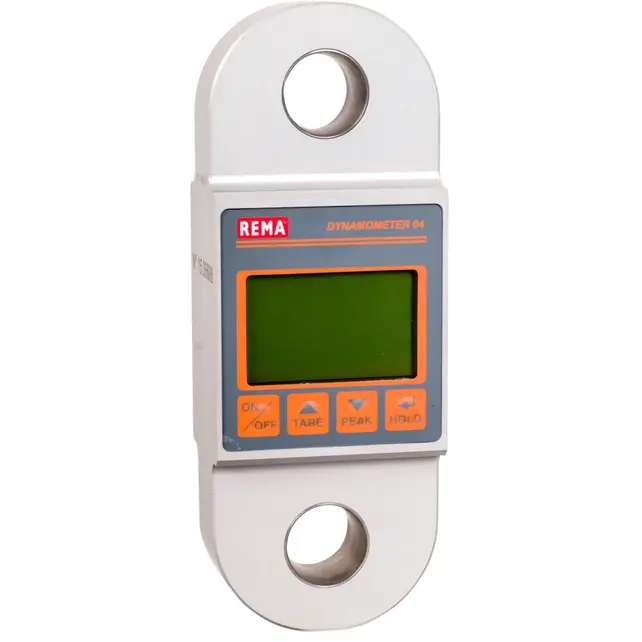

Dynamometer 04 Anodized aluminum housing1.25T up to 20T IP65

Dynamometer 04 Anodized aluminum housing1.25T up to 20T IP65

Mechanical properties

• Anodized aluminum housing.
• Protection class IP 65.
• Overload indication at 10% inconvenience.
• Test load 2 x WLL.
• Safety factor 5 x WLL.

Electrical specifications

• Alkaline battery (9V type).
• Battery operating time about 100 hours.

Electronic specifications

• LCD display with 5 positions, digit height 17 mm.
• Operating temperature range between -10° C to + 55° C.
• Accuracy up to approx 0.15% of the reading value.

Functions

• Automatic resetting when switched on.
• Easy-to-use menu: ON/OFF, tare, peak value and hold buttons.
• Self-calibrating at zero and weight values.
• Readout possibilities: gross, net and tare weight.
• In peak value function, maximum weight is held.
• In hold function, current weight is held.
• Measuring unit selection (kg - t - ton - lbs - daN - kN).
• Automatic power supply OFF.

Option

• Bow shackle from10T.

• Marking: According to standard, CE-marked
• Standard: EN 12100, EN 13155, EN 13889

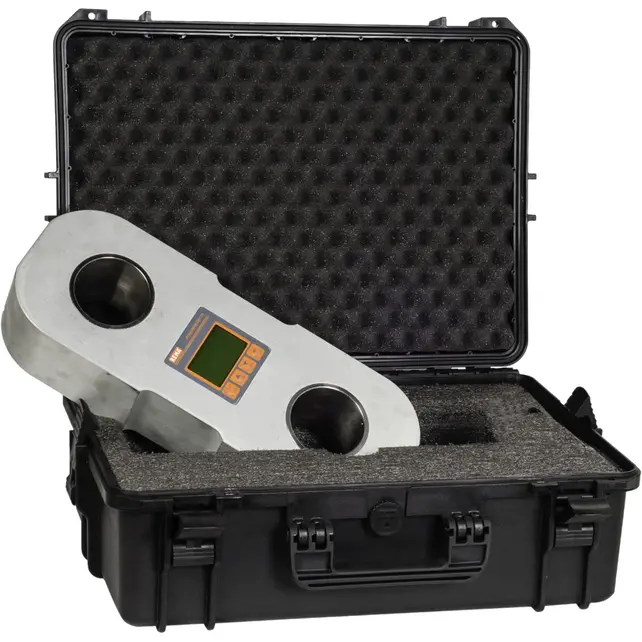

• Note: Includes plastic case, manual and calibration report.

• Safety factor: 5
