Heavy Duty Clamp for Drum lifting 500Kg CE

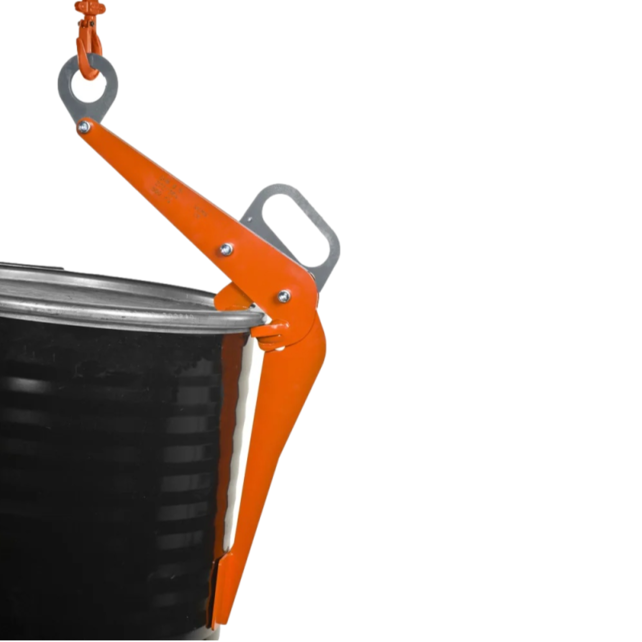

Lightweight heavy duty SBDCTVB clamp for upright drum lifting

Application

• Designed for lifting, handling and transporting of (oil) drums, where the drums have to stay in a upright position

• Single clamp application on empty or filled drums

• During lifting and transportation the centre of gravity of the drum is always below the lifting point

• Jaw openings available from: 0 to 25 mm

• Working load limit (WLL) 500kg

Features and benefits

• Lightweight design for easy handling in tight spaces between other drums

• Tough quality heavy duty welded shell body

• Equipped with a manual safety lock mechanism so that the clamp is locked in the open position

• Maintenance-friendly, easy to exchange parts which are available upon request

Specifications:

Load Capacity (kg) :600

Properties:

• Intended for safe lifting and handling of barrels allowing the lifted barrel to be held steadily in the vertical position.
• Easily operable locking mechanism.
• Complete with suspension eye.

• Marking: According to standard, CE-marked
• Standard: EN 13155, EN 12100

• Safety factor: 4

5 years warranty

The TVKH lifting clamps meet all standards and requirements like: European Norm NEN 13155, American Norm ASME B30.20-2010, Australian Norm 4991and European Machine Directive 2006/42/EC.
