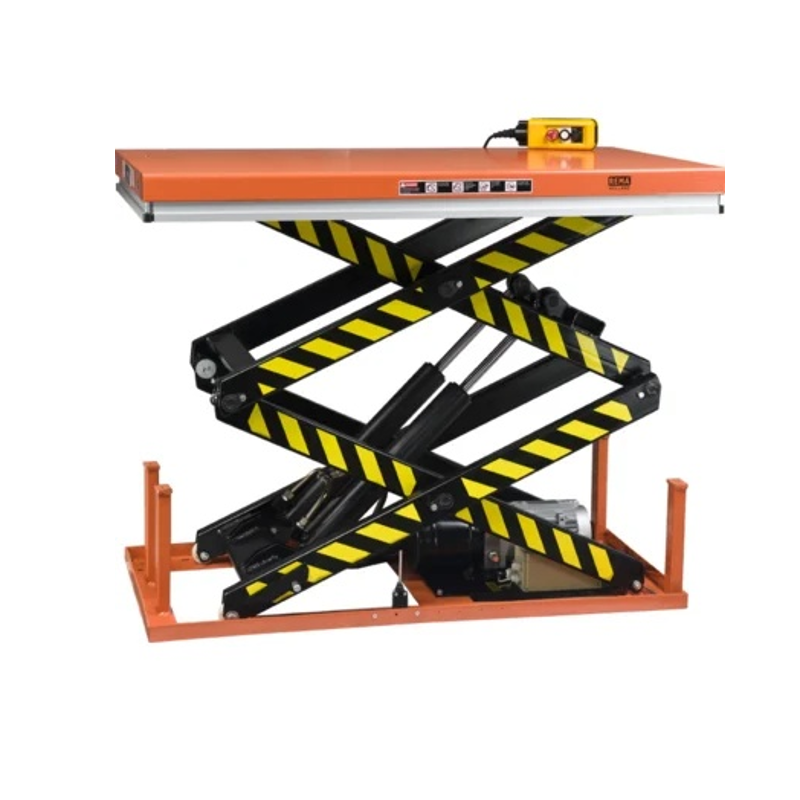

Double scissor stationary lifting table

Features

Available in 1Ton 2 Ton and 4 Ton versions

Specifications:

• Length:1700mm
• Width: 1200mm
• Height Lowered: 448mm
• Height (max lift): 2098mm
• Load capacity: 4000Kg
• Net Weight: 520Kg
• Motor: 2.2KW
• Lifting time (sec): 55
• Lifting cycle/hour: 8
• Current (VAC): 400
• Protection level: IP54
• Control voltage (VAC): 24

The table can be mounted both on the floor and in the floor.

Properties

• This lifting table is equipped with an aluminium safety frame.
• Overload protection.

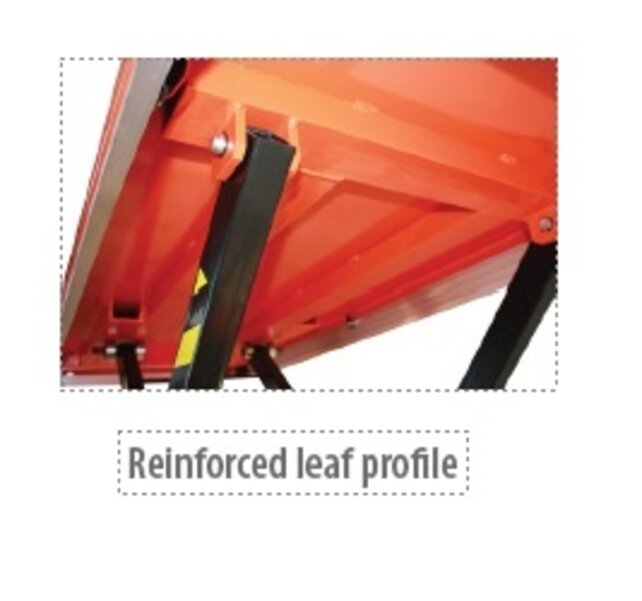

• Solid steel scissors.
• Special valve for controlled descent.
• Hose rupture safety valve.
• Lifetime lubricated bearings.
• Operating voltage 400V, control voltage 24V.
• Protection class IP54.

Hard chromed cylinder and piston rod.

Standard delivery

• Includes 24 V push button switch with emergency stop.
• Removable lifting eyes for easy transport.

• Marking: According to standard, CE-marked
• Standard: EN 12100, EN 13157

Brand : REMA

Made in Hollands

INCLUDING 3RD PARTY CERTIFICATE

Salesbridges offer The Double Scissor Stationary Lifting Table is an exceptional solution for lifting and transporting heavy loads with ease and safety. Available in 1 Ton, 2 Ton, and 4 Ton versions, this versatile table features a robust 2.2KW motor and can be mounted on or in the floor, adapting to your workspace needs. Engineered with an aluminum safety frame and solid steel scissors, it ensures secure lifting with overload protection and a controlled descent valve. Additionally, the hard chromed cylinder and piston rod enhance durability, while lifetime lubricated bearings minimize maintenance. With CE marking and compliance with EN 12100 and EN 13157 standards, this lifting table is designed for reliability. Operating at 400V with a 24V control voltage, it also includes a 24V push button switch with an emergency stop for added safety. Choose the REMA Double Scissor Stationary Lifting Table, proudly made in Holland, to elevate your operational efficiency today!
