Demolition and recycling electrical crusher 490 x 300 mm crushing mouth

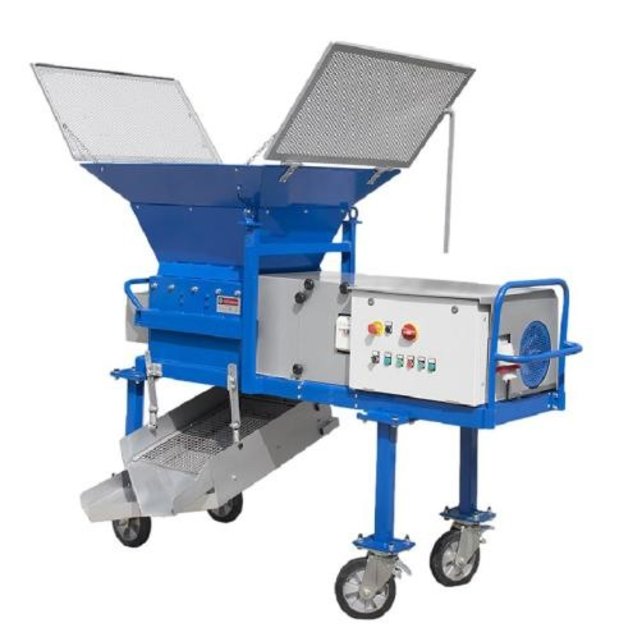

Electrical crusher 490 x 300 mm crushing mouth

 Solution for recovering and re-using demolition material, reducing volume directly on site. High-strength steel breaking chisels cut through any material, assisted by an automatic reverse mechanism in the event of jamming.
The compact size of our equipment enables ease of mobility and access in restricted areas on site, where larger machines cannot be used.

Description :

Electric crushing mills for the crushing of all construction materials, concrete blocks, granite, stones, lava stone, asphalt. Equipped with two rotating shafts with special high-strength steel knives, it has a slow rotation that makes neither noise, nor dust.

The Universal crusher by Salesbridges is equipped with easy start, enlarged loading hopper 1000 x 1140 mm,
crushing mouth 490 x 300 mm.
The electrical panel is well dimensioned and contains device for the alternative rotation of the two shafts and the safety devices.
Crushes debris, bricks, bent tiles, rubble, hard stones, glass, tuff, asphalt, reinforced concrete, travertine, marble.

Technical information

• Electric motor three-phase 400 Volts. 50 Hz

• Power Kw (Hp) 7.35 (10)

•  Motor guard

• Loading hopper enlarged mm   1000 x 1140 with Crushing area mm   490 x 390

•  Adjustable and removable unloading hopper

• Unloading hopper supplied with 8 mm perforated plate.

• 4 rubber wheels Ø 280 mm including 2 swivel with brake

• 2 hooks for lifting, 2 handles for transport

• Production per hour: 4 to 8 m3/h

• Weight 800Kg

• Over all Dimensions  780 x 2200 x 1500

Options:

             -Two safety lids for the closure of opening mouth are supplied under  Motor power 7,5 KW

Processing phases and technical details

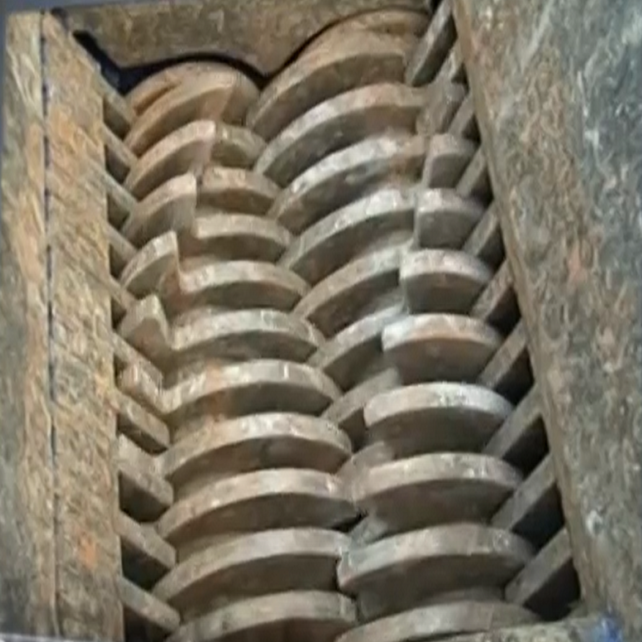

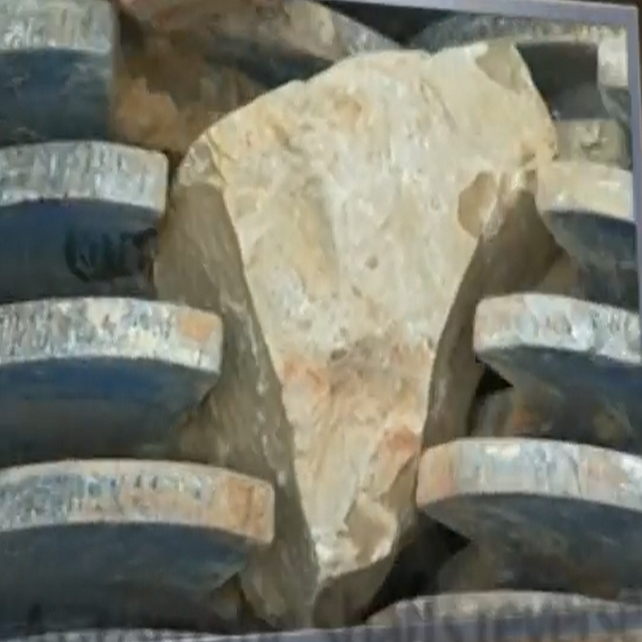

• Two rotating shafts with special steel knives

• Two rotating shafts with special steel knives on job sites.

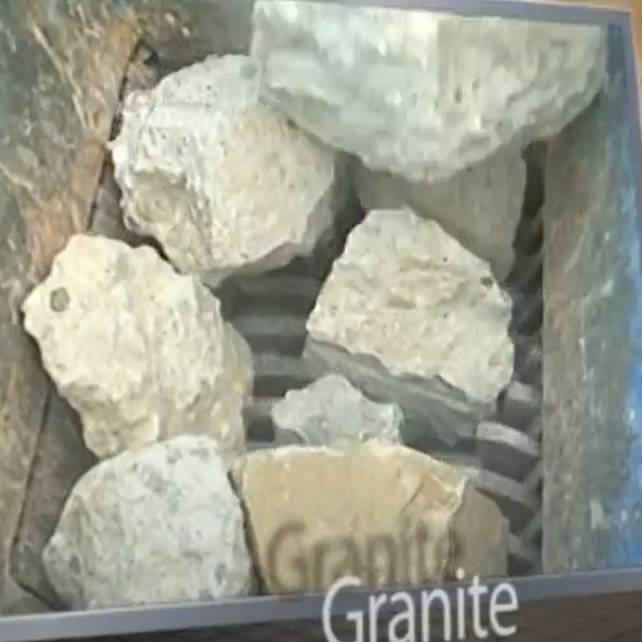

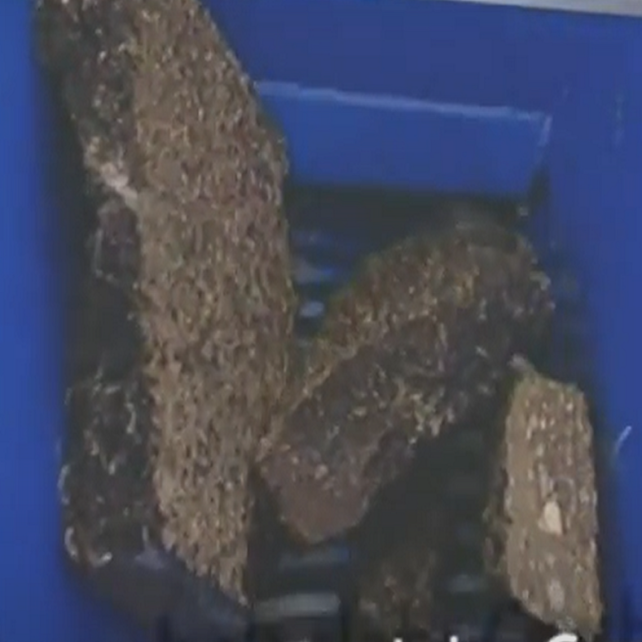

• Full loading of the hopper. Only possible if the material is not very hard and not large in size

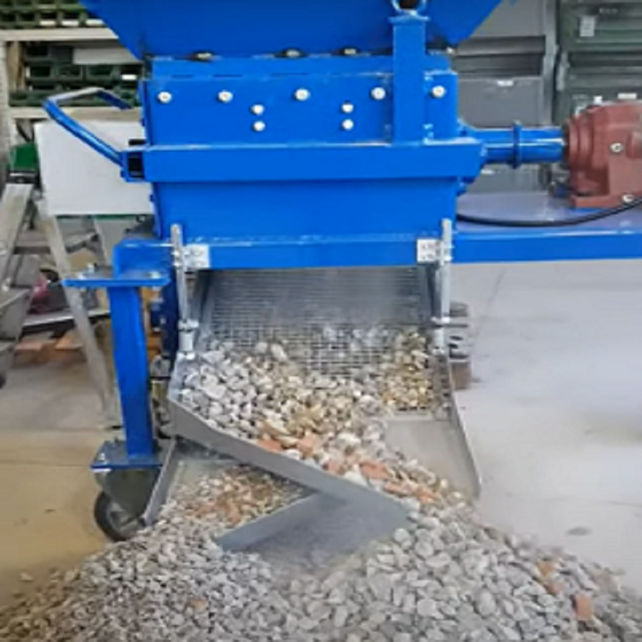

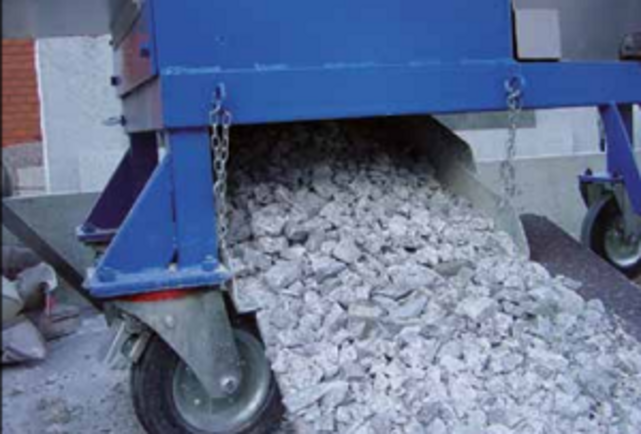

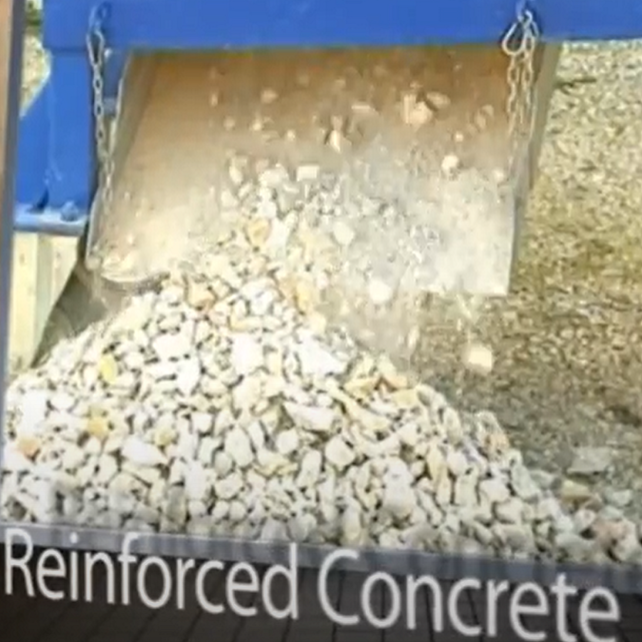

• Exit of the material from the unloading hopper.

Extremely robust components: motor, drive shaft reducer. In ten years of work of the crushers, a replacement has never been
provided.

MADE IN ITALY
