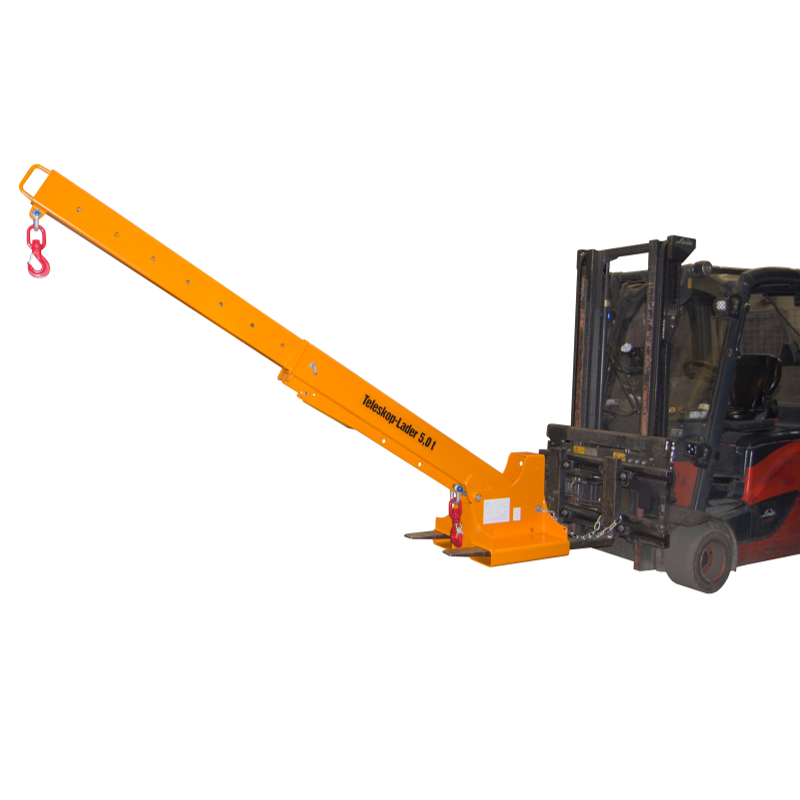

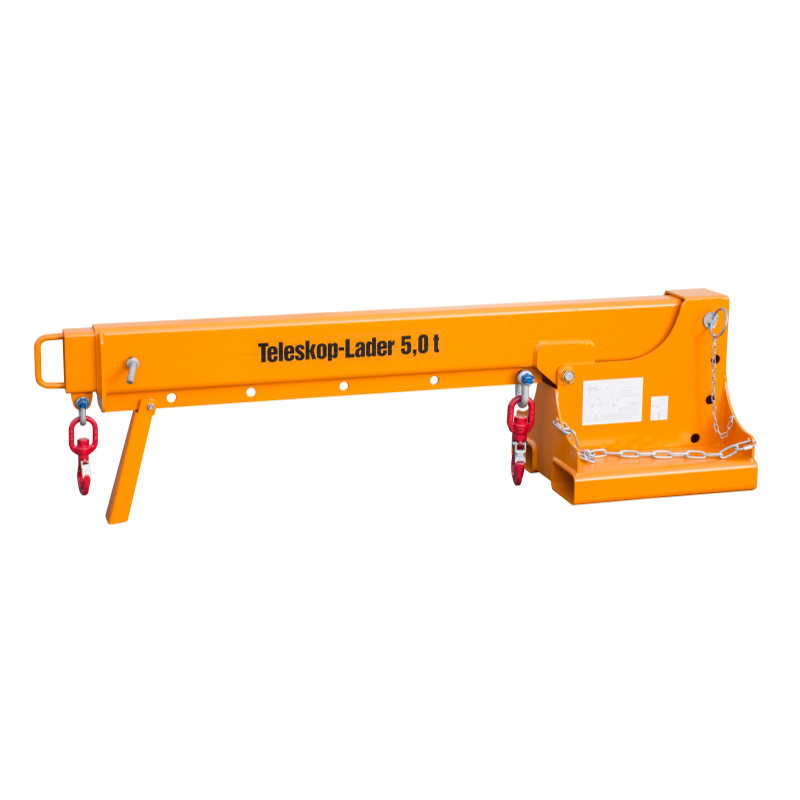

Crane Jib 5 T for Forklift up to 3.6 meter Lifting Extendable Arm. and Adjustable Angle

 Crane Jib 5 T for Forklift up to 3.6 meter Lifting Extendable Arm. and Adjustable Angle CE

Rigid Construction carne jib for forklift, A crane arm increases the reach of the forklift truck

Features:

variable working height, can be fixed in each of the positions using the pin provided.

Choice of 3 angles: 15°, 30° or 45°

• secured by chain to prevent slipping

• Extensible constructions

• Extension arm is positioned inside the shell and can be extended in 8 steps to reach full length; locked in position using the pin provided

• 14 possible positions; 2 swivel hooks

• Stable steel construction,

• optional rigid or height-adjustable/tilting load arms,

• interior arm extendable and securable with locking pins in the extended position.

• Durable and safe

• 1 or 2 swivel hooks

• CE certified load hook and D-closure

• WLL: 5Ton (Available in 2.5T version)

• Dimensions (l x w x h) mm: 2160 x 500 x 520

• Weight: 235 Kg

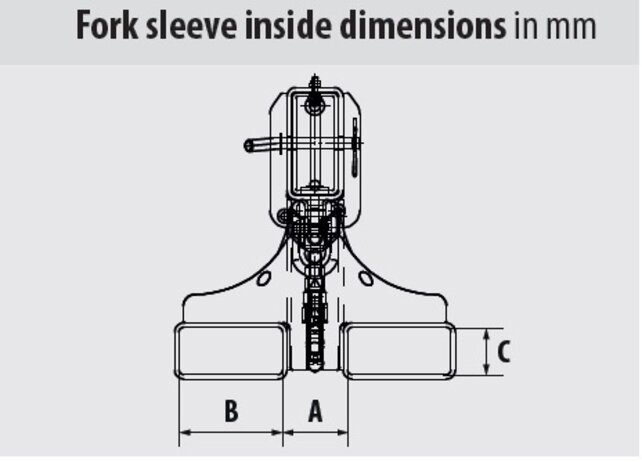

Dimensions for inside forks sleeves in mm:

A: 166 - B: 184  C: 84

Remember to check the load capacity of the forklift truck in question!

Max load per position (Kg):

P14: Full extended

Lifting beam with rotating load hook up to 5000 kg is the ideal hoisting accessory, when it comes to a safe and secure handling. High-quality lifting beams, made from durable steel and powder coating finishing for a longer life span. Easy to mount on forklifts and secure against slipping. Hoisting beam comes with certified load hook and D-closure. Guaranteed of a high quality and safe product.
