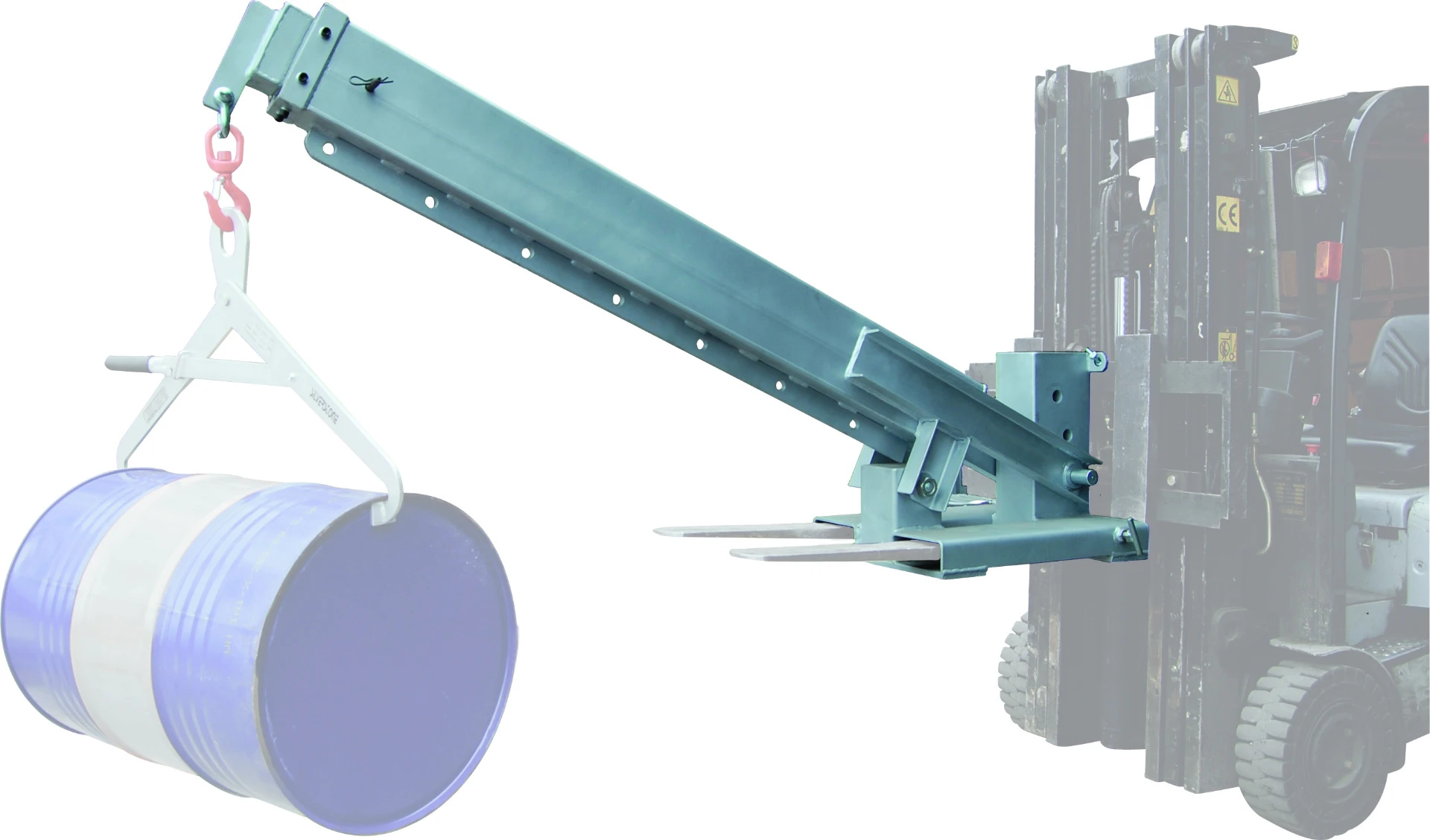

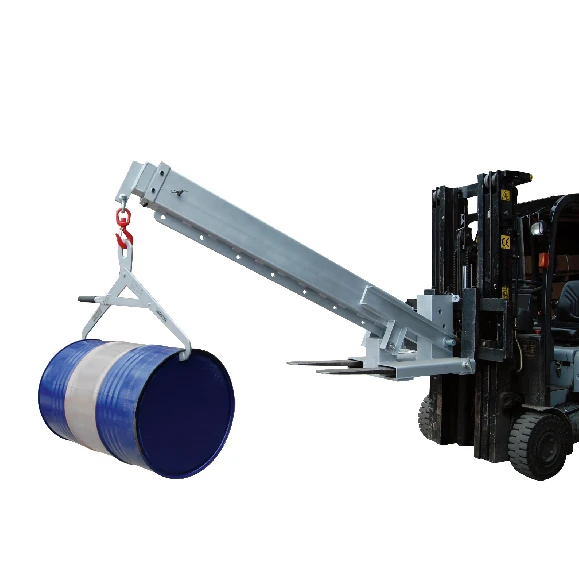

Crane Jib 3 T for Forklift Extendable Lifting Arm Up Telescopic fork up to 3726mm

 Crane Jib 3 T for Forklift Extendable Lifting Arm Up To 3.7 Meter

Useful fork truck crane for heavy loads where it normally is hard to access/reach. The crane is adjustable in height up to 40 degrees and reaches 3726 mm at most.

Please note that load capacity drops the further the hook is from forklift

Application

• Ideal for all kinds of disassembly and assembly work.

• According to Standard: EN 12100, EN 13155, EN 1677

Rigid Construction crane jib for forklift, A crane arm increases the reach of the forklift truck

• secured by chain to prevent slipping

• Extensible constructions

• Extension arm is positioned inside the shell and can be extended in 8 steps to reach full length; locked in position using the pin provided

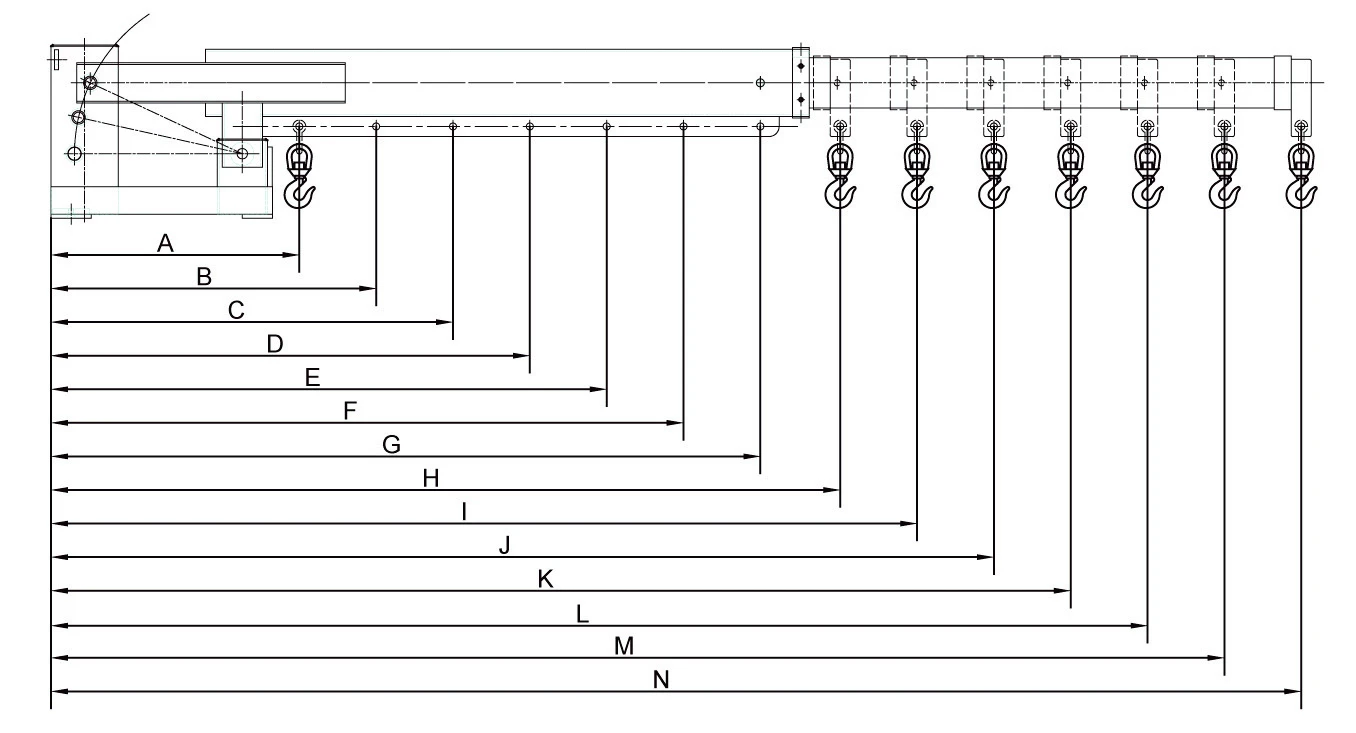

• 14 possible positions; 1 swivel hook

• Stable steel construction,

• optional rigid or height-adjustable/tilting load arms,

• interior arm extendable and securable with locking pins in the extended position.

• Durable and safe

• Fork inserts 3000 kg = 225 x 80 mm

• CE certified load hook and D-closure

• WLL: 3Ton

• Minimum Length : 2165 mm

• Maximum Length : 3740 mm

• Dimensions (l x w x h) mm: 2160 x 643 x 520

• Weight: 280 Kg

Lifting beam with rotating load hook up to 3000 kg is the ideal hoisting accessory, when it comes to a safe and secure handling. High-quality lifting beams, made from durable steel and powder coating finishing for a longer life span. Easy to mount on forklifts and secure against slipping. Hoisting beam comes with certified load hook and D-closure. Guaranteed of a high quality and safe product.
