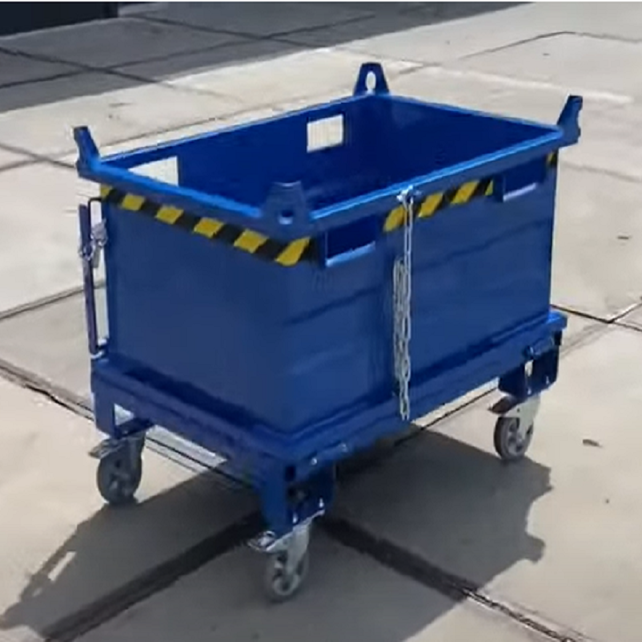

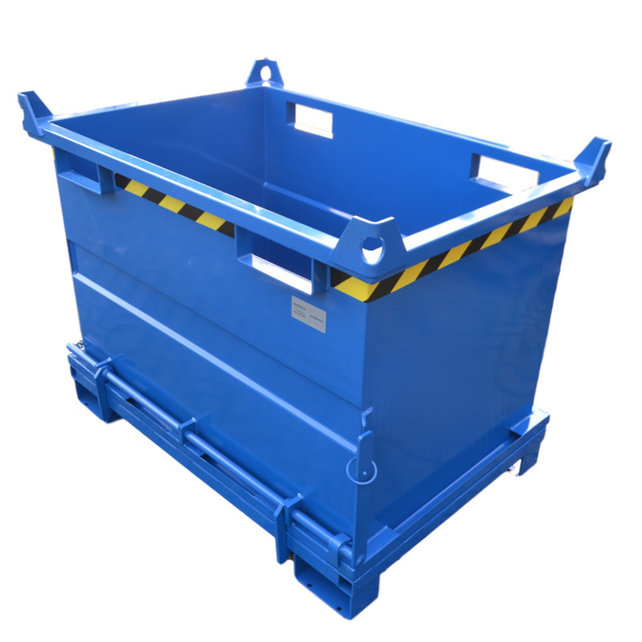

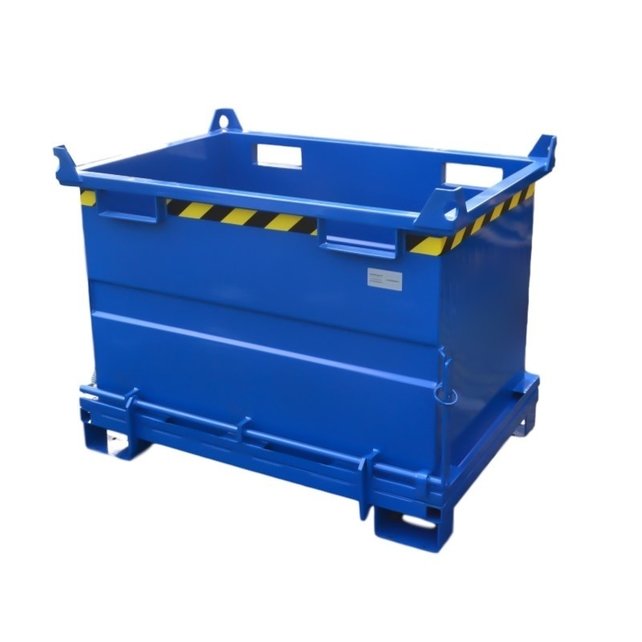

Chip Container 1000L (35.3 cu ft) with Lifting Eyes Hinged Bottom Tipper Container for Forklift and Crane BB-Model

Chip Container 1000L with Lifting Eyes Hinged Bottom Tipper Container for Forklift and Crane BB-model

• Length: 1394 mm

• Width: 932 mm

• Height: 1290 mm

• Weight: 179 kg

• Payload: 1000 kg

• Volume: 1000L

• Plus: Lifting Eyes

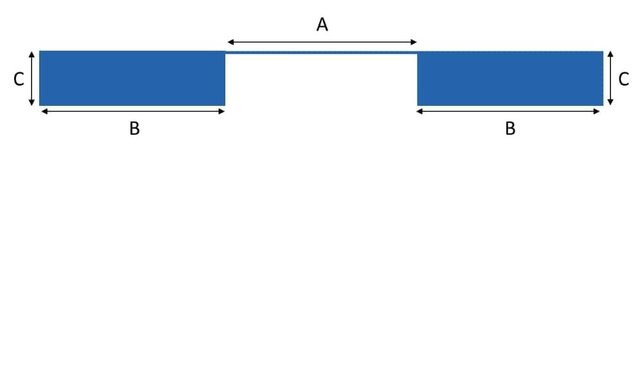

• Dimensions of lift pockets: (A) 550 mm x (B) 220 mm x (C) 80 mm

• Without wheels

• Options wheels: nylon or PU wheels, Grey elastic rubber, not mounted

• Option: mounting wheels - only in combination with a wheelset to your choice!

• Material: steel

• Finishing: powdercoating

• Color: RAL5010

• Suitable for forklift and crane

• Container steel plate: 3 mm

• Excellent center load gravity

Other RAL-colors available upon request.

Chip Container Hinged Bottom SBTCBB1000L with Lifting Eyes. Suitable for forklift and crane.

Option Wheel set  :

- 2 fixed (front) & 2 swivel + brake (back) Heavy duty Elastic grey rubber 125mm diam. load capacity 400kg/wheel.

- 2 fixed (front) & 2 swivel + brake (back) Heavy duty   Polyamide White neylon 150mm diam. 800Kg/wheel.

- 2 fixed (front) & 2 swivel + brake (back) Heavy duty 160mm 600kg/wheel. Bruin PU for indoor use (concrete floor) No noise, smooth rolling.

PS: the wheels are shipped separately. Simple fixing with M10 screws and bolts which are provided with the wheel set.

BB-model

SBTCBB is a highly valued Hinged Bottom Container, due to its durability. Small industrial vehicles are flexible, maneuverable and can also be equipped with various additional forklift attachments to perform different tasks. This container can be used for, for example, metal, glass, wood, debris. Collecting, storing and transporting with the SBTCBB is possible.

The Hinged Bottom Skip is also very suitable for use on construction sites, because multiple containers can be stacked on each other and transported by truck or crane. Space-saving storage and easily transported.

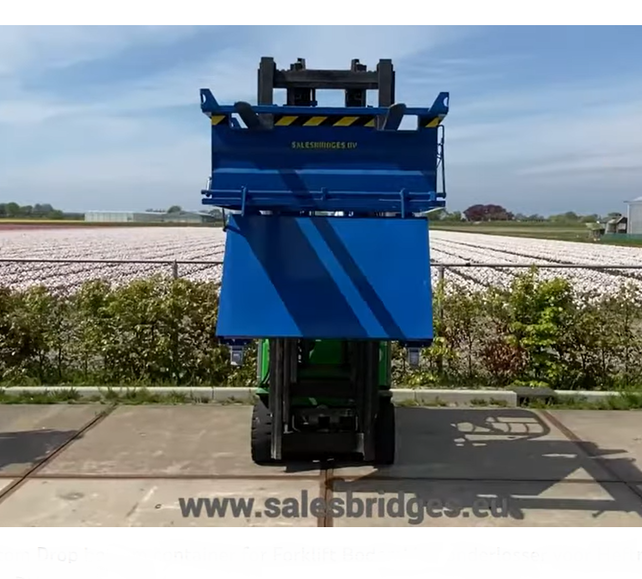

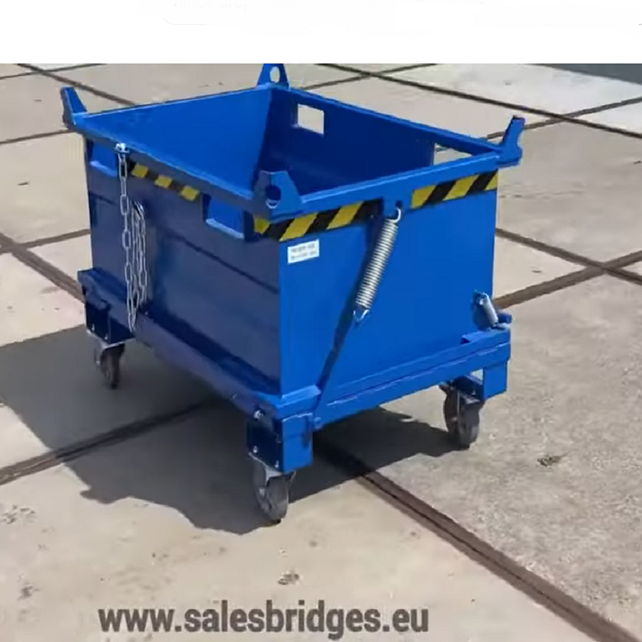

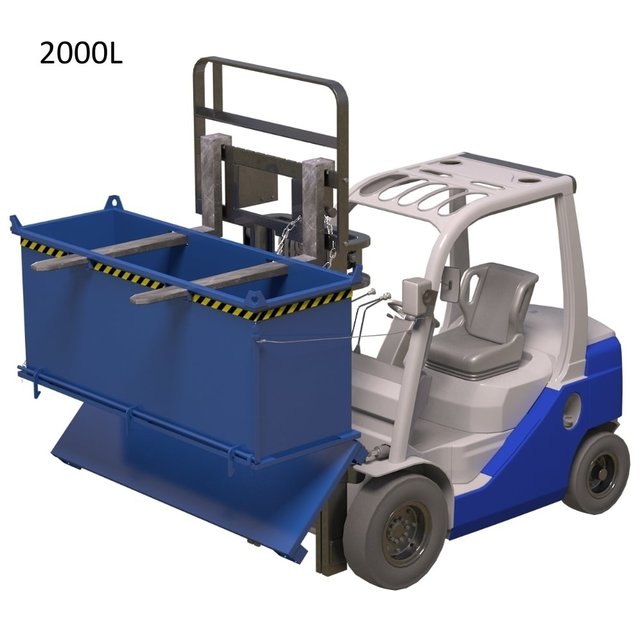

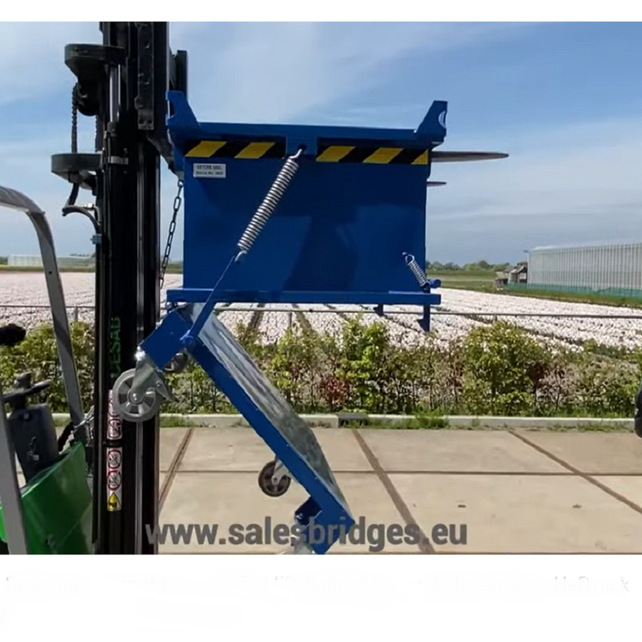

The Tippling Container SBTCKB has a large number of positive features in its functionality. The suspension of the bottom is assisted by tensile springs during emptying. The hinged bottom opens to other side of the forklift, so that emptying can take place without impact on the forklift.

Equipped with a safe and stable unlocking mechanism, which can be operated by a pull cord from the driver's seat. For additional safety, a safety chain can be attached on the forklift. Add a security chain and cable set to your order.

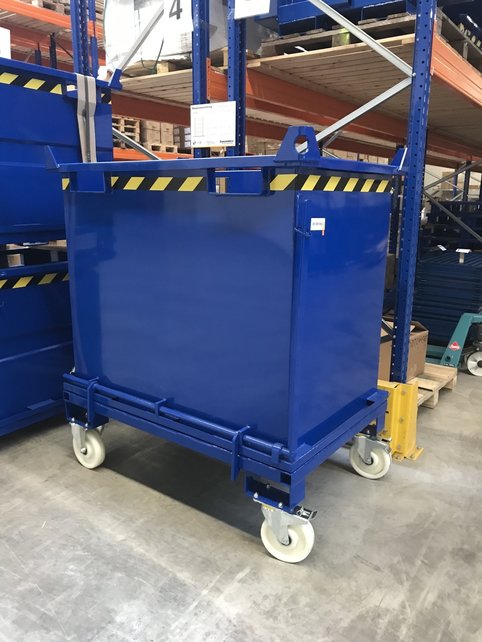

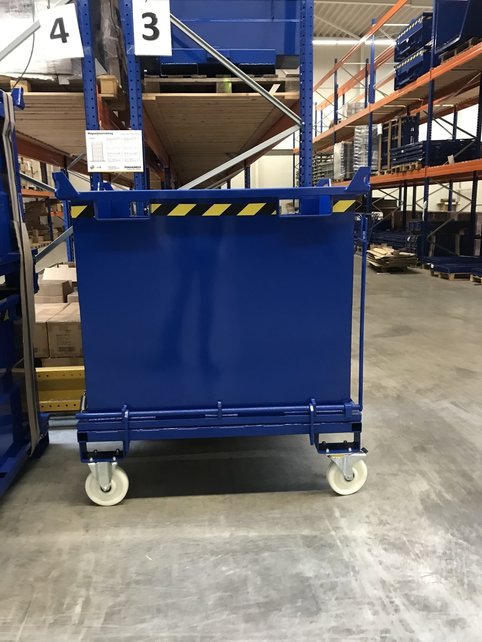

The containers can be ordered with wheels. The wheels are delivered not mounted as a set, including mounting material. You have the choice between polyamide or PU wheels. We can also mount the wheels for you before delivery. Please tick ​​'mounting wheels' for this option.

Thanks to the use of high-quality steel sheets and excellent finishing, the bottom skip containers are very durable and robust. Finishing with powder coating in standard color RAL5010.

Custom work is possible upon request. Also available in other RAL colors upon request.

Hinged bottom container applications: metal, glass, wood, debris and more

Available sizes: 500L, 750L, 1000L, 1300L, 1500L, 2000L
