Industrial Mirror- Check Point

Create your own review

Price on request

Certified by TÜV. Industrial Mirror Check Point, frame yellow-black, acrylic, 30 x 50 cm, 40 x 60 cm, 60 x 90 cm indoor use. Increases the attention at danger spots in production lines, warehouses.

In stock

3-4 Days

Quantity

- +

Price on request

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

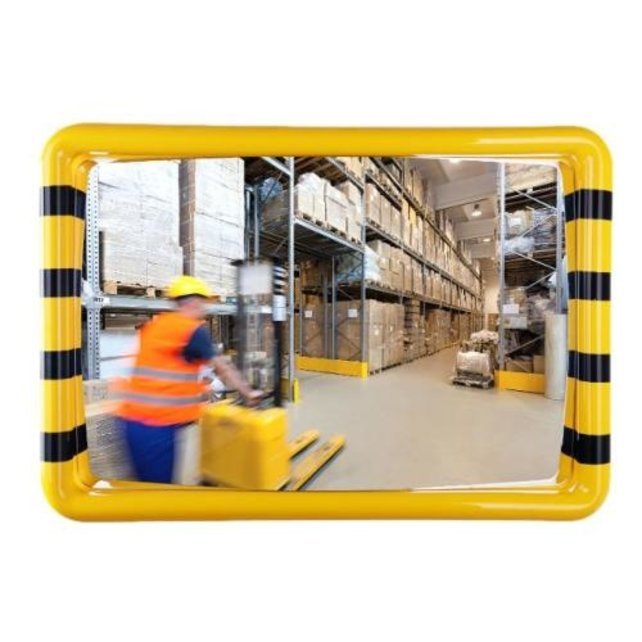

Industrial mirror Check Point, frame yellow-black, acrylic, indoor use

Description

The industrial mirror Check Point increases with its yellow/black warning marking the attention at danger spots in production areas and in warehouses. Distant workstations and blind spots can be inspected easier. Workplace accidents and production downtimes can be minimized. Our Check Point mirror increases the awareness at danger spots in production lines and warehouses. Distant workstations and blind spots can easily be inspected. Accidents in the workplace and production downtimes are minimised

Additional Info

Material

The Check Point mirror is made of acrylic. It has a brilliant mirror image and has been certified by TÜV.

Fixing

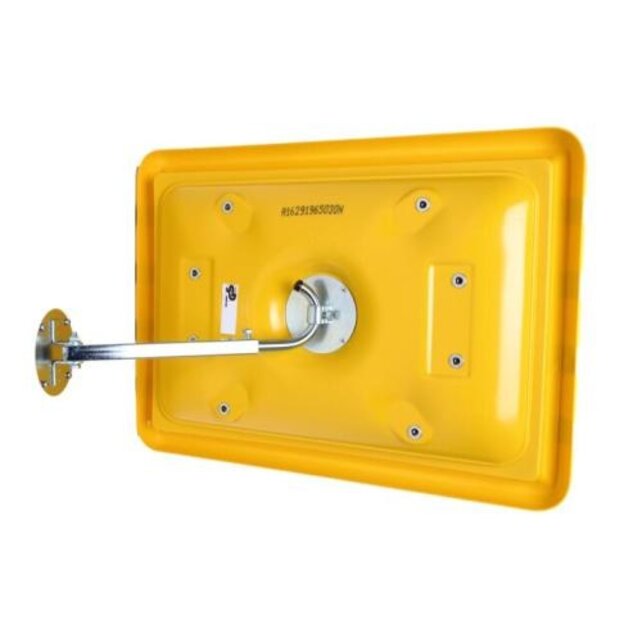

The Check Point mirror is delivered with the fixing material to fix to a wall.

Extra fixing material for the Check Point mirrors 40 x 60 und 60 x 90 cm:

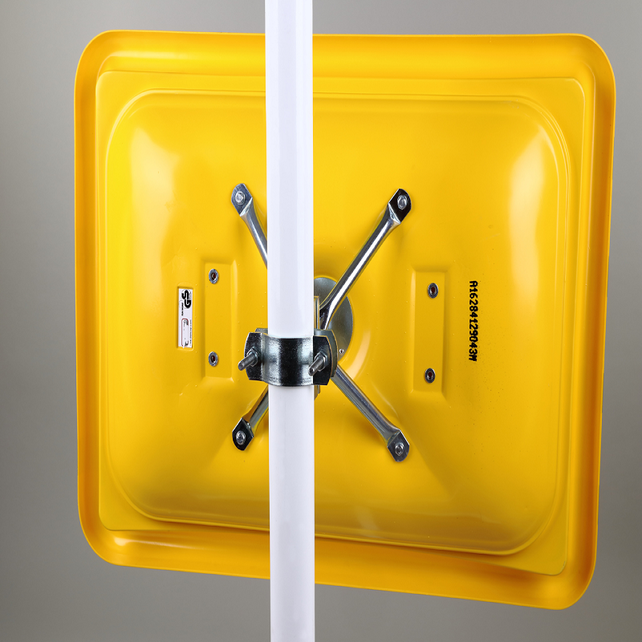

Type I: 4 point ball joint mounting bracket for mounting on walls and posts (Ø 50 – 85 mm),
Type IV: 2 point fixing bracket for mounting on walls and posts (Ø 50 – 85 mm) 2 year functional guarantee.

Specifications:

Mirror plate (cm)	30 x 50	40 x 60	60 x 90
Observation distance (m)	5-7	7-12	12-25
Width (mm)	565	680	990
Height (mm)	360	475	700
Depth/Length (mm)	65	60	70
Material	Acrylic	Acrylic	Acrylic
Surface	UV-resistant impact resistant to DIN ISO 179-1	UV-resistant impact resistant to DIN ISO 179-1	UV-resistant impact resistant to DIN ISO 179-1
Frame material	high-impact Polystyrene (HIPS)	high-impact Polystyrene (HIPS)	high-impact Polystyrene (HIPS)
Frame colour	Yellow	Yellow	Yellow
Net weight (kg)	1.98	2.54	5.5
Mounting location	Wall	Wall	Wall
Mounting	screw together	screw together	screw together
Number of mounting holes	4	4	4
Fixing included	Telescopic wall bracket (30-50 cm)	Telescopic wall bracket (30-50 cm)	Telescopic wall bracket (30-50 cm)
