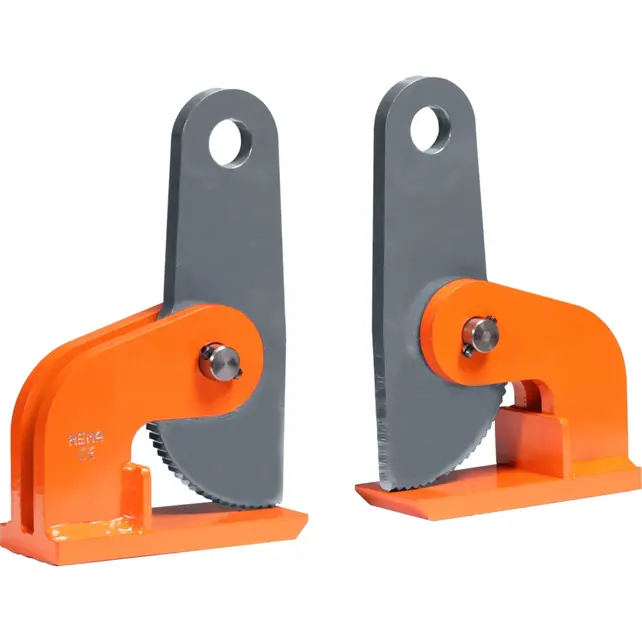

CH horizontal plate lifting clamps 1-10 ton

Lifting clamps for safe transportation of steel plates in horizontal position. For hoisting steel plates up to hardness 37 RC (345 HB).

Properties

• WLL and size of the jaw opening are clearly indicated on the clamp.
• Suitable for hoisting and horizontal transport of steel plates that do not bend.
• These clamps can also be applied under a lifting frame or chain sling.
• Always use in pair.
• Low weight and compact design.
• Safety factor of at least 5 x WLL.
• Each clamp is 2 x WLL testloaded.

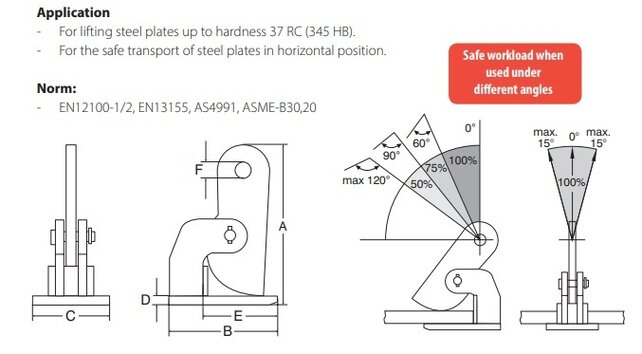

Application

• For lifting steel plates up to hardness 37 RC (345 HB).

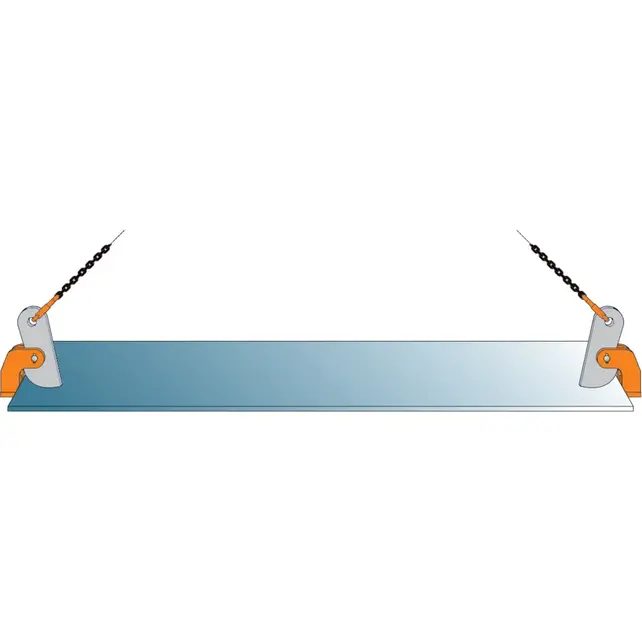

• For the safe transport of steel plates in horizontal position.

• Marking: According to standard, CE-marked
• Standard: EN 13155, EN 12100

• Safety factor: 5
• Made in the Netherlands
