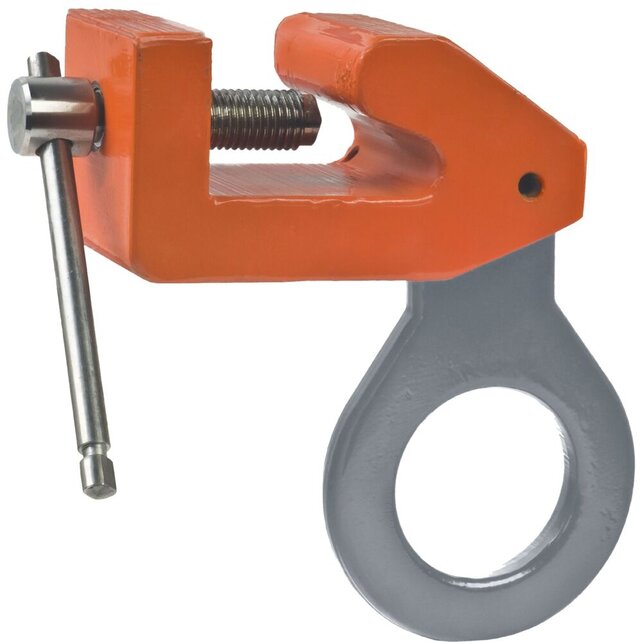

CBS bulb screw clamps fot HP-profiles

Properties

• Equipped with a thread spindle for easy attachment, providing a powerful clamping force on the workpiece
• Lightweight design for easy handling.
• Maintenance-friendly, easy to exchange parts which are available upon request.

Application

• For use as a (temporary) lifting point in spaces with HP- (bulb) profiles, like sectional ship parts and ship engine rooms.
• Used for HP-100 to HP-240 (bulb) profiles.

• Marking: According to standard, CE-marked
• Standard: EN 13155, EN 12100

Available in WLL 1.5T & 3T

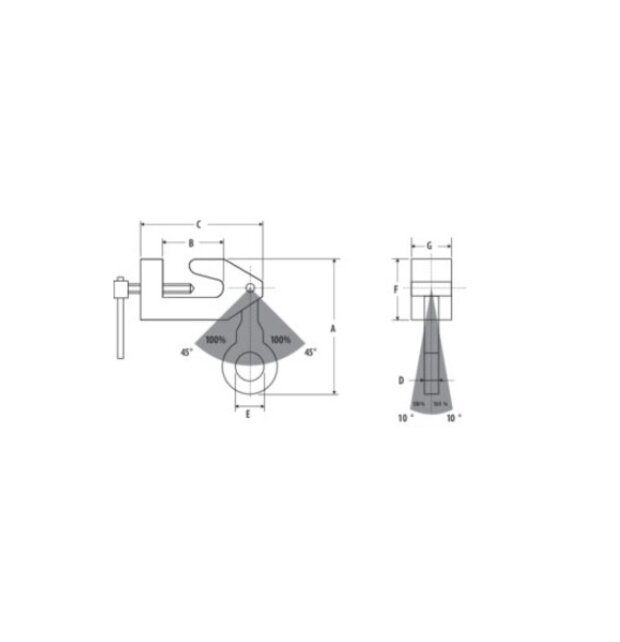

Jaw opening: 100-240mm

Net Weight:

1.5 Ton: 3Kg

3 Ton: 6.5Kg
