Access deck with ladder aluminum /plywood Standard size 307 x 61 cm

Access deck with ladder aluminum /plywood Standard size 307 x 61 cm

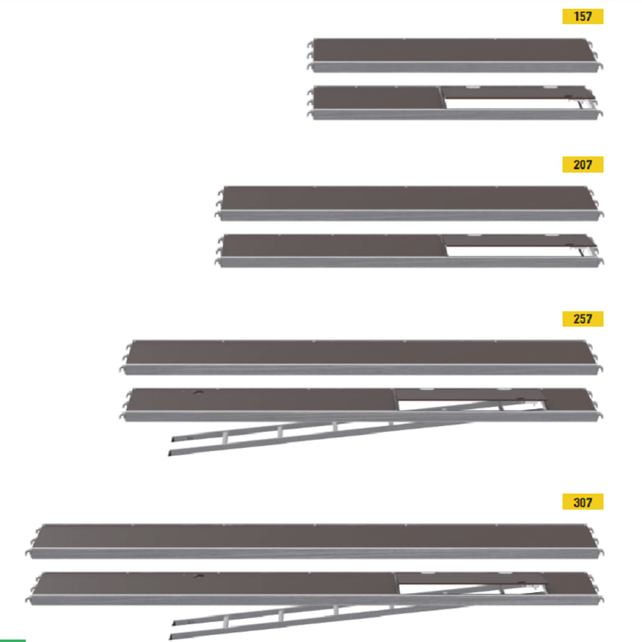

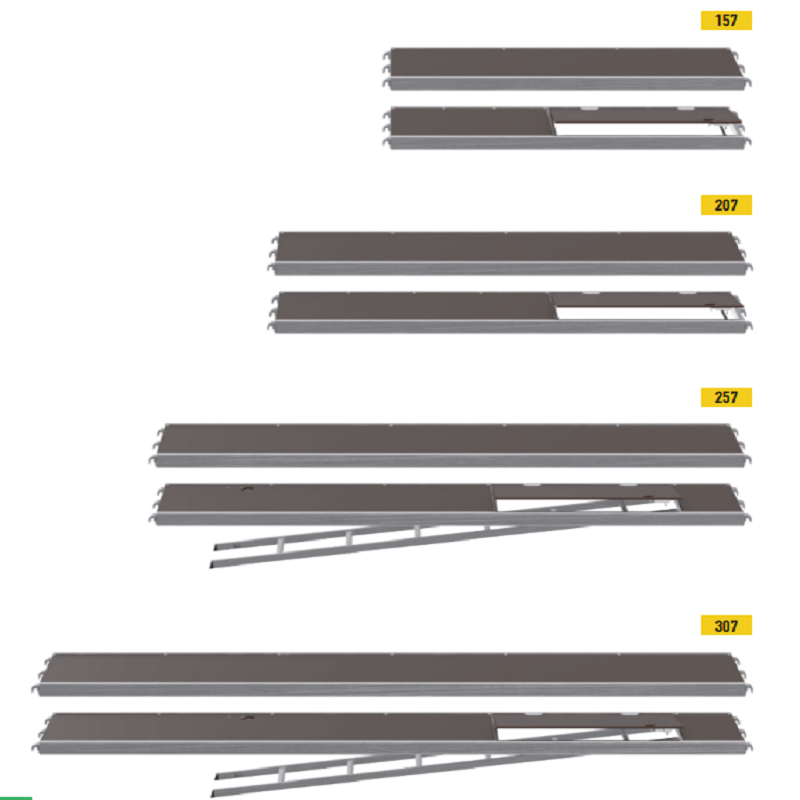

Aluminum and plywood platforms are used both as communication platforms, Comes in 2 models Standard or Heavy ladder

Description Of the standard access deck :

Made of Aluminum frame

Hooks for mounting on the frame U-profile

SYSTEM LENGTH: 3072 mm

OVERALL LENGTH: 3062 mm

OVERALL WIDTH: 605 mm

Weight : 21.2 Kg

Load class : 3

Utility Load : 2 KN/m2

 PLYWOOD THICKNESS : 10 mm

Flap and an aluminum ladder (only for lengths 2.57 m and 3.07 m)

Option  integrated ladder as well as working platforms.

Description of the heavy access deck :

Made of aluminum

SYSTEM LENGTH: 3072 mm

OVERALL LENGTH: 3062 mm

OVERALL WIDTH: 612 mm

Weight : 25.3 Kg

Load class : 3

Utility Load : 2 KN/m2

 PLYWOOD THICKNESS : 10 mm

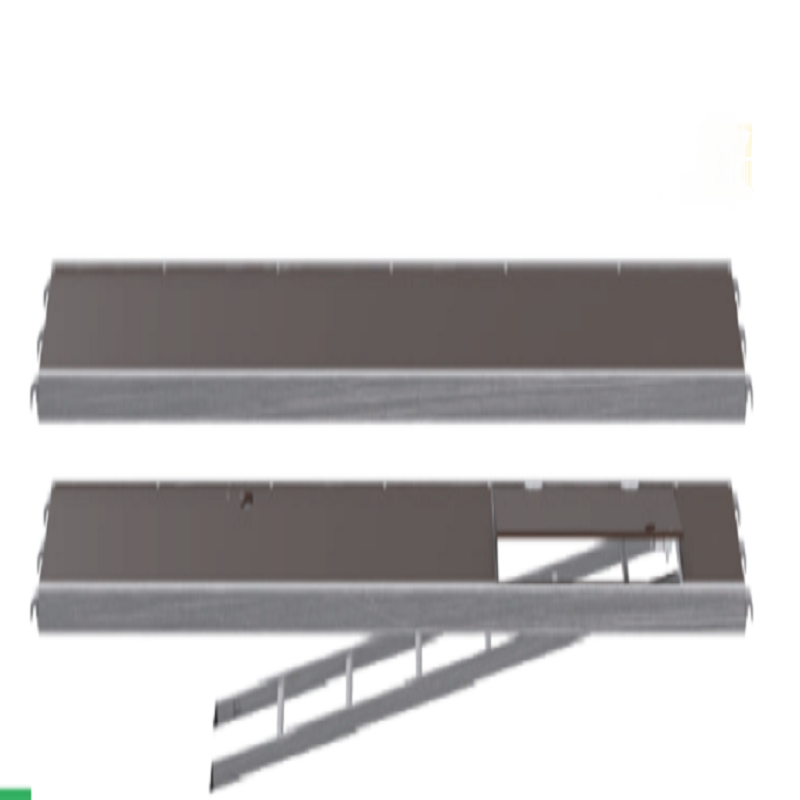

Aluminum and plywood platforms are used both as communication platforms (with or without an integrated ladder) as well as working platforms.
They consist of a welded aluminum frame (with heads having hooks for mounting on the frame U-profile), which is reinforced with crossbars and supplemented with non-slip plywood. In the case of communication platforms, there is also a flap and an aluminum ladder (only for lengths of 2.57 m and 3.07 m). Individual models (STANDARD and HEAVY) differ in the profile used for the longitudinal members of the platform frame and construction of heads.

Option :

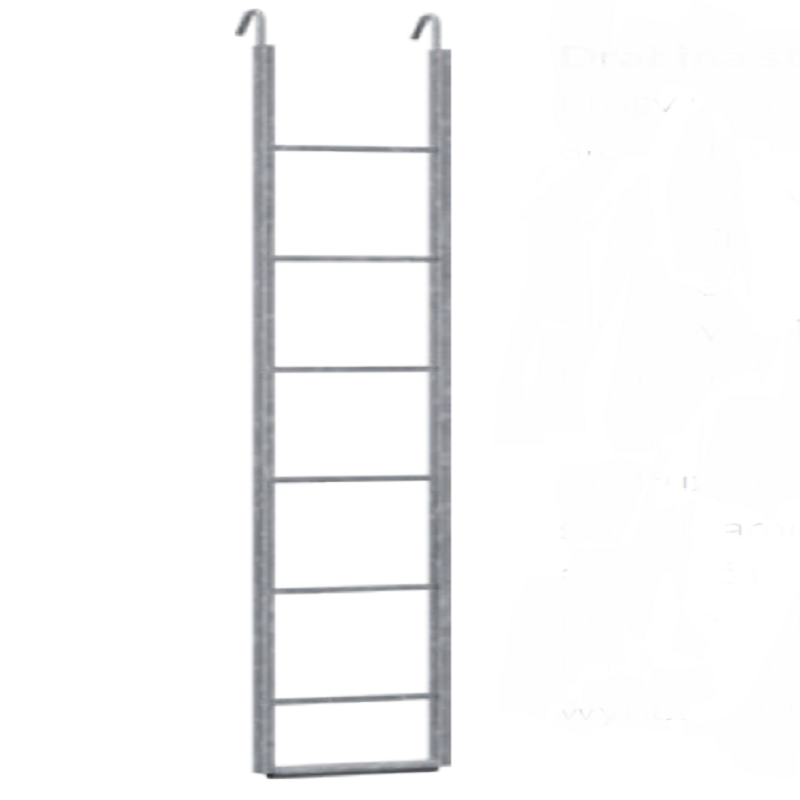

A steel hook ladder

The steel hook ladder is an element which together with the communication bridge aluminum-plywood 157 or 207 can m be the equipment of the riser communication as well as enable entrance to the first floor scaffolding less than 2.0 m high (as a leaning ladder mounted to
pipes with scaffold couplings). The ladder stringers are connected rungs with an axial spacing of 270 mm, and the whole is completed with two hooks for suspensions under the platform communication. Spacing in the light is 300 mm.

OVERALL WIDTH : 340 mm
EXTERNAL HEIGHT : 2120 mm
SCALES : 7.5 Kg
