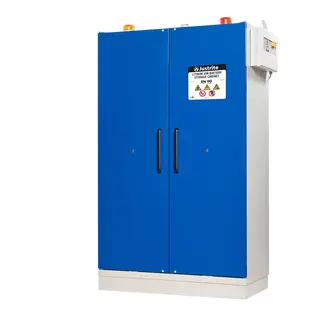

15 MINUTES-SECURITY CABINETS FOR LITHIUM BATTERIES-2095 x 1000 x 600

15 MINUTES-SECURITY CABINETS FOR LITHIUM BATTERIES-2095 x 1000 x 600

Fire-resistant construction(from inside to outside) certified EI 15 min type A1, in accordance with standard NF EN 13501-1.

COMPLIANCE

• REGULATION - EU -2023/1542 - Article 42 - 4. Storage or transport conditions ensure the conformity of batteries.
• Non-flammable insulating panels, classified A1 according to NF EN ISO 1182, between the walls.
• Fireproof construction certified EI 15 min type A1, according toNF EN 13501-1.
• Standardized warning labels in accordance to ISO 3864, ISO 7010 standards and to European Directive 92/58/EEC.

VENTILATION

All cabinet models are equipped with ventilation holes, allowing them to be connected to a ventilation system. Forced ventilation is strongly recommended to avoid internal heat build-up or
stagnation of vapors in case of electrolyte leakage. This can be connected either to an external outlet or to a ventilation or filter box.

ALARMWI DESCRIPTION

This Wi-Fi smoke detector alerts you if there is smoke or excessive heat build-up. It alerts you with an audible alarm for people nearby and an alert sent to your phone wherever you are.
• Easy to connect to your Wi-Fi, for alerts on your phone.
• Audible alarm to warn as many people as possible.
• Threshold of detection: 37 °C.
• Powered by 2x AA/LR6 battery.

FEATURE

• Double wall 12/10 steel construction.
• Mineral fibre insulation 20 mm thick in accordance to NF EN ISO 1182.
• Locking system
• Reduce the risk of fire and explosion
• Holes for the connection to the ventilation

DESCRIPTION

• Cabinet Material Sheet steel 12/10th and inner body built in melamine
• External dimensions H x W x D (mm)2095 x 1000 x 600 (2)
• Internal dimensions H x W x D (mm) 1945 x 950 x 550
• Load capacity per shelf (kg) 50
• Nb of Doors 2
• Doors type Swing Doors
• Hinges Left and right
• Door closure Automatic Closure
• Perforated shelves 5
• Weight (Kg) 174
• Pre-Equipped with 5 x Perforated Shelf + Fire Extinguisher With Automatic Triggering at 79°C per Thermal Bulb for Lithium

 To further secure the storage ,Optional solutions, Accessories Recommended - FILTRATION OR VENTILATION BOXES

• Perforated shelves with 50 KG load capacity (Ref. E04LI or E06LI)
  • Removable Containment sump at the bottom (Ref. GL04 or GL06)
• Rack of 9 electrical outlets

• Breakthrough for cable entry with fire-resistant cable

RECOMMANDATION

• For Simple battery storage: Cabinet equipped with perforated shelves and a Containment sump.
• For Storage and charging of batteries: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks .
• For Simple battery storage + advanced protection system: Cabinet equipped with perforated shelves with  a Containment sump + optional advanced protection system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable passthrough)..
• For Storage and charging of batteries + advanced protection system: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks + optional advanced protection
  system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable pass-through)

In the event of a fire, the cabinets must not be moved except by the fire brigade.
